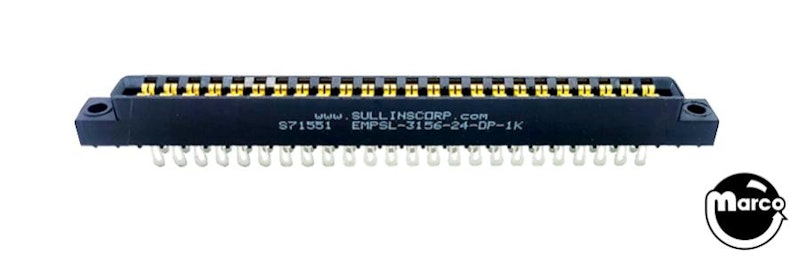

Connector - 48 pin double side edge

#EMPSL-3156-24-DP-1K
Connector - 48 pin double side edge
Availability
In Stock
Price
$15.99
Order

⚠ CALIFORNIA WARNING: This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product details

48 circuit double sided circuit board female edge connector in 2 x 24 layout.

Used on early Gottlieb solid state pinball machine systems between the CPU board and the driver board labeled as A1-J4 on the CPU board, and A3-J1 on the lamp & solenoid driver board.

Used in multiple Gottlieb games.

Reference:

  • EMPSL-3156-24-DP-1K


0.5 oz
