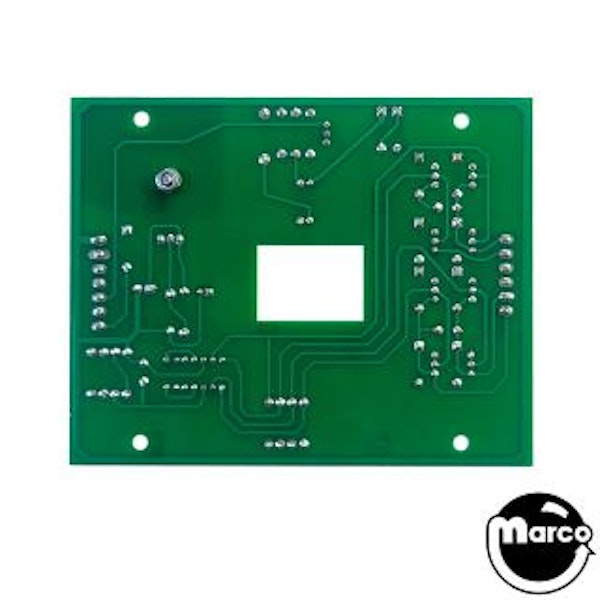

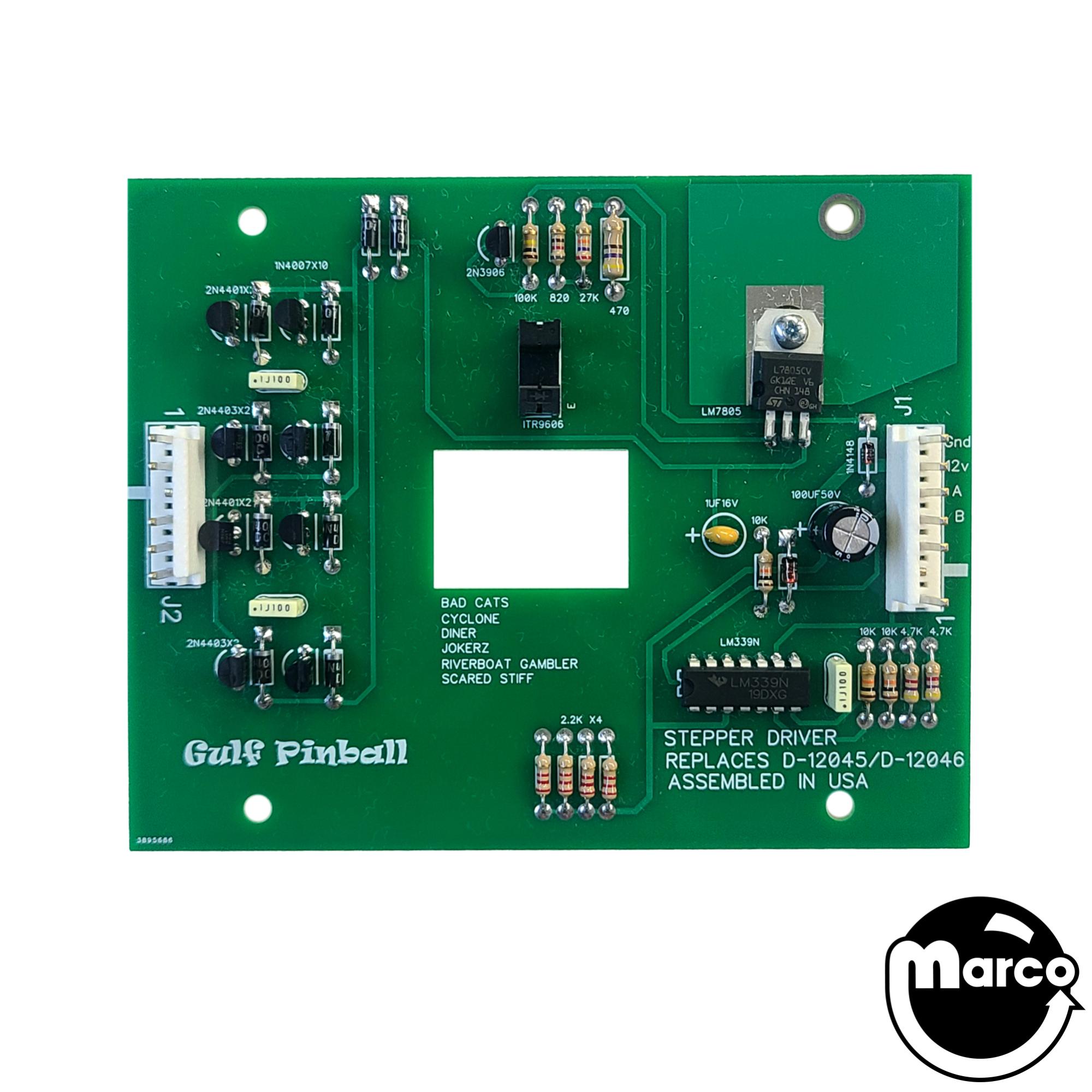

Stepper motor board

Newly designed stepper motor driver PCB found on many Williams System 11 and WPC pinball games.

Features

• Advanced motor control provides for more torque power

• Integrated braking keeps motor cool when motor is idle

• Auxiliary 12V power port for after market mods

• Status LEDs for easy diagnostics

• User serviceable with transistors that are replaceable with thru-hole equivalents.

Reference:

• D-12046 stepper motor board assembly

• D-12045 Motor control board (RIVERBOAT GAMBLER p.66,67)

• 5768-12270-00 circuit board
