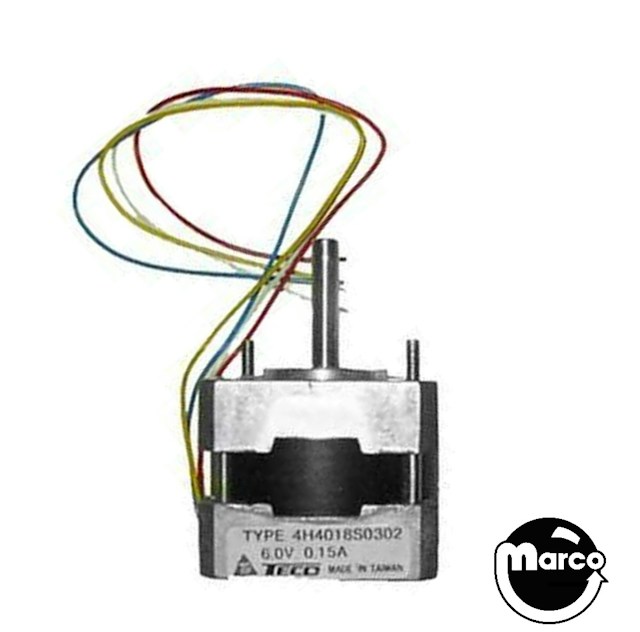

6 volt 0.15 amp stepper motor B-12088
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
6 volt 0.15 amp stepper motor used in:
Reference:
14-7948 motor 3102
14-7948-1 motor No.100
A-12088 motor and connector assembly
Replaces B-12088 motor and connector assembly
D-12046 Seafood Wheel stepper motor control board
5792-10847-06 connector
Teco 4H4018S0302
INSTALLATION INFORMATION:
The wire colors may vary from the original stepper motor. The new wire color pairs are:
Phase 1 circuit: Red A+ and White A-
Phase 2 circuit Blue B+ and Yellow B-
6-pin connector pin numbers on the mystery wheel control board:
1-yellow 2-blue 3-key 4-not used 5-white 6-red
Select manufacturer to view game compatibility
Newly designed stepper motor driver PCB found on many Williams System 11 pinballs.
Connector - 6 position insulation displacement style with passthrough...

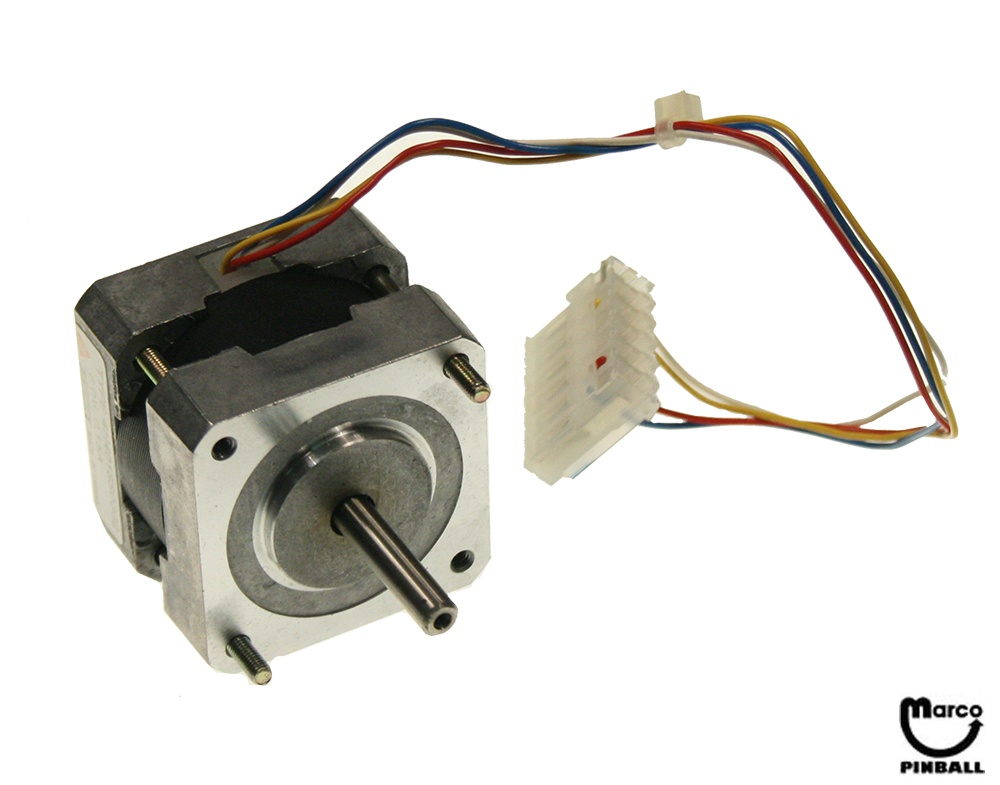

Stepper motor & cable assembly. Replaced by 14-7948
