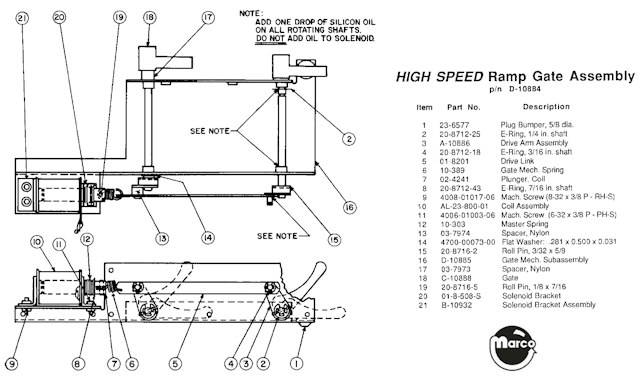

HIGH SPEED (Williams) Ramp gate assembly

Name: HIGH SPEED (Williams) Ramp gate assembly
SKU: D-10884
Price: 167.99 USD
Availability: OutOfStock

#D-10884Out of Stock

Williams HIGH SPEED pinball machine ramp gate assembly.

$167.99

This product is not currently available.

Product Details

Williams HIGH SPEED pinball machine ramp gate assembly.

Ships un-assembled.

Reference:

D-10884

Product Compatibility

Select manufacturer to view game compatibility

Shop parts in this kit

HIGH SPEED (Williams) Drive link

#01-8201In Stock

HIGH SPEED (Williams) Drive link

$7.49

HIGH SPEED (Williams) Ramp bracket

#01-8224For Reference

HIGH SPEED (Williams) Ramp bracket

Bracket - coil mounting 1B-8-508-S

#01-8-508-SIn Stock

Bracket - coil mounting

$4.99

Plunger 2.0 inch with groove

#02-4241In Stock

Plunger Reference: 02-4241

$5.99

Spacer - nylon 6.9mm x 12.9mm x 7.5mm

#03-7973In Stock

Spacer - nylon 6.9mm x 12.9mm x 7.5mm

$0.49

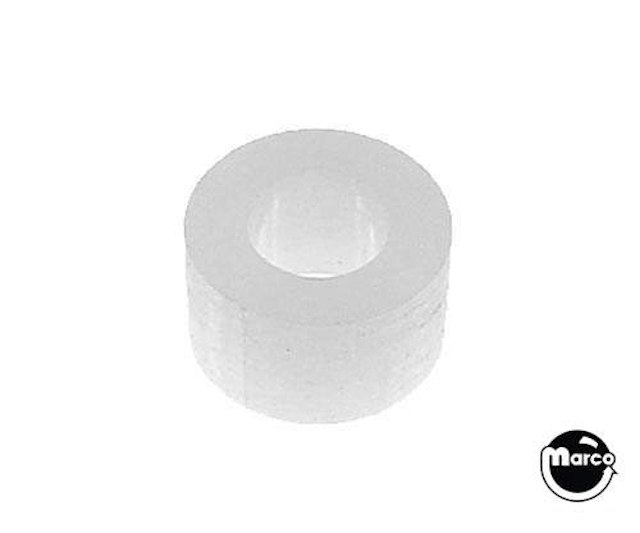

Spacer - nylon

#03-7974For Reference

spacer - nylon

Spring - compression 10A-303 10-430

#10-303In Stock

Spring - compression master

$0.79

Spring - extension diverter plunger

#10-389In Stock

Spring - extension diverter plunger

$1.39

E-clip for 3/16 inch shaft 270-5001-00 P-6316-4

#20-8712-18In Stock

E-clip or e-ring commonly used on many 3/16" mechanism shafts

$0.29

E-clip for 1/4 inch shaft 20A-8712-25 270-5002-00 270-5004-00 P-6316-6 FA-682

#20-8712-25In Stock

E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00

$0.29

E-clip for 7/16 inch Shaft 270-5005-00

#20-8712-43In Stock

E-clip or e-ring commonly used on many mechanisms.

$0.49

Roll pin 3/32 x 5/8 inch 20A-8716-2

#20-8716-2In Stock

3/32" diameter x 5/8" length slotted spring roll pin. Reference: 20...

$0.19

Roll pin 1/8 x 7/16 inch 20A-8716-5 P-1637-59

#20-8716-5In Stock

1/8" diameter x 7/16" length slotted spring roll pin. Reference:...

$0.19

Rubber bumper plug black 23-6577

#38-6577In Stock

Black rubber grommet, bumper plug. Reference Numbers: Williams No.2...

$0.89

Machine Screw 6-32 x 3/8" p-ph-sems 232-5201-00 SC00100-03

#4006-01003-06In Stock

Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...

$0.19

Machine Screw 8-32 x 3/8 inch p-rh-s USE 4008-01003-06

#4008-01017-06For Reference

Machine screw 8-32 thread x 3/8 inch long phillips round head. Replaced by 4008-01003-06

Washer .281 x .500 x .032 inches

#4700-00073-00In Stock

Zinc plated steel

$0.39

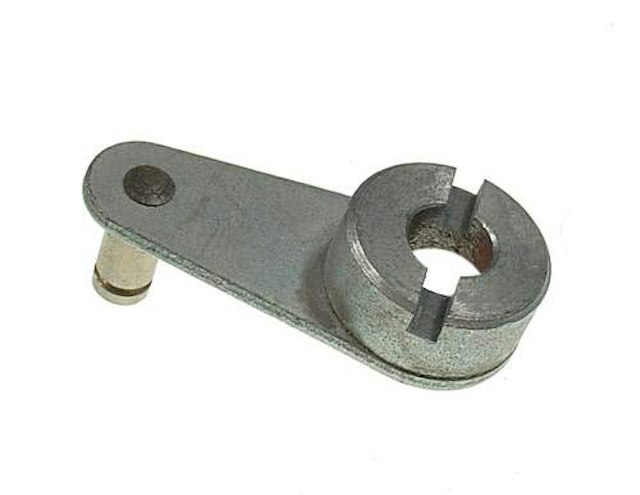

Diverter arm

#A-10886For Reference

Diverter crank arm

Coil - solenoid with diode left offset

#AL-23-800-01In Stock

Coil.

$19.99

Coil stop with pem nuts

#B-10932Out of Stock

Coil stop with pem nuts

$12.99

HIGH SPEED (Williams) Ramp gate arm

#C-10888For Reference

HIGH SPEED (Williams) Ramp gate arm
