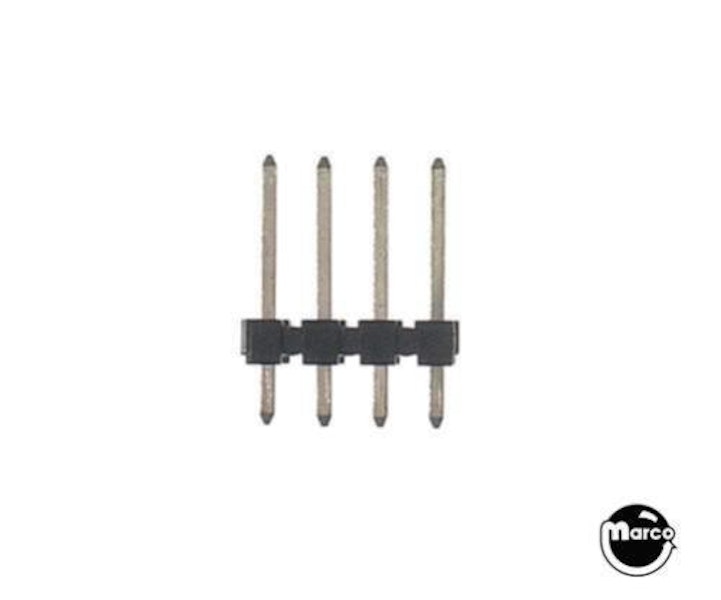

.156 inch 4 Position Male Header. Replaces 5791-12273-04
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
.156 inch spacing 4 position male Molex header utilized in many Bally and Williams boards.
Used on the following boards:
Dual H-Drive Motor Controller w/Bracket: A-19242 and A-19242-1; positions J2, J3
Bridge Driver Board A-15946: position J2
High Current Driver Assembly: A-21568, position J2
DC Motor Control Board: A-16120, position J2
Opto Ramp Switch Board Assembly: A-13901 and A-13901-3, position J5
Dual Relay Motor Driver Assembly: A-20532, positions J2, J3
Reference:
CM15604
Replaces 5791-12273-04
Select manufacturer to view game compatibility
Opto ramp 3 switch board
.156 inch 5 position male Molex header
Diode - 400 volts 1 amp XO-254

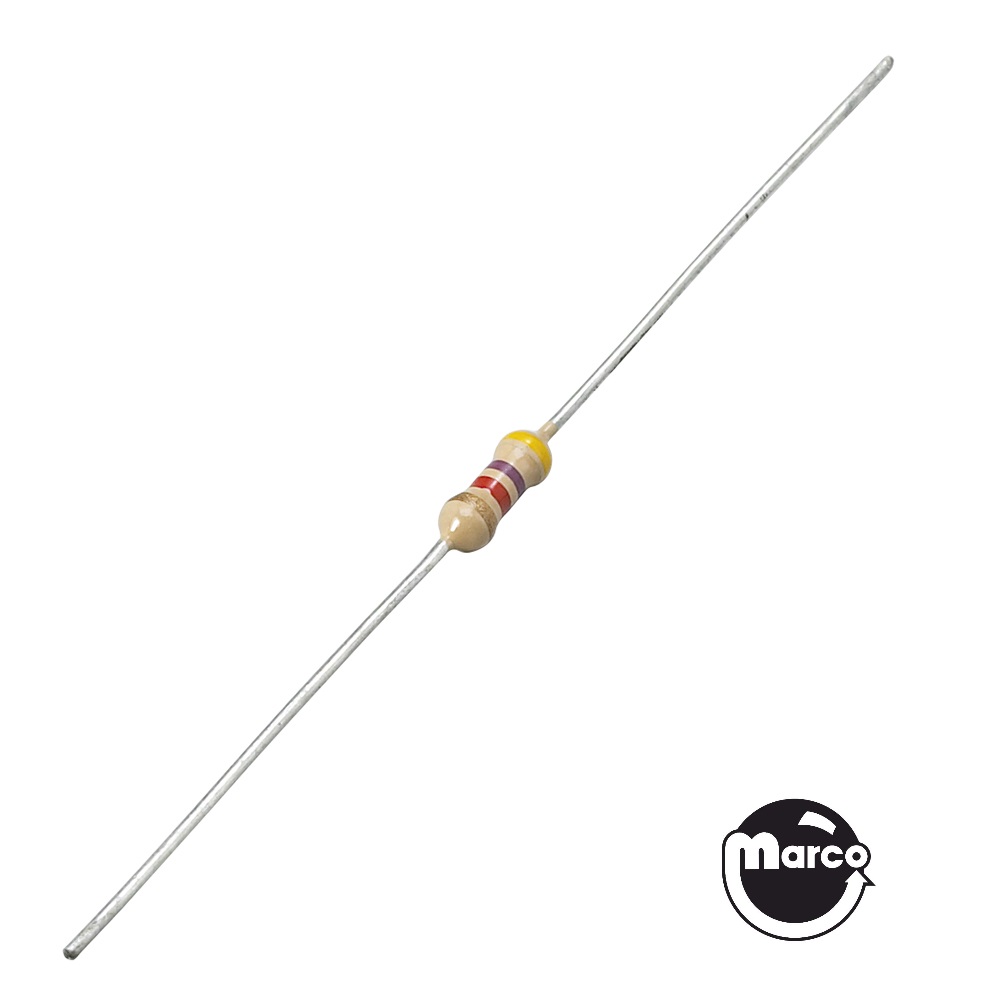

680 ohm 1/2 resistor5010-09061-00
Integrated circuit 3a DMOS bridge driver for motor control.

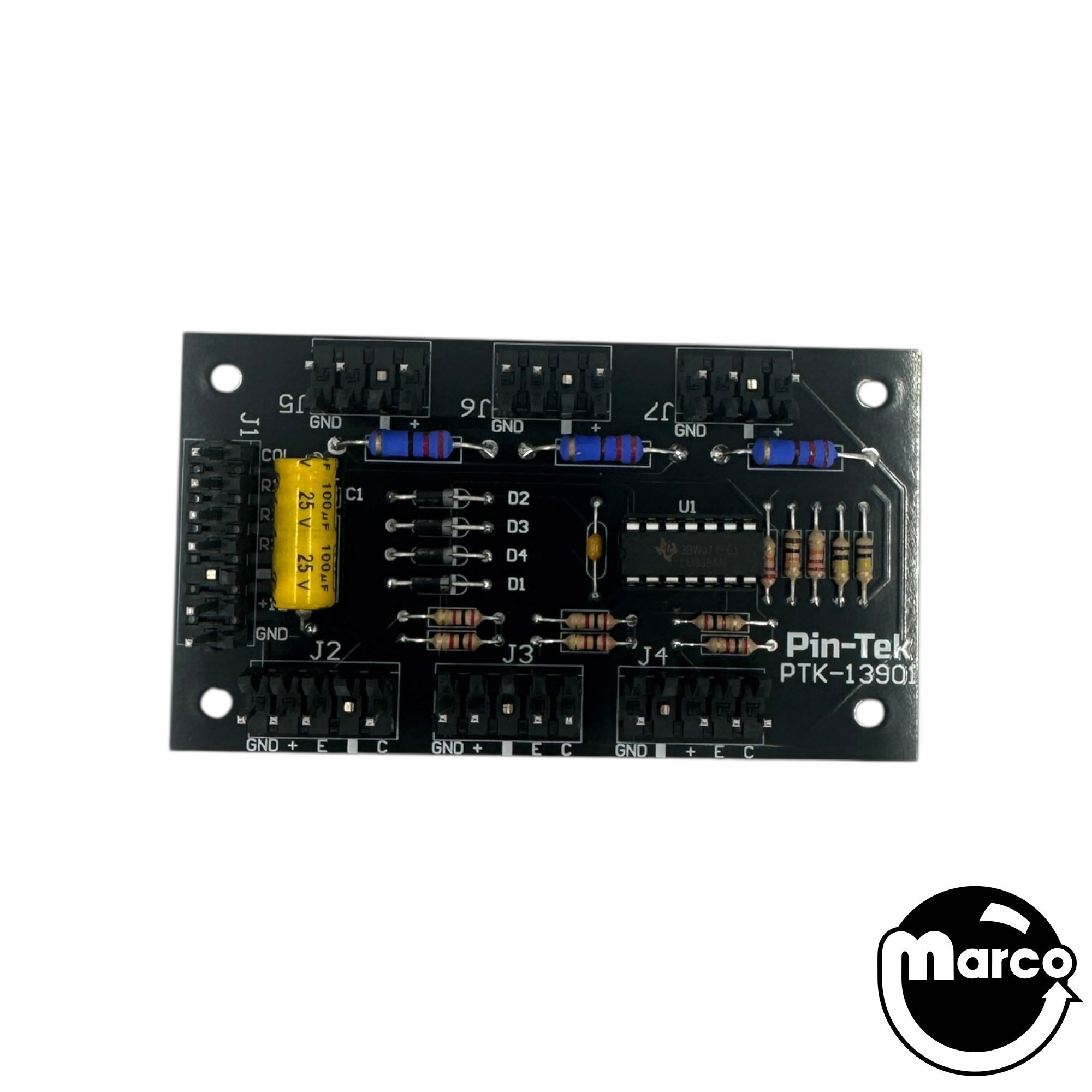

Pin-Tek Opto ramp 3 switch board
