Pin-Tek Opto ramp 3 switch board
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

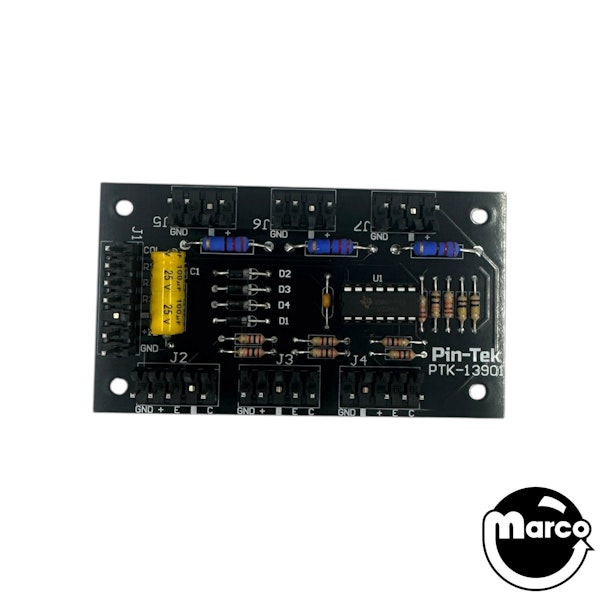

Pin-Tek 3 opto PCB (also referred to as a ramp opto board) used on many Williams WPC pinball games
This opto ramp switch board assembly is a substitute for the following part numbers:
Reference:
Pin-Tek (PTK): PTK-13901
Bally (BLY): A-13901
Bally (BLY): A-17042
Williams (WMS): A-13901
Williams (WMS): A-17042
Williams (WMS): 5768-12686-00 pcb
Williams (WMS): 5010-12733-00 (3) resistor 220 ohm 1w 5%
Williams (WMS): 5040-12298-00 (1) capacitor 100M 40V-10+50 axial
Williams (WMS): 5370-12272-00 (1) LM339 quad comparator
Williams (WMS): 5791-12273-04 (1) 4h str sq lck .156
Williams (WMS): 5791-12273-05 (2) 5h str sq lk .156
Williams (WMS): 5791-12273-07 (1) 7h str sq lck .156
Select manufacturer to view game compatibility
