Connector rebuild kit - Williams WPC CPU board
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

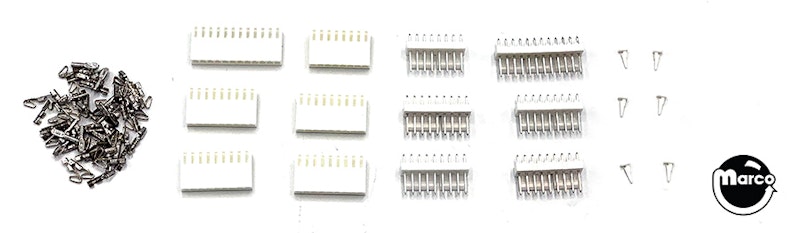

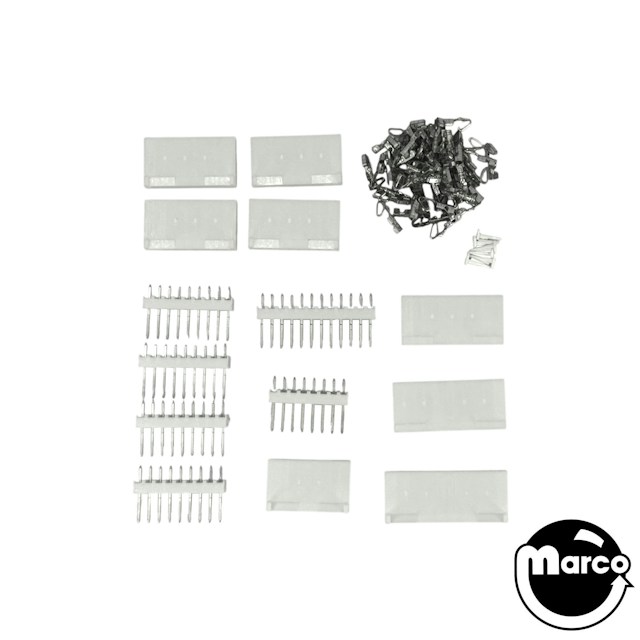

Connector rebuild kit for WPC A-12742-XXXXX series CPU boards.
Kit Components:
1x Connector .100" 8 position female
4x Connector .100" 9 position female
1x Connector .100" 10 position female
1x Connector .100" 11 position female
1x Connector .100" 12 position female
1x Connector .100" 12 pin male
4x Connector .100" 9 pin male
1x Connector .100" 8 pin male
6x Connector Key housings .100"
56x Crimp Terminal .100"
Comes with 2 female housings that can be cut to fit in the 13pin male connector on the board. Trim the sides of the connectors so it matches with the game's particular housing & key formation.
Used in the following games:
Williams WPC95 System CPU board with flipper circuitry.
A-12742-20001 WPC cpu Bally HARLEY DAVIDSON
A-12742-20003 WPC cpu GILLIGANS ISLAND
A-12742-20004 WPC cpu PARTY ZONE
A-12742-20006 WPC cpu DR WHO
A-12742-20013 WPC cpu BLACK ROSE
A-12742-20018 WPC cpu CREATURE FROM THE BLACK LAGOON
A-12742-20020 WPC cpu JUDGE DREDD
A-12742-50001 WPC cpu Bram Stoker DRACULA
A-12742-50002 WPC cpu THE MACHINE
A-12742-50003 WPC cpu FUNHOUSE
A-12742-50004 WPC cpu GETAWAY
A-12742-50005 WPC cpu FISH TALES
A-12742-50012 WPC cpu HURRICANE
A-12742-50013 WPC cpu TERMINATOR 2
A-12742-50017 WPC cpu INDIANA JONES
A-12742-50018 WPC cpu WHITE WATER
A-12742-50020 WPC cpu TWILIGHT ZONE
A-12742-50022 WPC cpu POPEYE
A-12742-50023 WPC cpu STAR TREK THE NEXT GENERATION
A-12742-50028 WPC cpu DEMOLTION MAN
A-12742-50038 WPC cpu ADDAMS FAMILY GOLD
A-12742-60001 WPC cpu SLGFEST
A-12742-60017 WPC cpu HOT SHOTS BASKETBALL
A-12742-60020 WPC cpu PINBALL CIRCUS
A-12742-60022 WPC cpu ADDAMS FAMILY
Reference:
A-12742
Select manufacturer to view game compatibility

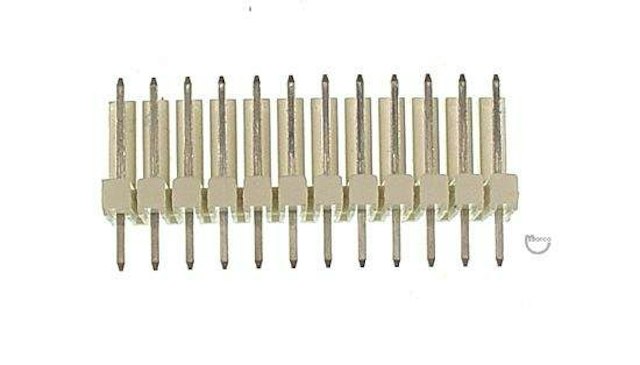

Connector 12 pin male .100 inch

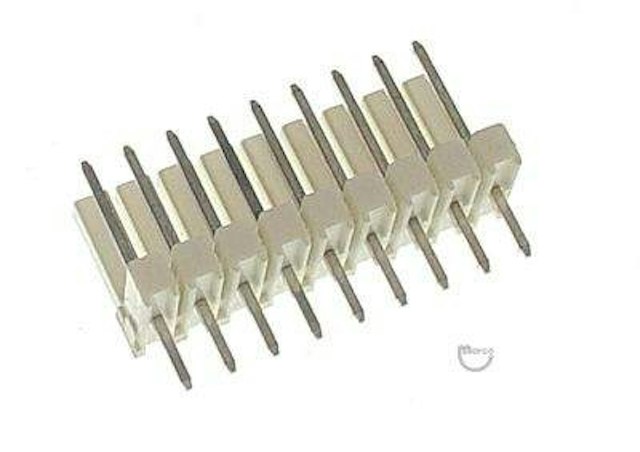

Connector 9 pin male .100 inch

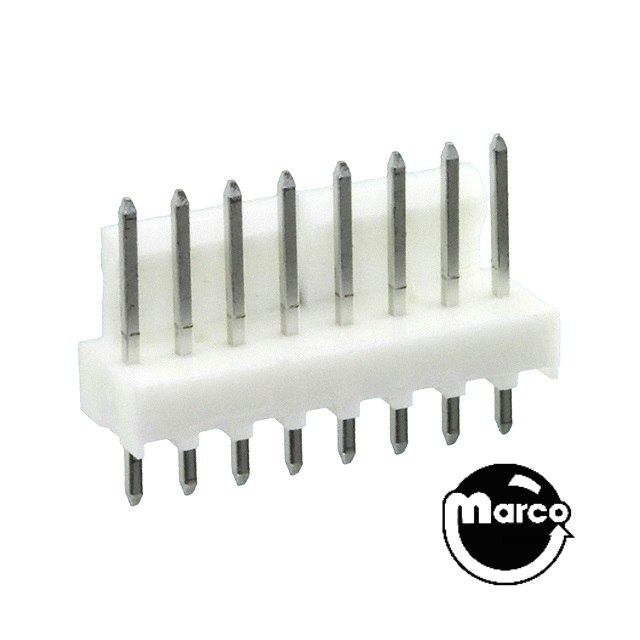

Connector 8 pin male .100 inch rail 22-03-2081
