Capacitor rebuild kit - Data East power supply 520-5047-00/01/02
Radial electrolytic capacitor 13 piece set for Data East pinball Power Supply boards 520-5020-01, and 520-5020-03. Not for use with 520-5020-03 (available under related items below). Contains radial SNAP capacitor - 5040-12729-00 instead of C4700M35VR.
Many common power supply problems are fixed by replacing all of these electrolytic capacitors that have dried up over many years of operation.
We substitute higher voltage rating capacitors in the kit whenever possible for superior performance and reliabilty.
Note about C10,C11 capacitors. Your power supply may have a different value capacitor installed than what the schematic lists. Included is a higher value replacement, which will perform fine in place of what the schematic calls for.

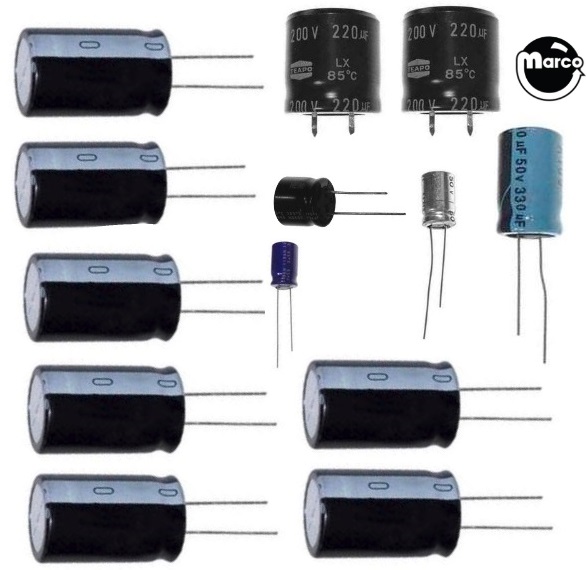

Kit includes the following:
(1) - 1,000uf/25v (C1)
(4) - 4,700uf/35v SNAP (C4)
(2) - 220uf/200v (C10, C11)
(2) - 22uf/50v (C14, C15)
(1) - 150uf/100v (C8)
(1) - 100uf/50v (C2)
(1) - 330uf/50v (C7)
(1) - 47uf/100v (C3)
Reference:
520-5047-00
520-5047-01
520-5047-02
Select manufacturer to view game compatibility

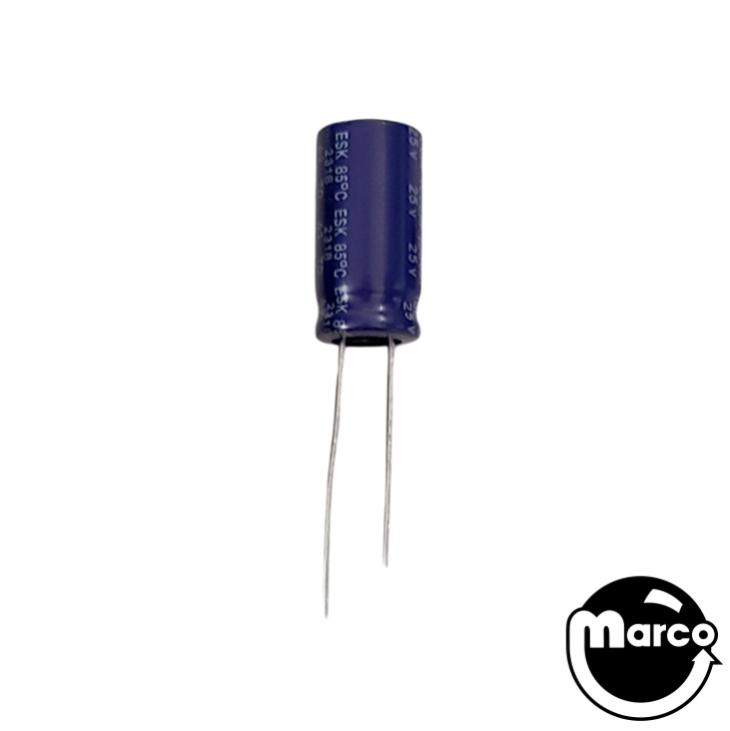

Capacitor 1000 uF 25V radial
Capacitor 4700 uF 35v radial snap
Capacitor 220 uF 200 v radial

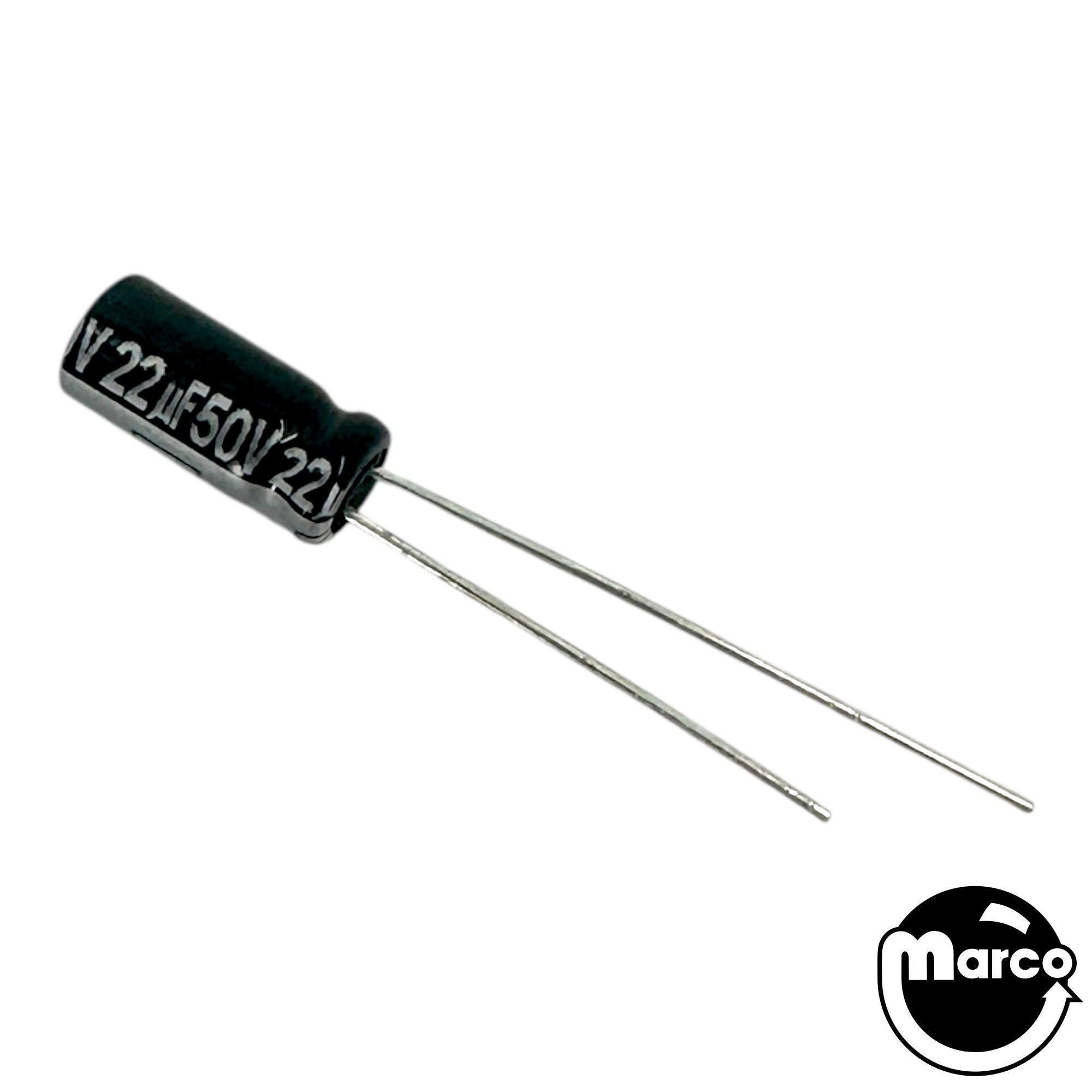

Capacitor 22 uF 50v radial

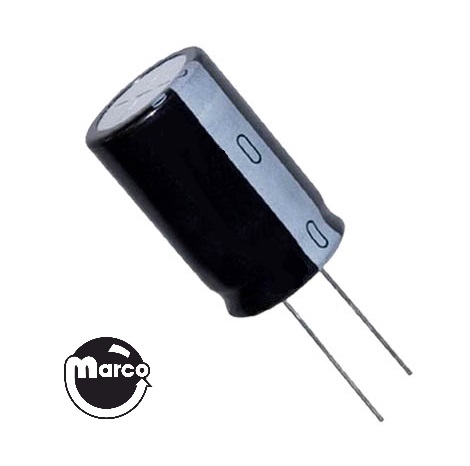

Capacitor 150 uF 100v radial
Capacitor 100 uf 50v radial

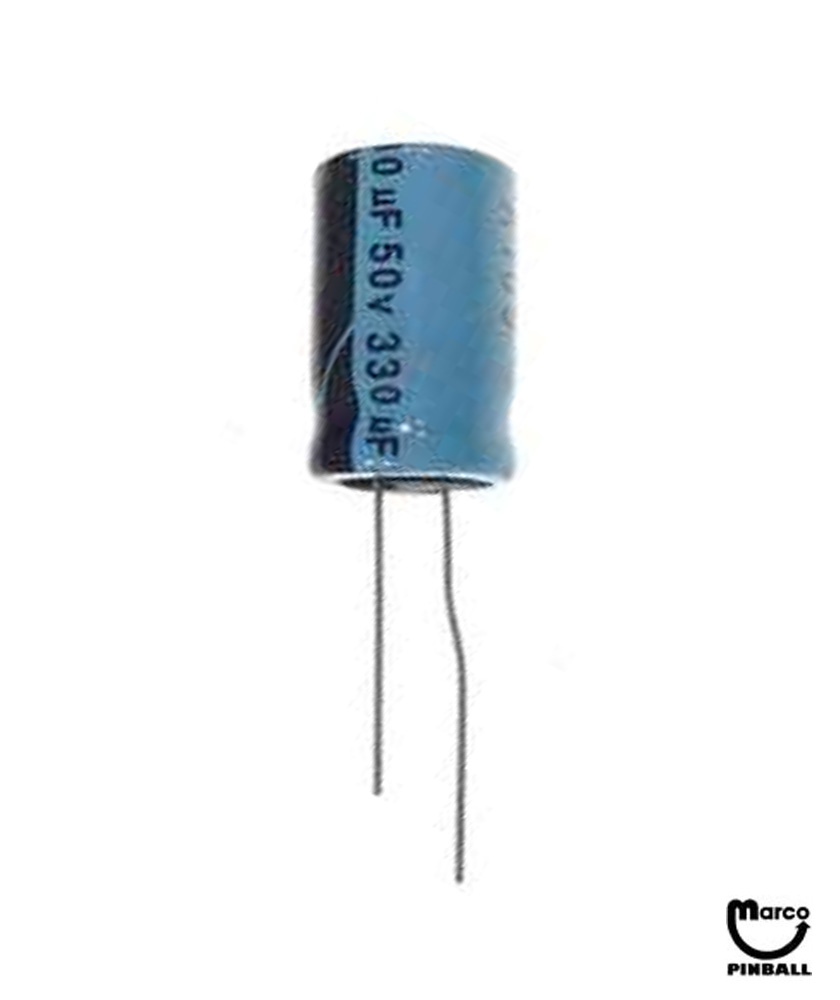

Capacitor 330 uf @ 50 volt measures 1" x 1/2" diameter with radial leads f...

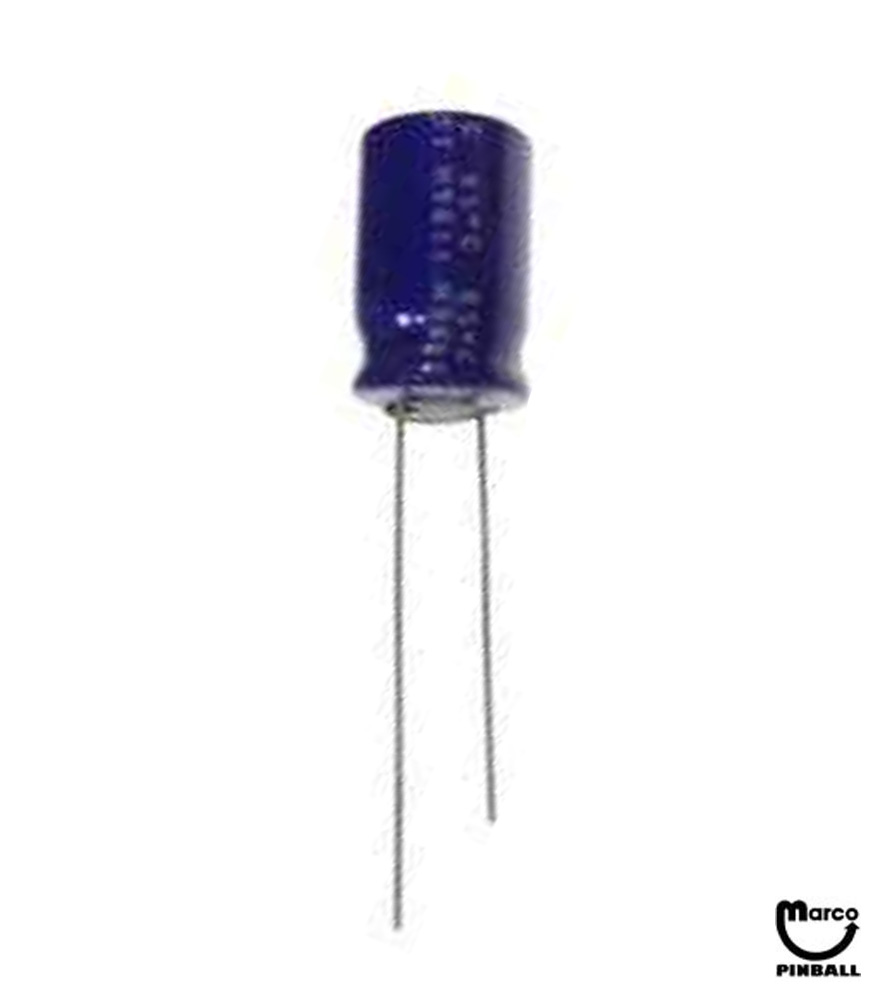

Capacitor 47 uf @ 100 volts measures 5/8" tall x 7/16" diameter.
