Capacitor kit - Data East power supply 520-5047-00/01/02

#CAPKITDE-02
Availability
In Stock
Price
$24.99
Order
Product details

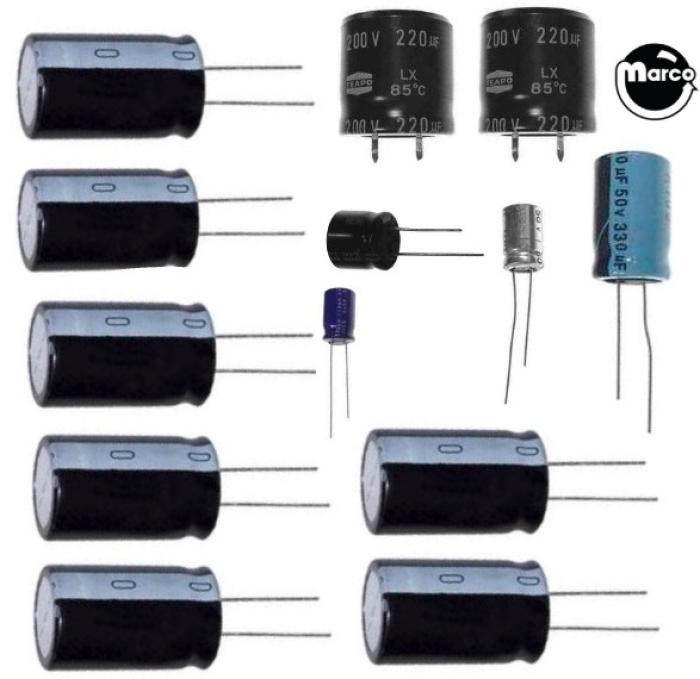

Capacitor rebuild kit - Data East power supply 520-5047-00/01/02

Radial electrolytic capacitor 13 piece set for Data East pinball Power Supply boards 520-5020-01, and 520-5020-02. Not for use with 520-5020-03 (available under related items below).

Many common power supply problems are fixed by replacing all of these electrolytic capacitors that have dried up over many years of operation.

We substitute higher voltage rating capacitors in the kit whenever possible for superior performance and reliabilty.

Note about C10,C11 capacitors. Your power supply may have a different value capacitor installed than what the schematic lists. Included is a higher value replacement, which will perform fine in place of what the schematic calls for.

Kit includes the following:

  • (1) - 1,000uf/25v (C1)
  • (4) - 4,700uf/35v (C4)
  • (2) - 220uf/200v (C10, C11)
  • (2) - 22uf/50v (C14, C15)
  • (1) - 150uf/100v (C8)
  • (1) - 100uf/50v (C2)
  • (1) - 330uf/50v (C7)
  • (1) - 47uf/100v (C3)

Reference:

  • 520-5047-00
  • 520-5047-01
  • 520-5047-02
