LED score display replacing the original DMD.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

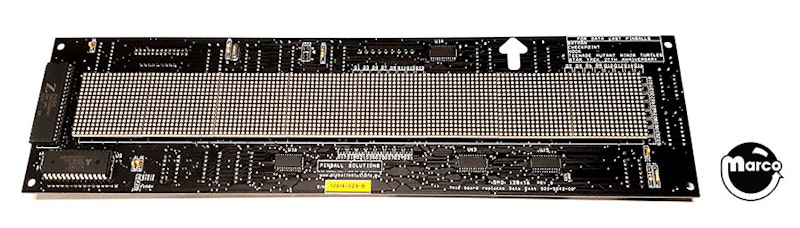

New 128 x 16 LED dot matrix display module for Data East small dot matrix display pinball machines.
Replaces Data East part No.520-5042-00 display board. For use in these Data East pinball machines:
HOOK 520-5042-HK
STAR TREK 25th ANNIVERSARY 520-5042-ST
CHECKPOINT 520-5042-CP
BATMAN 520-5042-BM
TEENAGE MUTANT NINJA TURTLES 520-5042-TT
Beautiful new LED Dot Matrix Displays eliminate unreliable plasma displays forever!
No more short life expectancy, fragile, high voltage dependent displays required for your game. Drop in replacement requires no high voltage to operate and installs in minutes using only a screwdriver.
Includes foam light shield frame and instructions.
Installation:
Remove the old displayIf you are transferring your old game eprom, install in socket U2.
For CHECKPOINT and TEENAGE MUTANT NINJA TURTLES the eprom is smaller and should be aligned away from the socket notched end with 2 blank pins exposed.Place the new DMD LED display on the speaker/display panel. Fasten with the nuts. Connect the power cable and 26 pin flat ribbon cable to the DMD LED display. Switch the game ON and enjoy!
Reference:
PS-DMD16
Cherry 012-4152
Cherry 0001-4176
Data East 520-5042-00
520-5042-HK
520-5042-ST
520-5042-CP
520-5042-BM
520-5042-TT
Select manufacturer to view game compatibility

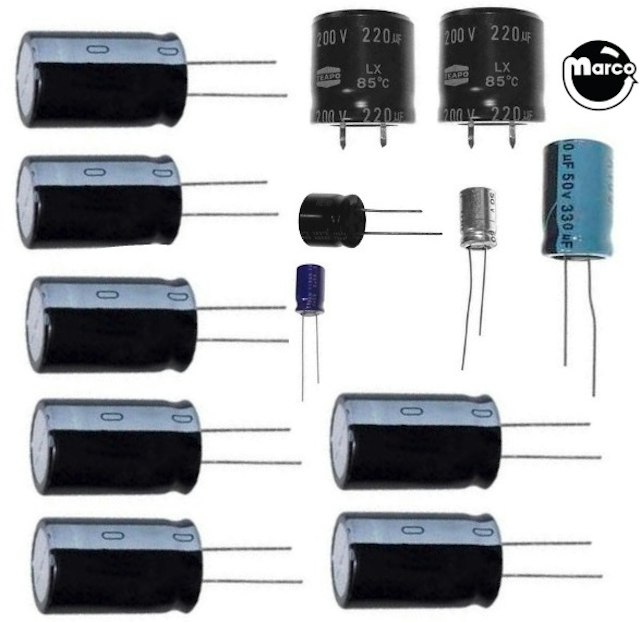

Capacitor kit - Data East power supply 520-5047-00/01/02

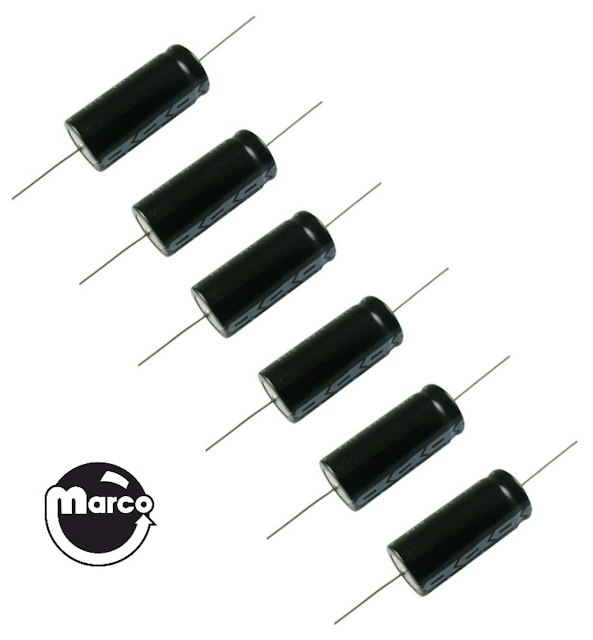

Capacitor kit - Data East / Sega power supply 520-5047-03
