Opto board drop target 3 bank

#C-13205-1

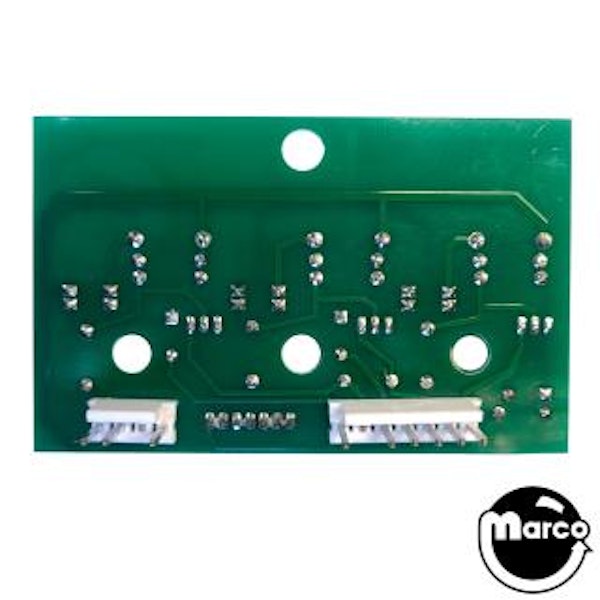

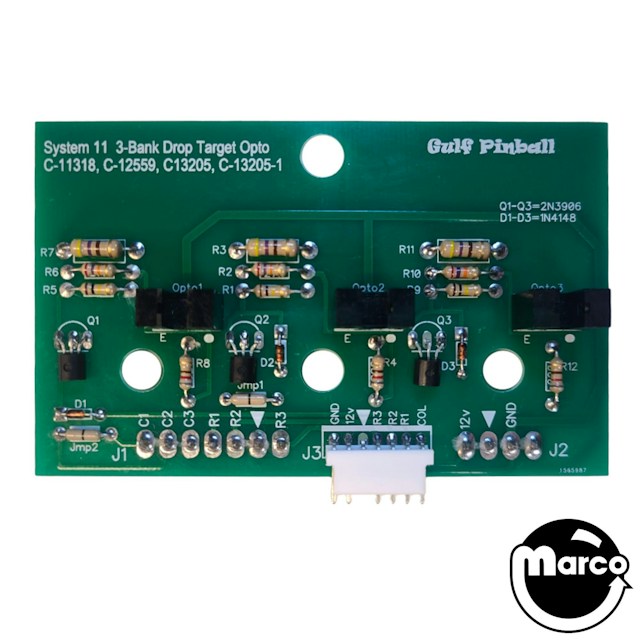

New 3 bank Universal Drop Target opto board is a one-size-fits-all, plug and play solution for the many different versions of Williams System 11 pinball machine 3 bank drop target assemblies.

Due to design and manufacturing changes over the years, not all System 11 drop target boards were interchangeable. This makes finding a replacement board difficult and can require modifying the board to make it work.

This new universal board takes the guess work out of board selection. It replaces all of the original 3 bank opto board Williams part numbers listed below:

Original part #s:

  • C-13205-1
  • Replaces C-11318
  • Replaces C-12559
  • Replaces C-13205

The new board has connectors for all early Williams System 11A pinball machines thru later System 11C machine 3 bank drop target boards.

NOTE: use in ROLLERGAMES requires changing the header at position J1 to a 90 degree style bent header due to the close proximity to a pop bumper.

Features:

  • Lower current usage and heat generation
  • Larger circuit board traces and pads for better reliability and durability
  • Stiffer board mitigates vibration failures

Replaces original part #s:

  • C-11318 Drop target 3 bank opto board assembly
  • C-12559 Drop target 3 bank opto board assembly
  • C-13205 Drop target 3 bank opto board assembly
  • C-13205-1 Drop target 3 bank opto board assembly
  • 5768-12069-00 Drop target 3 bank opto pcb
  • 5768-12546-00 opto pcb

See INSTALLATION PHOTOS with front and side views.



1.48 oz

Overall Rating:

$49.99

In Stock
