Miniature snap action switch - 125VAC - 10A - 75gf with 3 .25 terminals and no actuator...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

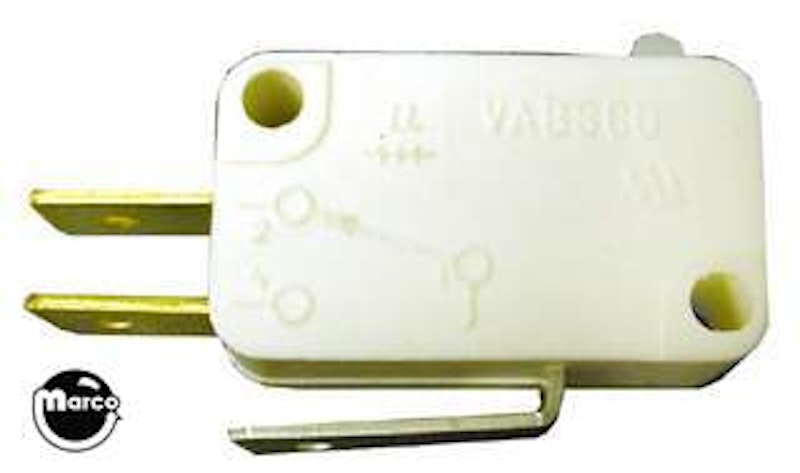

Miniature snap action 10 amp switch with 0.250 inch (1/4 inch) slide-on lug terminals. 75 gram maximum operating force.
Specifications:
Max Voltage: 125VAC / 30 VDC
Max Current: 10A
Operating Force: 75gf
Contact Configuration: Single Pole, double throw (SPDT)
Terminal Type - Common: Straight - Common .25" (6.35mm) quick connect
Terminal Type - Normally Open: Straight - .25" (6.35mm) quick connect
Terminal Type - Normally Closed: Straight - .25" (6.35mm) quick connect
Reference:
BR10-250
