Miniature Snap Action Switch with no lever

Name: Miniature Snap Action Switch with no lever
SKU: BR10-187
Price: 5.99 USD
Availability: InStock

#BR10-187In Stock

Miniature snap action switch - 125VAC - 100ma - 173gf with 3 .187 terminals and no actuator...

$5.99

Quantity:

CALIFORNIA WARNING

This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

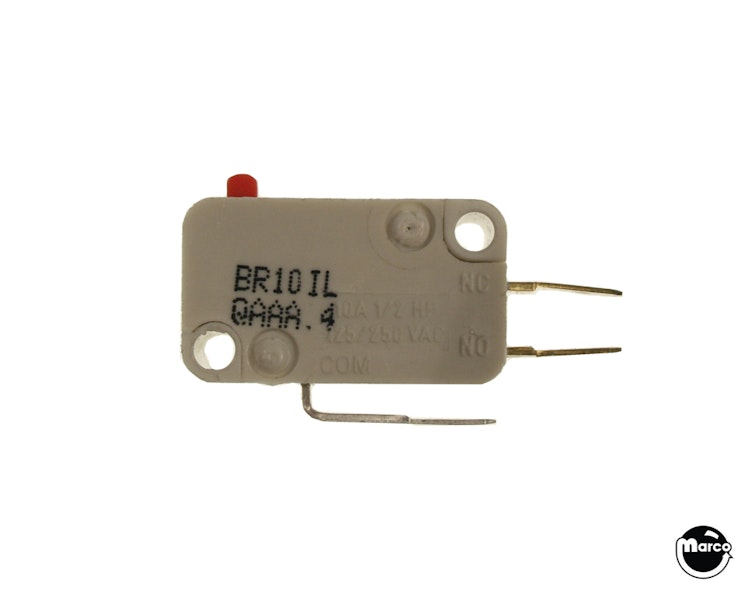

Miniature snap action switch, rated at 100 ma with 3 smaller 0.187 inch (3/16 inch) Lug terminals. With no lever.

Specifications:

Max Voltage: 125VAC / 30 VDC
Max Current: 100mA
Operating Force: 173gf
Contact Configuration: Single Pole, double throw (SPDT)
Terminal Type - Common: Straight - Common .187" (4.7mm) quick connect
Terminal Type - Normally Open: Straight - .187" (4.7mm) quick connect
Terminal Type - Normally Closed: Straight - .187" (4.7mm) quick connect

Reference:

#BR10-187
