STAR WARS E1 (Williams) single drop sub-assembly
#A-23407-S

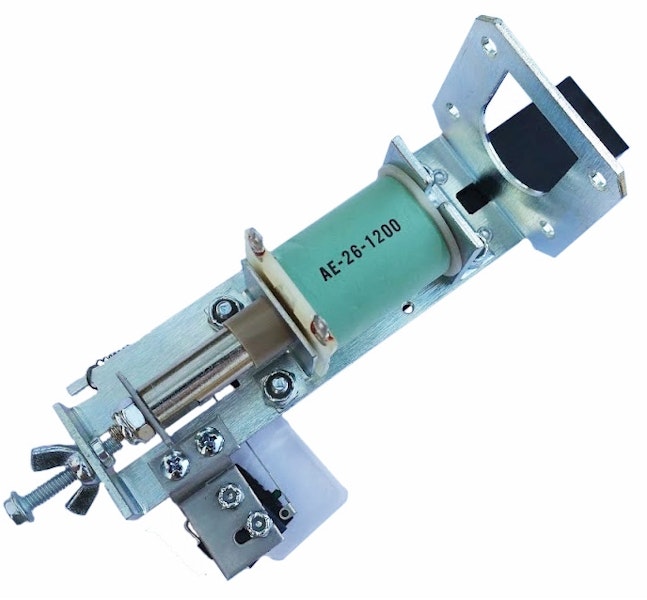

Williams 1 single drop target sub-assembly kit with AE-26-1200 coil.
Reference:
- A-23407 complete assembly
- 01-10183 (1) bracket switch
- 01-8240 (1) plate-nut #2-56
- 01-8413 (1) bracket coil mtg
- 01-8600 (1) insulator
- 01-8647-R (1) actuator
- 03-7066-4 (1) tubing-coil
- 03-8034 (1) stop-single target
- 03-8630 (1) guide actuator
- 03-8750 (1) target-flush
- 07-6688-17N (2) rivet 5/32X1/8 nickel
- 10-363 (1) spring-extension
- 10-392 (1) spring-extension
- 10-433 (1) spring-extension
- 16-8797-10 (1) coil tape-9/16 wide
- 20-8712-25 (2) e ring 1/4 shaft
- 4002-01105-10 (2) ms 2-56x5/8 p-ph-s
- 4006-01003-04 (6) ms 6-32X1/4 p-ph-s
- 4008-01021-06 (1) ms 8-32X3/8 p-rh-brass
- 4010-01025-14 (1) ms 10-32X7/8 p-rh
- 4408-01119-01 (4) nut 8-32 esna/ntm
- 4700-00003-00 (1) fw .125X.281X.032
- 4700-00072-00 (4) fw .265X.500X.032
- 4700-00089-00 (1) fw .172X.437X.062 brass
- 4701-00003-00 (1) lw #8 split
- 5070-09054-00 (1) diode-1N4004 1.0a
- 5647-12693-31 (1) switch sub mini micro
- 5791-12570-00 (1) 1545-Z 03-09-2022
- 5791-13776-02 (1) conn-plug minifit jr free hang
- 5820-09080-00 (2) terminal-pm1190 02-09-2101
- 5820-13730-02 (2) pin-mini fit jr 18-22awg
- A-11147-1 (1) bobbin assy
- A-11388-2 (1) plunger & reset plate assembly
- A-11397 (1) drop tgt stop bracket
- A-14617 (1) bracket & post assembly
- A-15209 (1) frame & eyelet assembly
- A-15821 (1) armature sub assembly
- AE1-26-1200 (1) coil assy
- CW-30022-5 (2) wire 22awg green
- CW-30022-9 (2) wire 22awg white
- H-19523 (1) 2 pin cable-solenoid
- H-23019-2 (1) general switch 2 pin cbl
- HW-30018-2 (3) wire 18awg red
- HW-30018-7 (3) wire 18awg violet
- MW-130-26 (1) magnet wire-130deg c sns 26ga
- SM1-26-600 (1) coil assembly
1 lb
