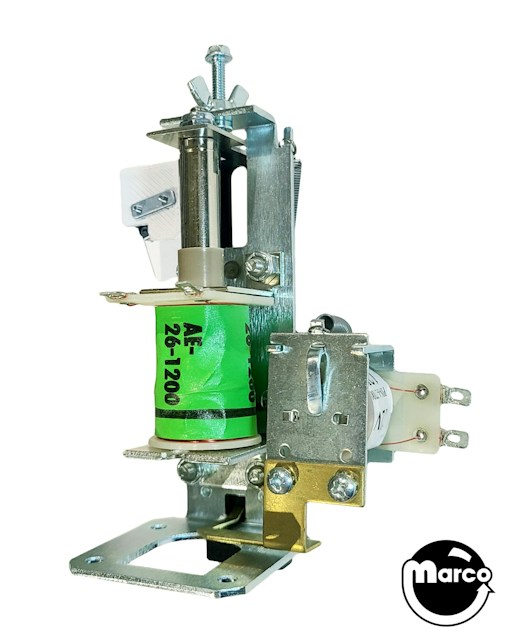

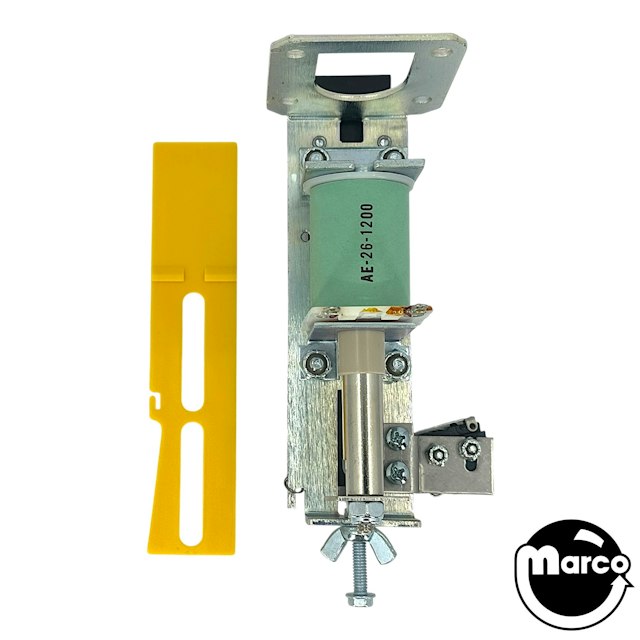

Drop target assembly Williams single

#A-14615

Single bank drop target assembly for WPC system Williams pinball machines. Includes bracket, coil, plunger, switch.

Ships un-assembled

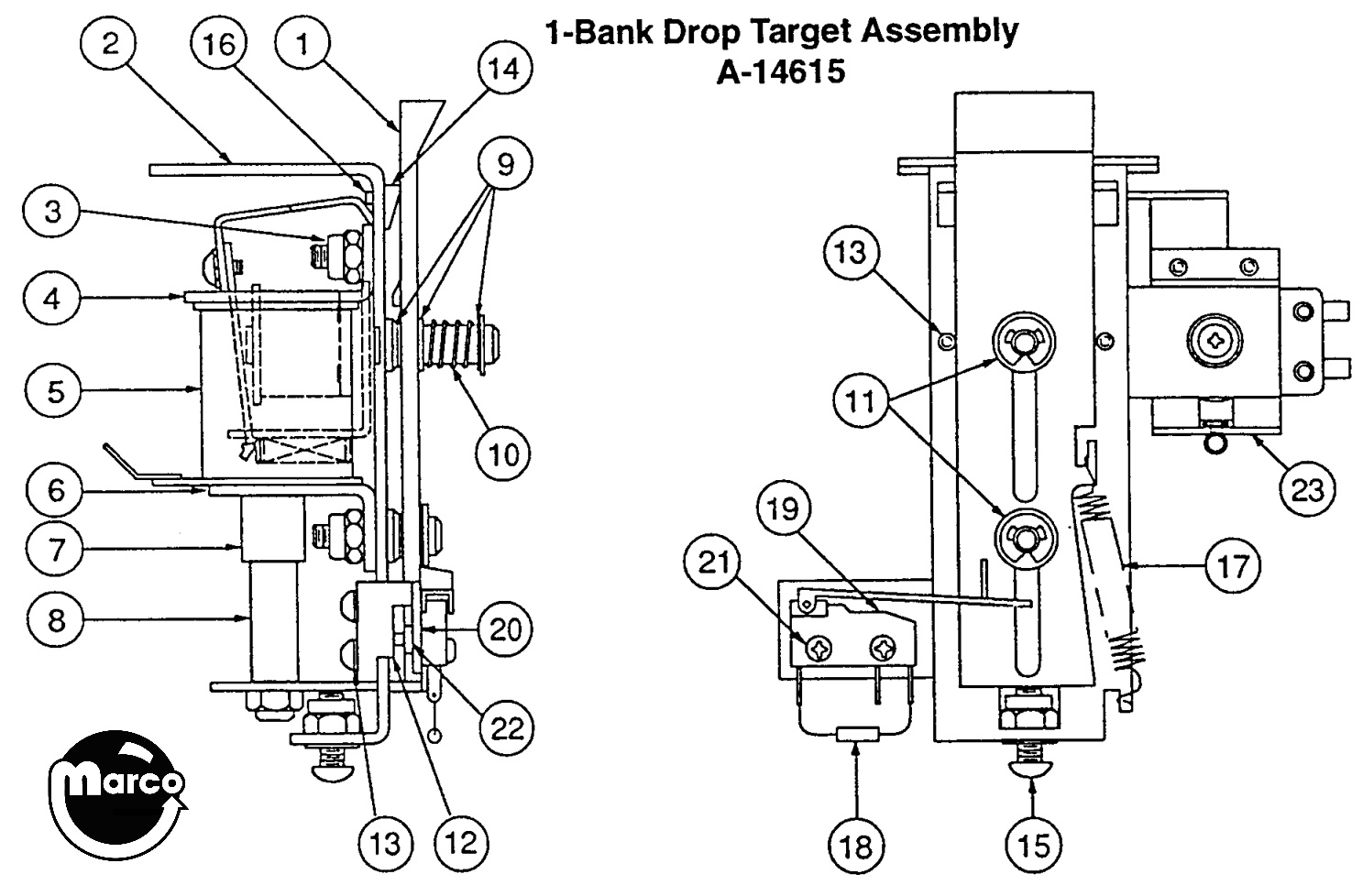

Reference:

  • A-14615
  • 01-10183 (1) bracket switch
  • 01-8413 (1) bracket coil mtg
  • 01-8600 (1) insulator
  • 03-7066-4 (1) tubing-coil
  • 03-8034 (1) stop-single target
  • 03-8630 (1) guide actuator
  • 03-8750 (1) target-flush
  • 07-6688-17N (2) rivet 5/32 x 1/8 nickel
  • 10-392 (1) spring-extension
  • 10-433 (1) spring-extension
  • 20-8712-25 (2) e ring 1/4 shaft
  • 4002-01105-12 (2) ms 2-56 x 3/4 p-ph-s
  • 4006-01003-03 (4) ms 6-32 x 3/16 p-ph-s
  • 4010-01025-14 (1) ms 10-32 x 7/8 p-rh
  • 4402-01119-00 (2) nut 2-56 esna
  • 4408-01119-00 (4) nut 8-32 esn
  • 4700-00003-00 (4) fw .125 x .281 x .032
  • 4700-00072-00 (4) fw .265 x .500 x .032
  • 5070-09054-00 (1) diode-1N4004 1.0a
  • 5647-12693-31 (1) switch sub mini micro
  • A-11388-2 (1) plunger & reset plate
  • A-11397 (1) drop target stop bracket
  • A-14617 (1) bracket & post
  • A-14908 (1) target knock down
  • AE-26-1200 (1) coil

15.5 oz

$107.99

In Stock
