CIRQUS VOLTAIRE Bally pinball machine diverter assembly.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
CIRQUS VOLTAIRE Bally pinball machine diverter assembly kit.
Ships un-assembled.
Reference:

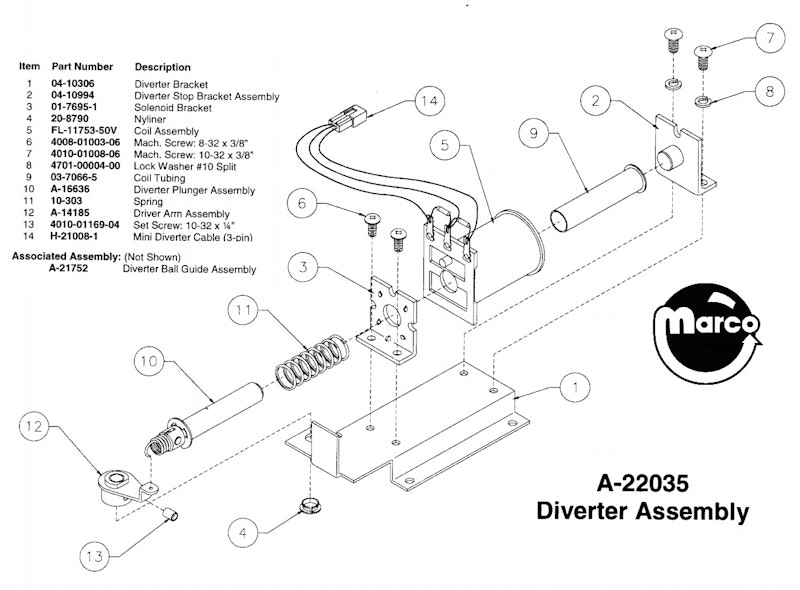

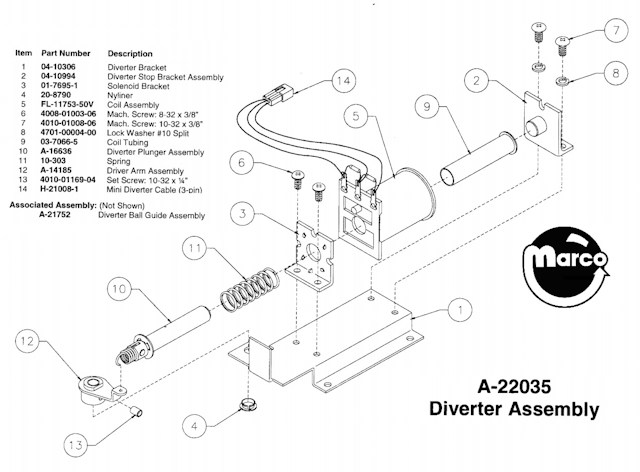

A-22035 diverter assembly
01-7695-1 (1) bracket-solenoid
03-7066-5 (1) tubing-coil
04-10306 (1) brkt-diverter
04-10994 (1) brkt-diverter stop
10-303 (1) spring-master
20-8790 (1) nyliner bearing
4008-01003-06 (2) ms 8-32x3/8 p-ph-s
4010-01008-06 (2) ms 10-32X3/8 p-ph-n
4010-01169-04 (1) ss 10-32X1/4 sh-cp-n
4701-00004-00 (2) lw No.10 split
5791-09111-00 (1) 3p1396 03-09-2032
5820-09080-00 (3) terminal-pm1190 02-09-2101
A-14185 (1) drive arm
A-16636 (1) diverter plunger
FL-11753 (1) flipper coil-yellow
Select manufacturer to view game compatibility
Williams coil bracket used on most late model Williams and Bally/Williams.
11mm x 66.2mm plunger used on divertor mechanisms.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Bracket - diverter

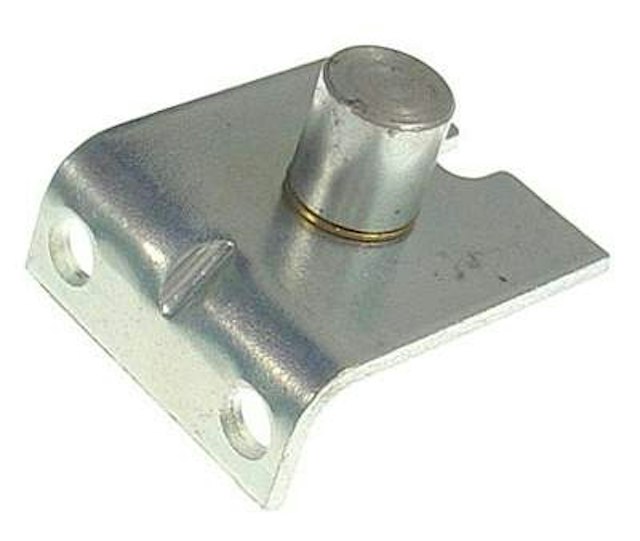

Special coil stop with long core for Bally CIRQUS VOLTAIRE pinball machine...
Spring - compression master
Spring - extension diverter plunger
E-clip or e-ring commonly used on many mechanisms.
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...
Standard snap-in Nyliner® bearing bushing with 1/4 inch Inner Diameter
Machine screw 8-32 x 3/8 inch phillips pan head.
Machine Screw 10-32 x 3/8 inch p-ph nylock.
Black finish 10-32 x 1/4 inch set screw with locking compund patch. 3/32 inch drive.
#10 steel split lock washer. Zinc plated.
Drive arm assembly used in solid state Williams/Bally games.
3 terminal, dual winding flipper coill is used on the following machines:...
Special coil stop with long core for Bally CIRQUS VOLTAIRE pinball machine...
