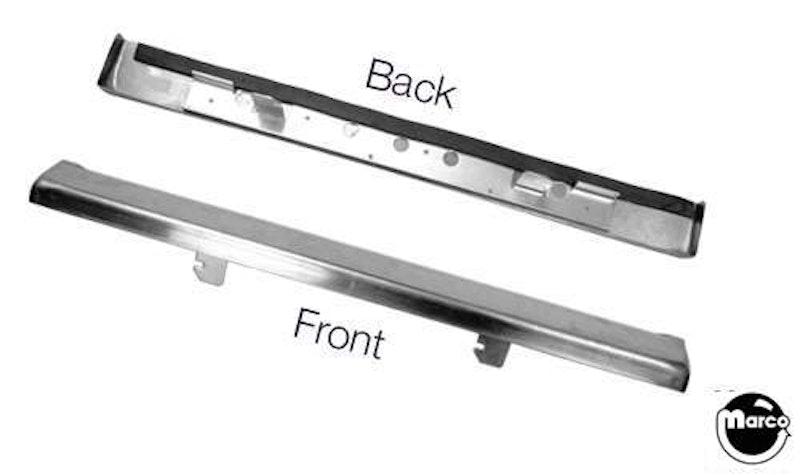

Lockdown bar front trim with epoxy fastened undercarriage assembly.
Used on all late model wide body size Bally / Williams and post-1995 Bally games. New epoxy assembly technique eliminates spot weld marks on lockbar surface.
This 304 stainless steel molding includes 23-6534-10 foam rubber seal (beer seal) and was previously know as part A-16055.
For reference, wide body playfield glasses measure 23-3/4 inch x 43 inch x 3/16 inch tempered. See game application tab below.
Reference:
- Williams A-16055
- Williams A-17996
- Jersey Jack 10-000017-03
2.1
lb
