STAR TREK NEXT GEN (WMS) Popper assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

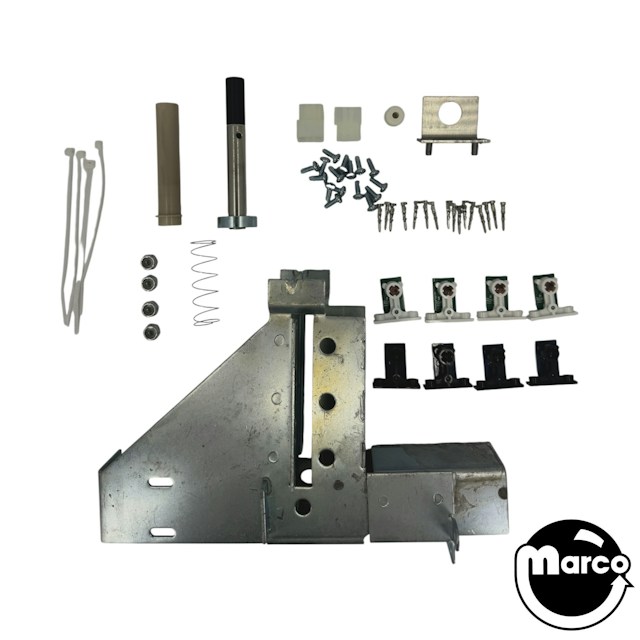

Williams STAR TREK THE NEXT GENERATION popper assembly
Ships un-assembled. Wire harness not included.
Reference:
A-17049-1 ball popper assembly complete03-7067 (1) tubing-coil03-7520-2 (2) tie wrap-nylon 3 7/810-135 (1) spring-plunger23-6420 (1) grommet4106-01013-06 (8) sms No.6 x 3/8 p-ph t-254408-01119-00 (2) nut 8-32 esn5791-09138-00 (1) 9P1625 03-06-20925820-09078-00 (8) pm1560 02-06-2101A-16858 (1) mounting bracketA-16908 (2) opto ledA-16909 (2) opto p/tA-17767 (1) bell armatureA-17887 (1) welded ball popperAE-23-800 (1) coilCW-30022-0 (11) wire 22awg blackCW-30022-32 (5) wire 22awg org/redCW-30022-36 6) wire 22awg org/bluCW-30022-7 (8) wire 22awg violetCW-30022-74 (8) wire 22awg vio/yelCW-30022-82 (5) wire 22awg gry/redCW-30022-84 (11) wire 22awg gry/yelCW-30022-86 (6) wire 22awg gry/bluH-17065 (1) popper cable
Select manufacturer to view game compatibility
Cable tie 3-7/8 inch nylon - single white
2.69 inch overall length coil sleeve with 0.187 inch shoulder.
Coil mounting bracket. Used in Bally ATTACK FROM MARS, Williams...
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Used as plunger rest on up-kickers, knockers, pop bumper assemblies, etc.
Infrared Transmitter assembly in the white plastic housing.
Infrared receiver assembly in the black plastic housing.
Overall length is 3-3/8 inches with no hole in nylon tip.

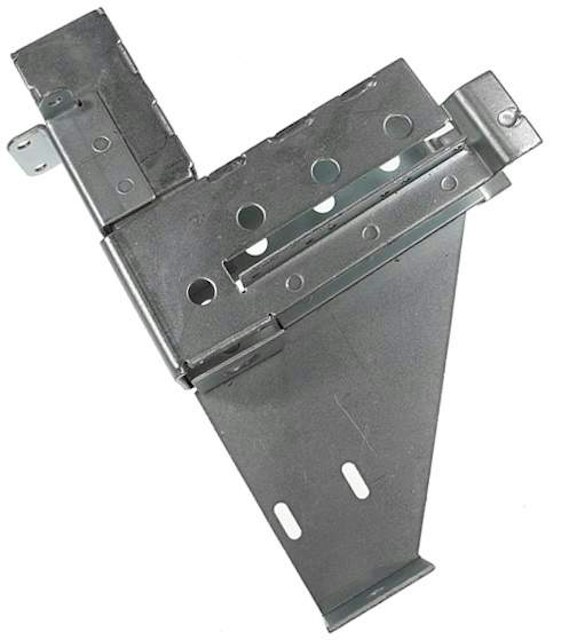

STAR TREK NEXT GEN (WMS) Popper bracket
Sheet Metal Screw No.6 x 3/8 inch p-ph t-25
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
9 position plug with no mounting ears uses .062" crimp terminals.
Crimp terminal .062 inch male
STAR TREK NEXT GEN (WMS) Popper assembly
