STAR TREK NEXT GEN (WMS) Popper assembly
Reference:
Ships un-assembled. Wire harness not included.
Reference:
A-17049 ball popper assembly complete
01-11985 (1) shield-opto
03-7067 (1) tubing-coil
03-7520-2 (4) tie wrap-nylon 3 7/8
10-135 (1) spring-plunger
23-6420 (1) grommet
4106-01013-06 (16) sms No.6 x 3/8 p-ph t-25
4408-01119-00 (2) nut 8-32 esn
5791-09132-00 (1) 12p1625 03-06-2122
5820-09078-00 (12) pm1560 02-06-2101
A-16858 (1) mounting bracket
A-16908 (4) opto led assy
A-16909 (4) opto p/t assy
A-17767 (1) bell armature
A-17887 (1) welded ball popper
AE-23-800 (1) coil
CW-30022-0 (31) wire 22awg black
CW-30022-30 (11) wire 22awg org/blk
CW-30022-31 (15) wire 22awg org/brn
CW-30022-32 (12) wire 22awg org/red
CW-30022-35 (13) wire 22awg org/grn
CW-30022-74 (16) wire 22awg vio/yel
CW-30022-75 (16) wire 22awg vio/grn
CW-30022-81 (15) wire 22awg gry/brn
CW-30022-82 (12) wire 22awg gry/red
CW-30022-83 (11) wire 22awg gry/org
CW-30022-84 (31) wire 22awg gry/yel
CW-30022-85 (13) wire 22awg gry/grn
H-17066-1 (1) locker cable - 50023
Select manufacturer to view game compatibility

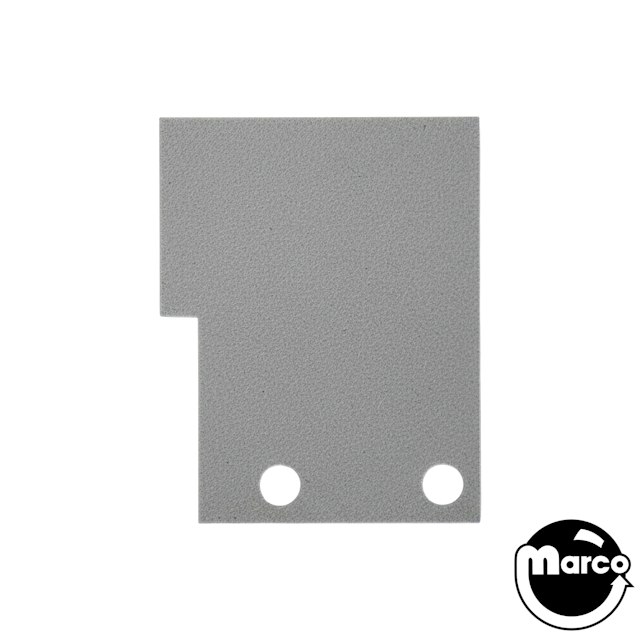

Insulating barrier for opto switch boards
Nylon coil sleeve, 1-7/8 inch long with 3/16 inch flange.
Cable tie 3-7/8 inch nylon - single white
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Used as plunger rest on up-kickers, knockers, pop bumper assemblies, etc.
Sheet Metal Screw No.6 x 3/8 inch p-ph t-25
Infrared Transmitter assembly in the white plastic housing.
Infrared receiver assembly in the black plastic housing.
Overall length is 3-3/8 inches with no hole in nylon tip.
STAR TREK NEXT GEN (WMS) Popper bracket
Equivalent to 090-5001-ND.
locker cable - 50023
