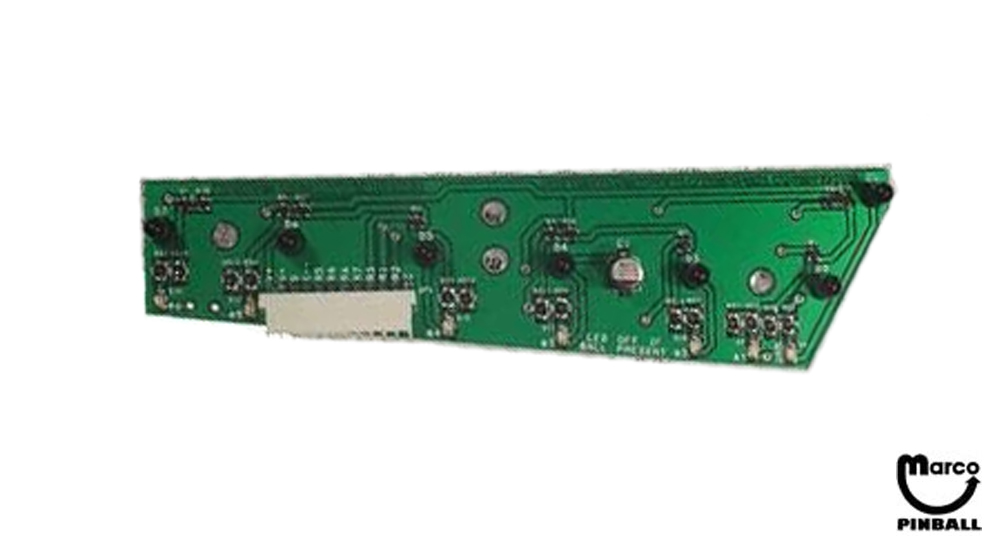

Opto board widebody recvr USE A-18244-GLM

Name: Opto board widebody recvr USE A-18244-GLM
SKU: A-16926
Price: 89.99 USD
Availability: OutOfStock

#A-16926For Reference

New design opto receiver board. Replaced by A-18244-GLM

This product is currently discontinued.

CALIFORNIA WARNING

This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

New design opto receiver board for wide body Williams/Bally WPC system pinball machines has a number of significant improvements over the original:

Highly sensitive IR sensors, yet filters almost all visible light
Tapered PCB layout conforms perfectly to the space provided and is significantly stiffer than the original, reducing board flex. Larger traces and pads for better reliability
Visual status LEDs (light emitting diodes) allow for quick troubleshooting of problems in the ball trough. Six green LEDs indicate the presense of a ball, while a seventh red LED at the far right indicates a ball in the jam location. As with the transmitter board, all LEDs are easily checked by opening the coin door.

Reference:

A-16926
PCB 5768-13659-00
Replaced by A-18244-GLM
