DRACULA (Williams) Up/down post assembly
#A-16265
DRACULA (Williams) Up/down post assembly
Ships un-assembled.

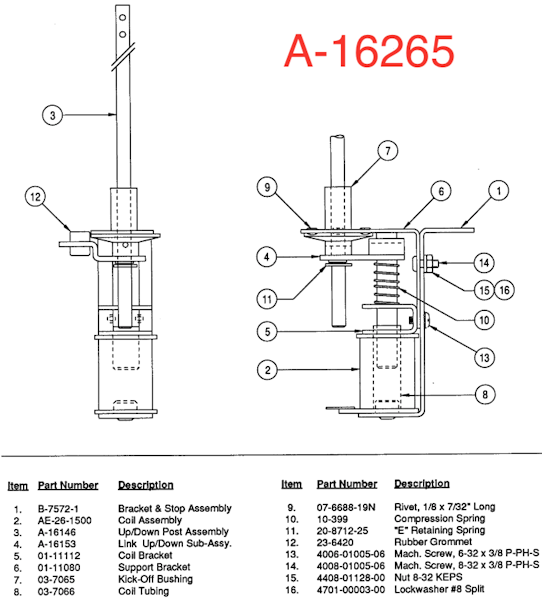

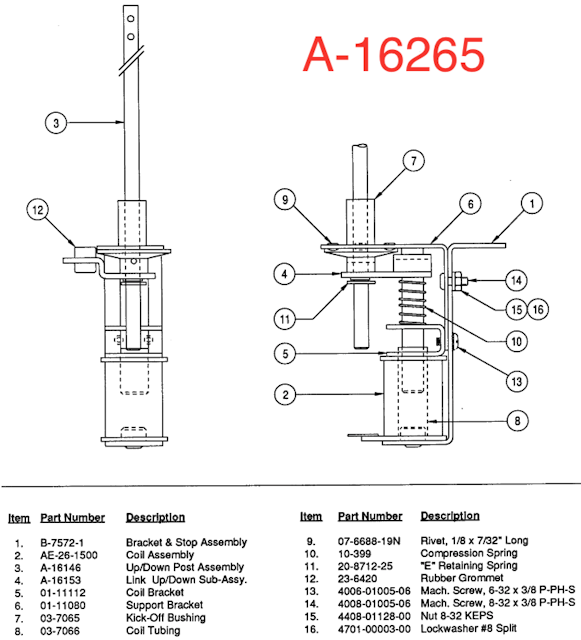

Reference:
- A-16265 up/down post assembly
- 01-11080 (1) bracket support
- 01-11112 (1) bracket coil
- 03-7065 (1) bushing kicker
- 03-7066 (1) tubing-coil
- 07-6688-19N (3) rivet 7/32X1/8 nickel
- 10-399 (1) spring-compression
- 20-8712-25 (1) e ring 1/4 shaft
- 23-6420 (1) grommet
- 4006-01003-06 (2) ms 6-32X3/8 p-ph-s
- 4008-01003-06 (1) ms 8-32x3/8 p-ph-s
- 4408-01128-00 (1) nut 8-32 keps
- 4701-00003-00 (1) lw #8 split

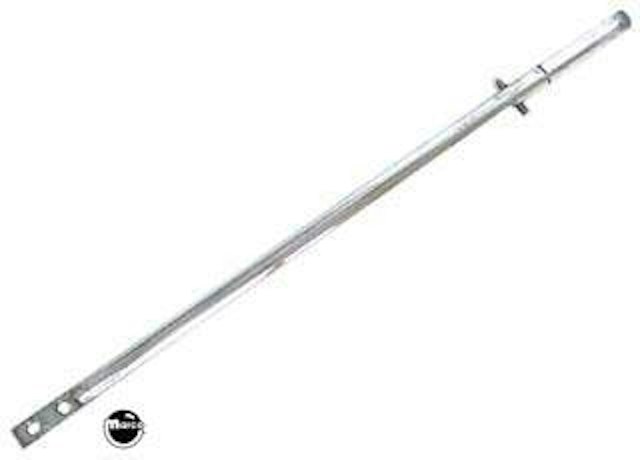

- A-16146 (1) up/down post assy
- A-16153 (1) link-up/down sub-assy
- AE-26-1500 (1) coil sub-assy
- B-7572-1 (1) bracket & stop
16 oz
