Shop parts by
DRACULA (Williams) Motor assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
DRACULA (Williams) Motor assembly
Ships un-assembled.

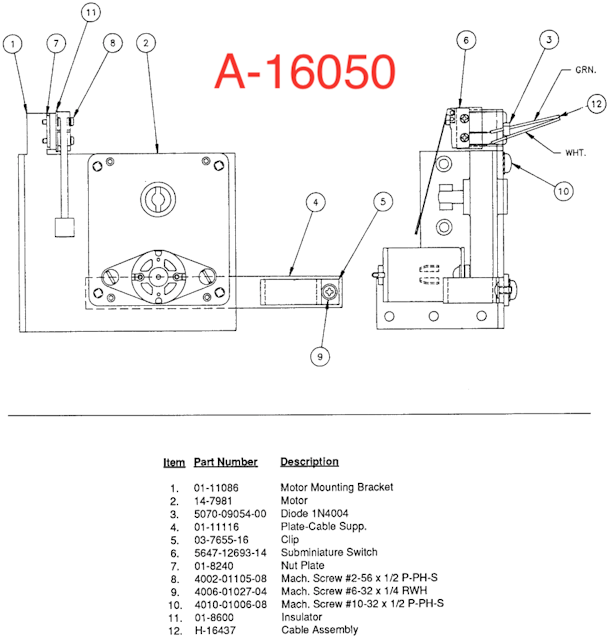

Reference:
A-16050 motor
01-11116 (1) bracket cable support
01-11660 (1) U motor mounting bracket
01-8240 (1) plate-nut No.2-56
01-8600 (1) insulator
03-7520-2 (1) tie wrap-nylon
03-7655-16 (1) clamp cable 1" dia
14-7981 (1) motor
4002-01105-08 (2) ms 2-56x1/2 p-ph-s
4006-01027-04 (1) ms 6-32X1/4 p-rwh
4010-01006-08 (4) ms 10-32x1/2 p-ph-s
5070-09054-00 (1) diode-1N4004 1.0a
5647-12693-14 (1) switch sub mini micro
5791-10772-00 (1) 2P11625 03-06-2023
5820-09078-00 (2) pm1560 02-06-2101
CW-30022-5 (3) wire 22awg green
CW-30022-9 (3) wire 22awg white
H-16437 (1) mini switch cable
