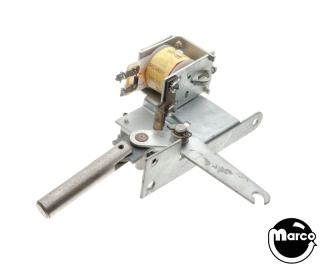

Bally/Williams ramp lifting mechanism assembly
Ships un-assembled
Reference:
A-14918 ramp lifting mechanism assembly
02-3407 plunger coil 2-1/4
02-4610 roller ramp lift
03-8085 armature link
10-363 spring-extension
12-6227 (2) clip-hair pin
20-8716-5 pin roll 1/8 x 7/16
4008-01005-24 ms 8-32X1-1/2 p-ph
4008-01021-07 ms 8-32X7/16 p-rh-brass
4408-01119-01 nut 8-32 esna/ntm
4700-00089-00 fw .172X.437X.062 brass
4701-00003-00 lw No.8 split

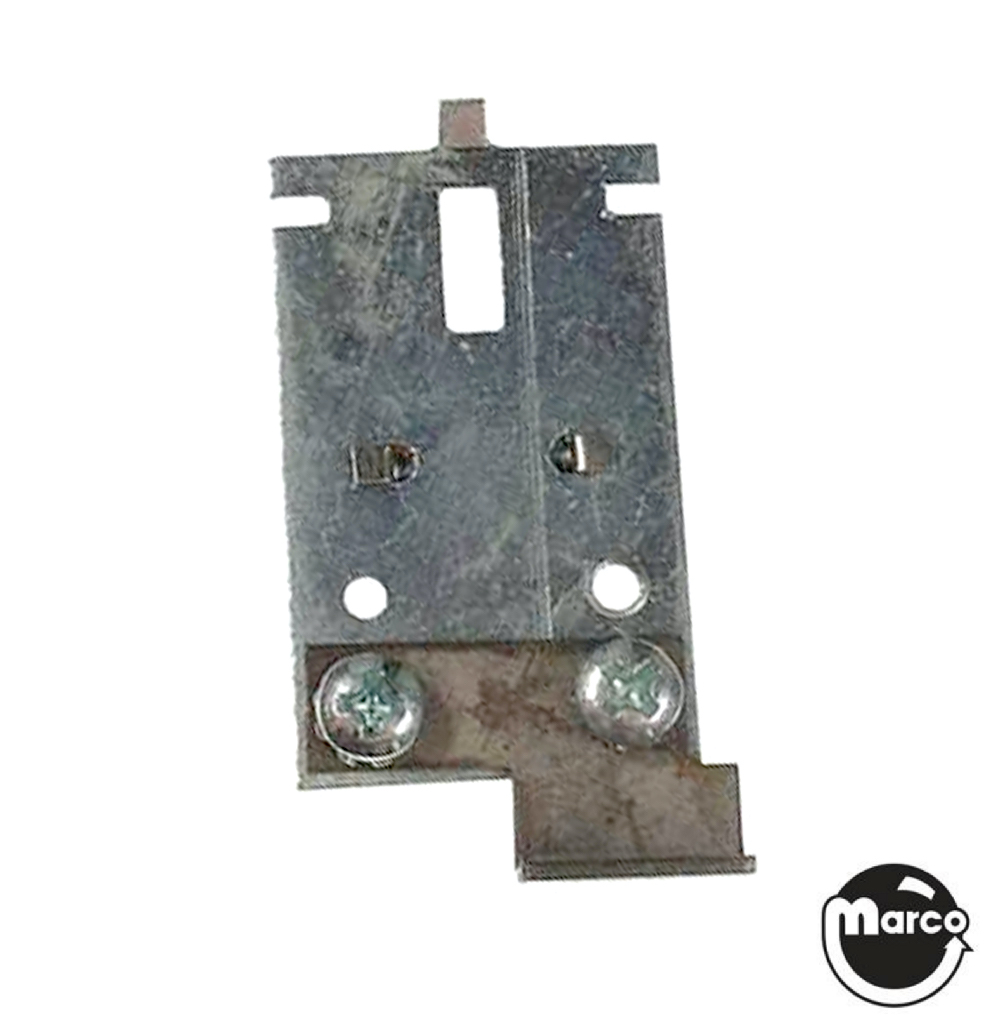

A-11139 armature
A-14870 lift crank
A-6892 frame & eyelet
B-11302 lift mech bkt
SM1-29-1000-DC (1) coil
Plunger for flipper assembly 2-1/4 inch long.

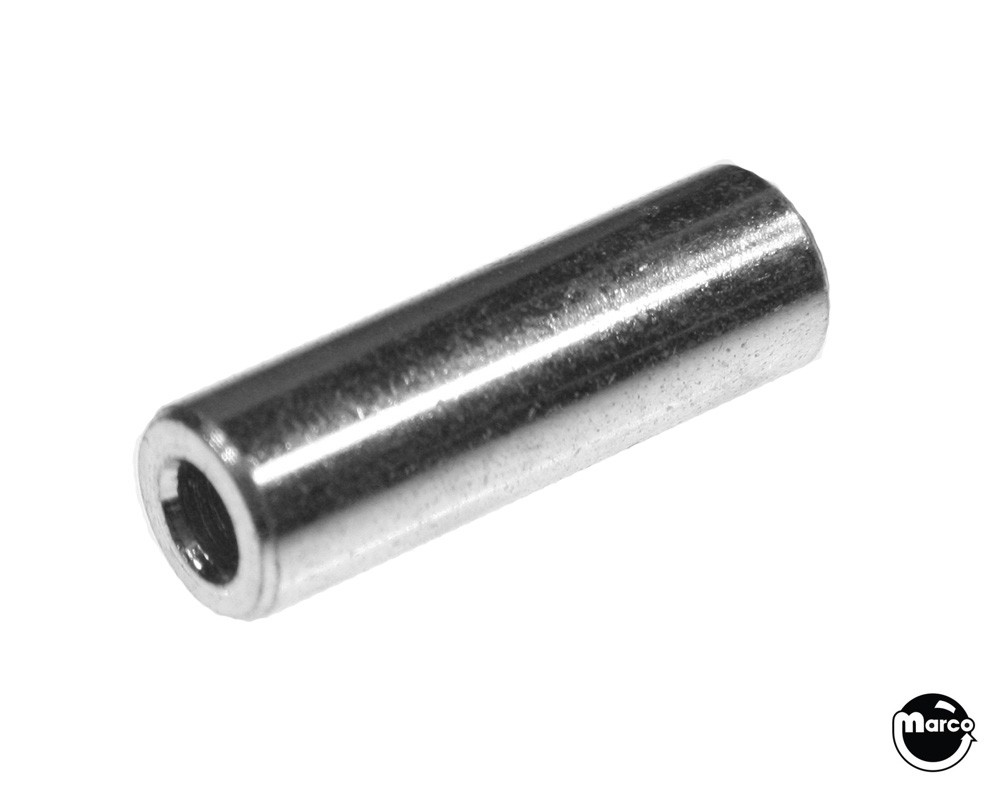

Ramp roller Williams
Plastic arrowhead shape slingshot plunger link.
Spring - extension
Hairpin retaining clip used to secure shafts and studs on many mechanical assemblies.
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...
Machine Screw 8-32 x 1-1/2" long phillips pan head.
Machine Screw 8-32 x 7/16" p-rh-brass
Stop nut 8-32 thread.
Washer .172 x .437 x .062 inch brass
Replace your misplaced or broken lock washer.
Lift crank assembly
Lift mechanism bracket
Coil - relay no diode SM1-29-1000-DC
Spring - extension
