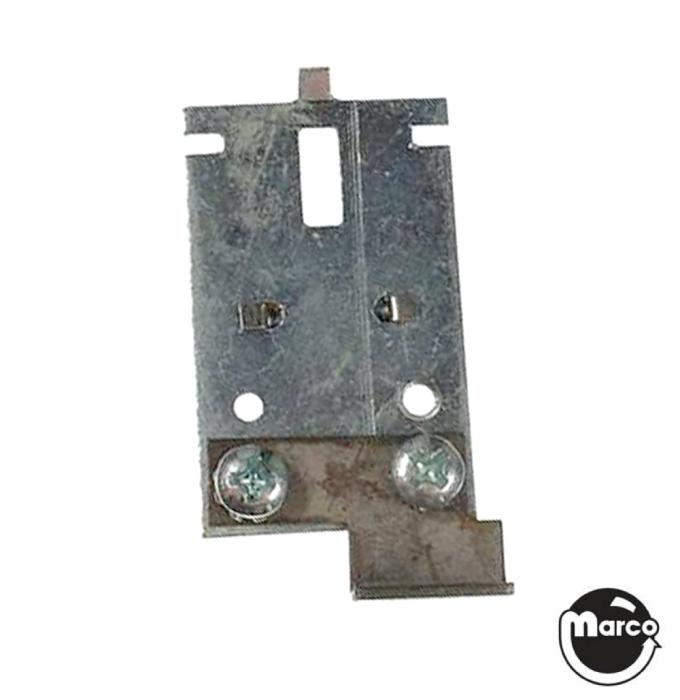

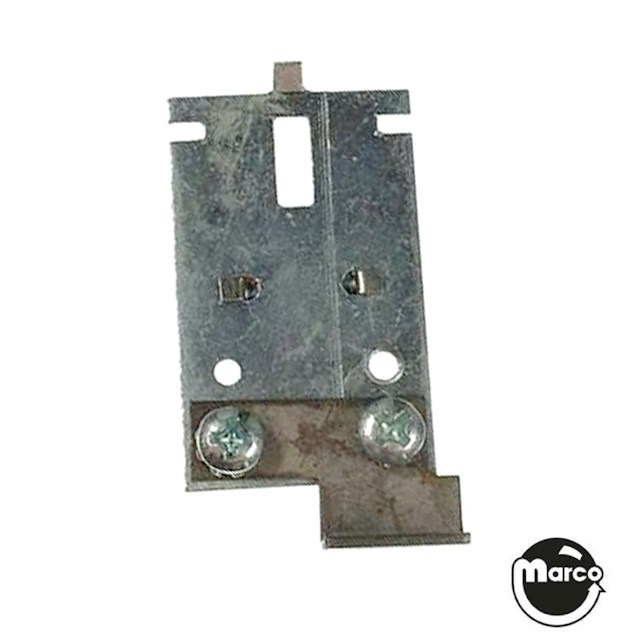

Armature plate assembly

#A-11139


Armature plate assembly

Availability

In Stock

Price

$10.99

Order

⚠ CALIFORNIA WARNING: This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product details

Relay armature plate assembly.
Ships un-assembled.

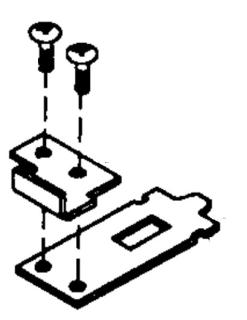

Reference:

A-11139 complete armature assy

Components:

01-8390 (1) crank-lock
4006-01003-03 (2) machine screws 6-32 x 3/16 inch phillips pan head sems
A-15821 (1) armature sub assembly

Weight: 0.58 oz

Product compatibility

Bally

Williams
