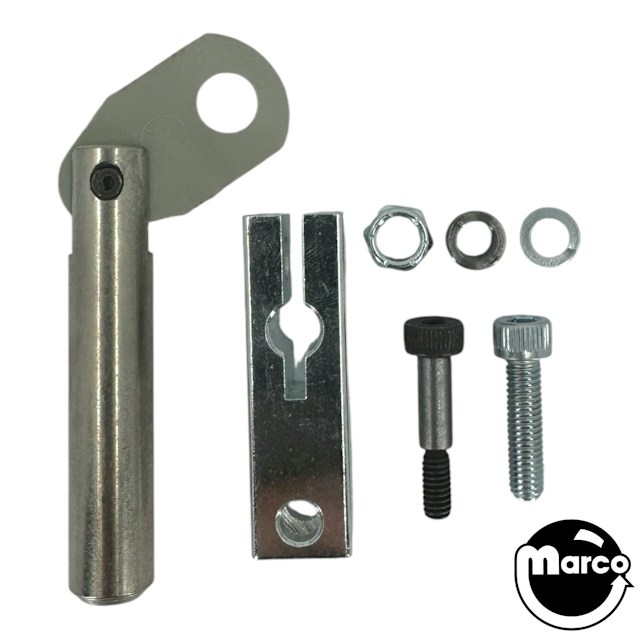

Capcom flipper crank and link
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Replacement Capcom flipper crank and link.

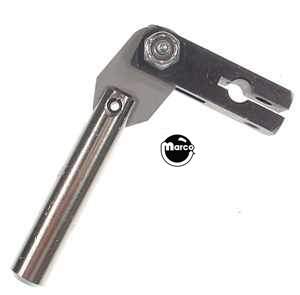

Transfer the switch actuator and can be used to replace Capcom flipper pawl assemblies:
A-00429-1L
A-00429-1R
Ships un-assembled.
Composed of the following:
530-5070-02 as a replacement for MT00394
A-22020 as a replacement for the plunger( SM00183 ) and link( PL00202-1 )
02-4676 as a replacement for SM00184
237-6144-55 as a replacement for SC00135-06
4408-01119-00 - 8-32 elastic stop nut
