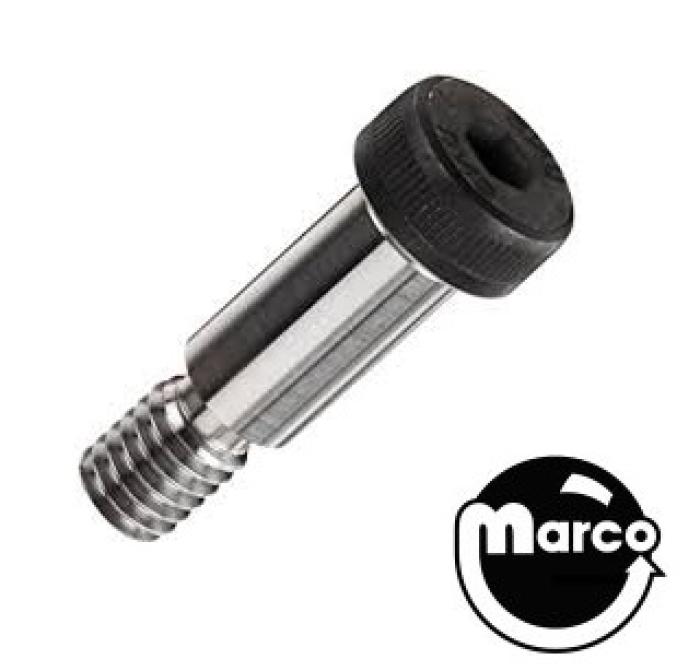

Flipper crank shoulder screw 8-32 x 3/16 dia x 7/16 inch

Shoulder screw upgrade for crank bar connection in Sega/Stern flipper assemblies beginning with Sega BATMAN FOREVER through current Stern production pinball machines.

Threadless 3/32 inch hex drive shoulder bolt shank area prevents premature wear of original screw threads against bushing. Overall length is 1 inch. Accepts 8-32 nut. Improves and maintains crisp flipper operation throughout crank assembly life.

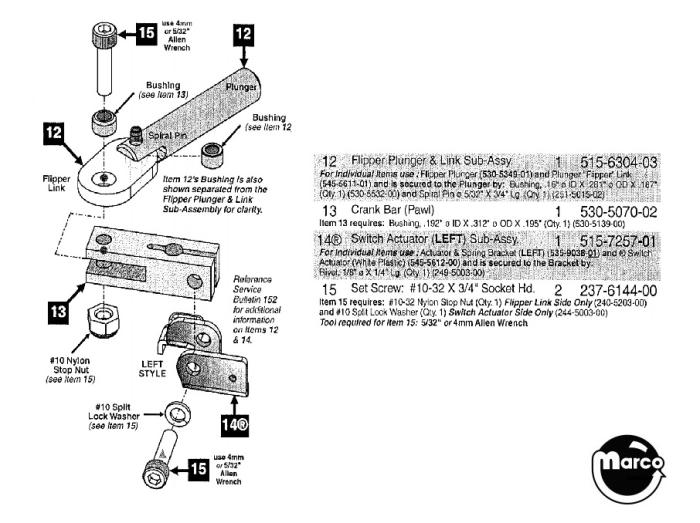

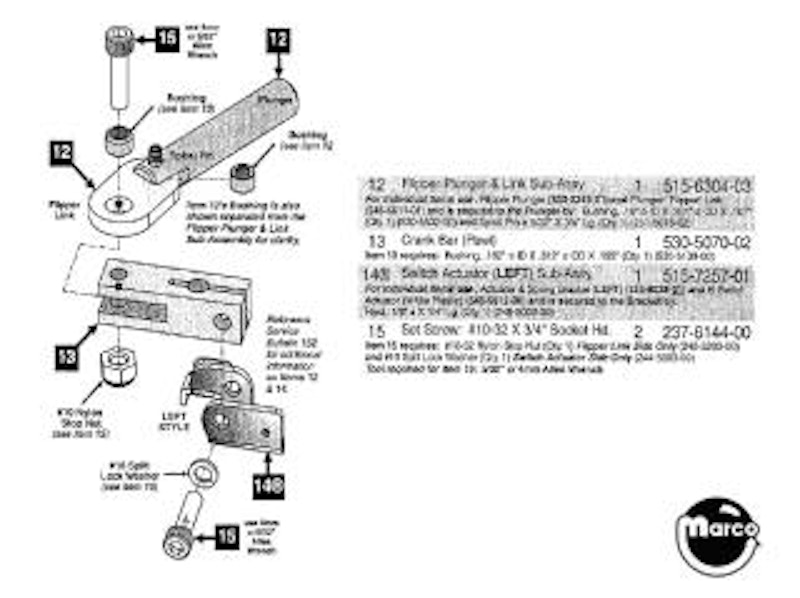

Installs in crank pawl side of flipper link with roll pin.

Reference:

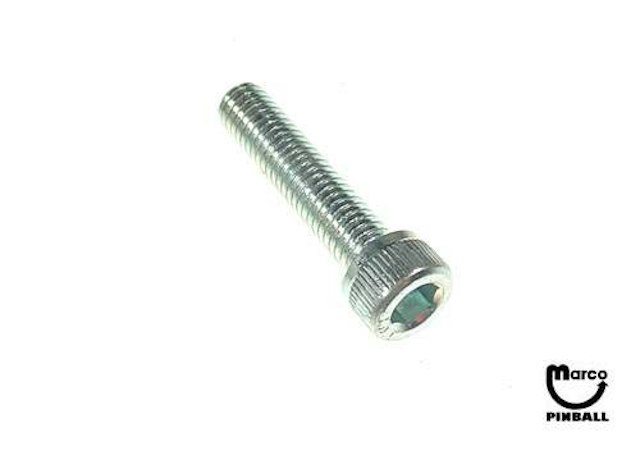

• 237-6144-55
