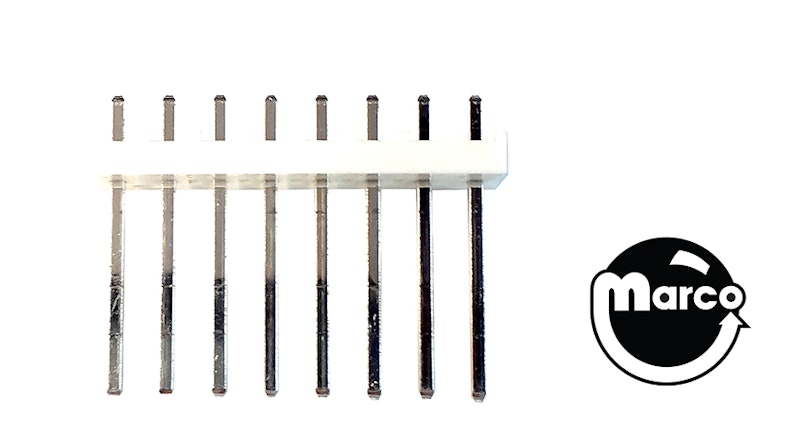

Header .156 inch 8 position .94" tall
#5A-9026
Male header 8 position .156 inch terminal spacing.
Contact mating length is 0.630" (16.00mm), overall pin length is .94 inch (23.88mm).
5 required for Williams System 3-7 CPU to Driver board interconnection.
- Overall length:1.224 inches nimonal
- Overall height 1.360 inches minimum
- Overall width 1.380 inches
- Overall thickness 0.250 inches nominal
Reference:
- 5A-9026
- 09-64-1083
- CF15608
1 oz
