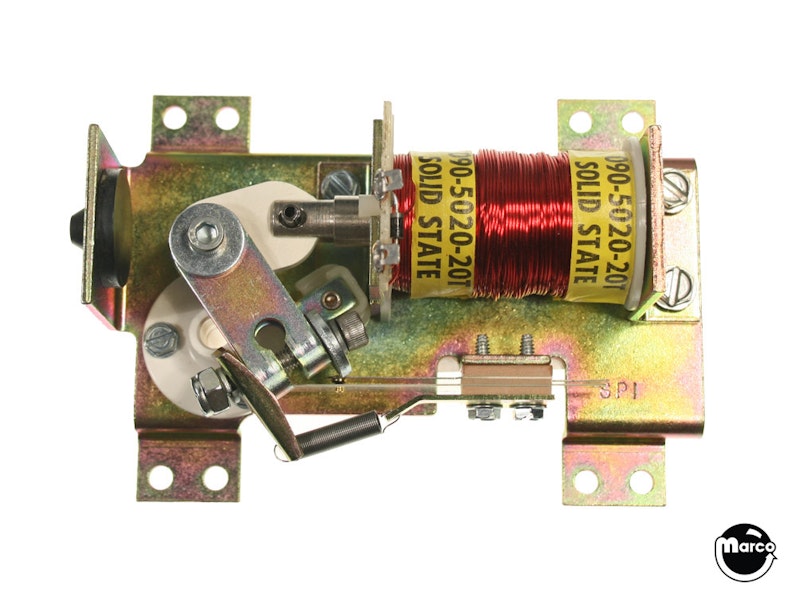

Flipper assembly - Stern left complete

#500-5944-11

Stern complete left side flipper assembly with 090-5020-20T flipper coil.

Ships unassembled.

Reference:

    • 090-5944-11 left flipper assembly with 090-5020-20T coil
    • Flipper Base 535-7275-01
    • Flipper Bushing 545-5594-00
    • Machine Screw 6-32 x 3/8 inch pl-hwh 4006-01113-06
    • Bumper-rubber 1 inch diameter 545-5428-00

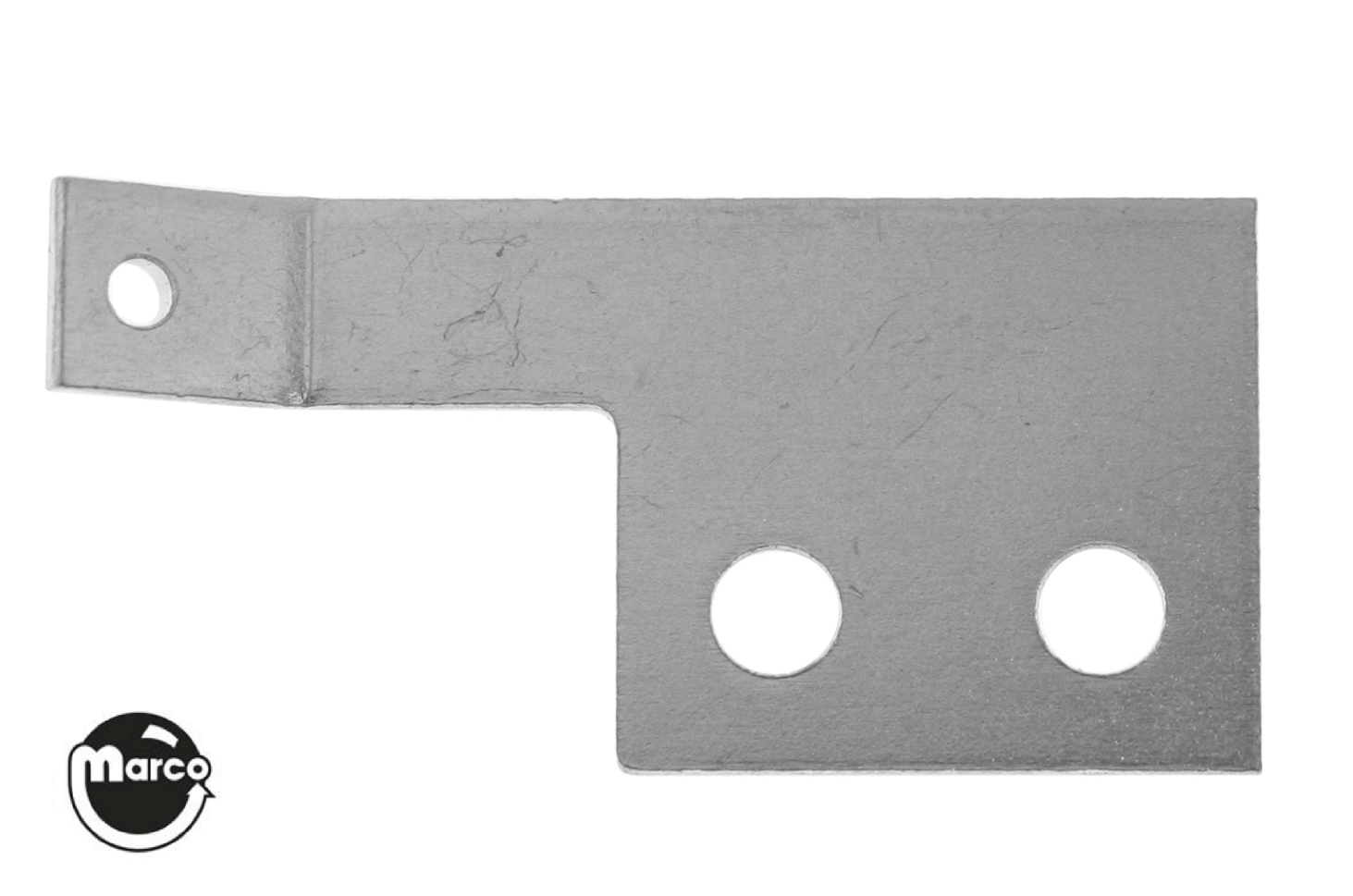

    • Switch plate & spring bracket left 535-7354-01
    • Spring - extension flipper return 265-5035-00
    • Coil stop assembly Stern revision A 515-6308-01
    • Machine screw 10-32 x 3/8 inch sl-hwh serrated 237-5985-00
    • Spring washer .531 x .75 x 1 inch 269-5002-00
    • Coil bracket notched flipper 515-5129-00

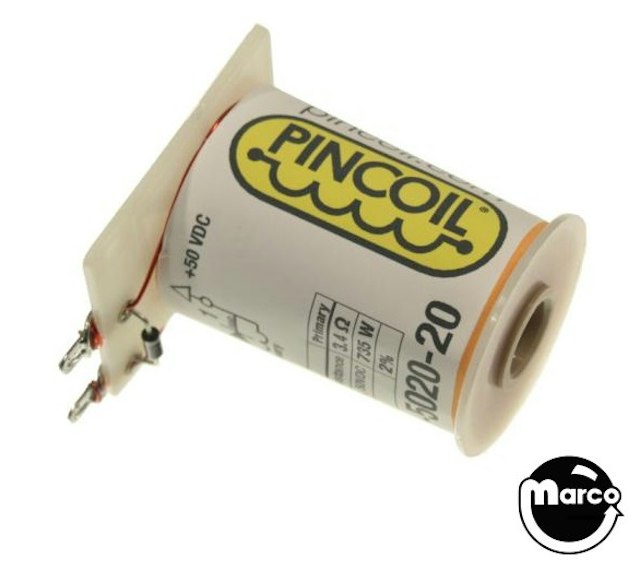

    • Coil - solenoid flipper DE/Sega/Stern 090-5020-20
    • Coil Sleev - 1/2 x 2-3/16 inch 03-7066-5
    • Bumper - rubber 1 inch diameter 545-5428-00
    • Flipper crank assembly Stern left 515-7203-01

1.267 lb

Product Discontinued

Email Me When Available
