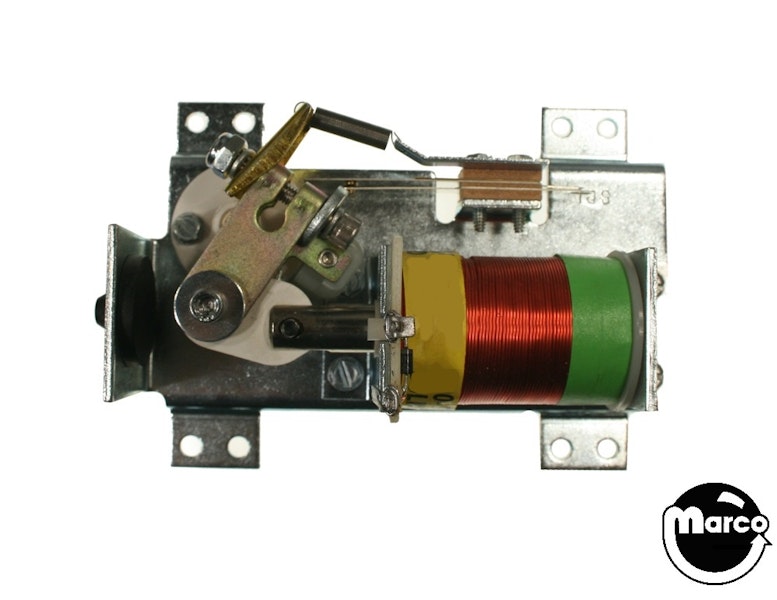

Flipper assembly Stern right complete 090-5062-ND

#500-6543-05-ND

Stern complete right side flipper assembly with 090-5062-ND flipper coil.

Ships un-assembled.

Reference:

    • 500-6543-15-ND left flipper assembly with 090-5062-ND coil
    • 500-6543-05-ND right flipper assembly with 090-5062-ND coil
    • 500-6543-16-ND upper left flipper assembly with 090-5025-ND coil
    • Flipper base with screws right 515-6617-00
    • Flipper bushing DE/Sega/Stern 1/4 ID notched 545-5070-00
    • Lock washer #10 steel reg split l/w zinc 4701-00004-00
    • Machine screw 6-32 x 3/8 inch sl-hwh-serr 237-5910-01
    • Switch EOS Stern 180-5149-00
    • Switch Plate and spring bracket left 535-7354-01
    • Spring extension flipper return 265-5035-00
    • Coil stop assembly stern rev A 515-6308-01
    • Washer .203 x .625 x .059 inch #10 4700-00023-00
    • Machine screw 10-32 x 3/8 inch sl-hwh-serr 5/16 237-5961-00
    • Spring washer .531 x .75 x 1 inch 269-5002-00
    • Coil bracket notched 535-7356-00
    • Coil solenoid no diode DE/Sega/Stern 090-5062-ND
    • Machine screw 10-32 x 7/8 inch socket head cap 237-5966-00
    • Bumper rubber 1 inch diameter 545-5428-00
    • Flipper crank Stern left w/actuator 515-6305-01
    • Plunger & link 515-6304-03
    • Switch actuator assembly Stern right 515-7257-00
    • Bracket flipper return spring 535-7353-00

1.395 lb

Product Discontinued

Email Me When Available
