Flipper assembly Data East right lower

Lower right side flipper assembly for Data East pinball machines.

Ships un-assembled

Reference:

• 500-5756-01 right top

• 500-5755-01 left top

• 500-5755-02 left lower

Drawing chart:

Item Part Number Description Quantity
1 545-5070-00 Flipper bushing 1
2 234-5000-00 No.6 x 3/8 hex head screw 3
3 237-5864-00 10-32 x 3/4 socket head screw 1
4 266-5002-00 compression spring 1
5 112-5003-00 1N4004 diode 1
6 545-5219-00 flipper link 1
7 515-5077-01 flipper base left 1
8 515-5077-02 flipper base right 1
9 515-5346-00 coil stop bracket 1
10 237-5861-00 1/4-20 x 3/8 socket head screw 3
11 269-5002-00 spring washer 1
12 090-5020-30 coil 1

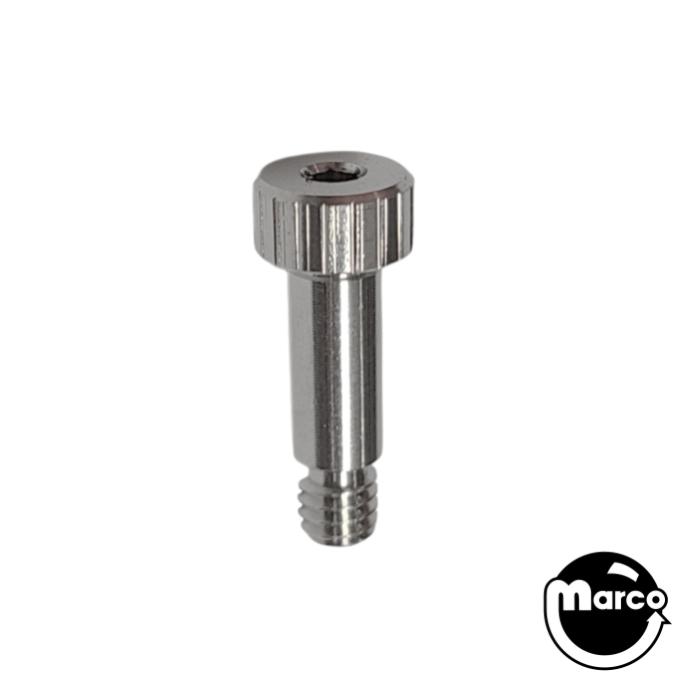

13 515-5120-00 front coil bracket 114 234-5100-00 No.8 x 3/4 hex head screw 115 515-5051-00 plunger 116 251-5000-00 pin 117 530-5070-00 pawl 118 231-5019-00 10-32 x 3/4 shoulder bolt 119 535-5939-00 rebound bracket 120 280-5003-00 rubber bumper 121 545-5031-00 coil sleeve 122 530-5139-00 bushing 123 240-5206-00 10-32 eleastic sop nut 1
