Flipper assembly Data East left
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Right side flipper assembly for Data East pinball machines.
Ships un-assembled
Reference:
500-5177-01 right
500-5177-02 left

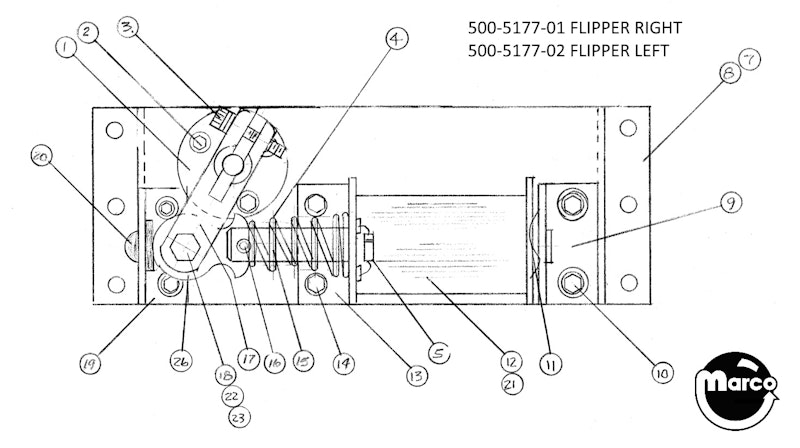

Drawing chart:
1. 545-5070-00 Flipper bushing
2. 234-5000-00 No.6 x 3/8 hex head screw
3. 237-5864-00 10-32 x 3/4 socket head screw
4. 266-5002-00 compression spring
5. 112-5003-00 1N4004 diode
6. 545-5219-00 flipper link
7. 515-5077-01 flipper base left
8. 515-5077-02 flipper base right
9. 515-5346-00 coil stop bracket
10. 237-5861-00 1/4-20 x 3/8 socket head screw
11. 269-5002-00 spring washer
12. 090-5020-30 coil
13. 515-5120-00 front coil bracket
14. 234-5100-00 No.8 x 3/4 hex head screw
15. 515-5051-00 plunger
16. 251-5000-00
17. 530-5070-00 pawl
18. 231-5019-00 10-32 x 3/4 shoulder bolt
19. 535-5939-00 rebound bracket
20. 280-5003-00 rubber bumper
21. 545-5031-00 coil sleeve
22. 530-5139-00 bushing
23 240-5206-00 10-32 elastic stop nut
