Super VUK (vertical up kicker) for Data East.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

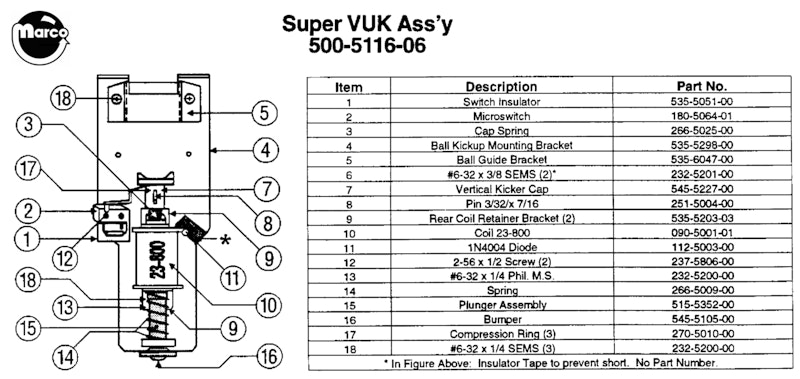

Super VUK (vertical up kicker) assembly for Data East pinball machines.
Ships un-assembled
Reference:
500-5116-00
500-5116-04
500-5116-05
535-5298-00 Ball kickup mounting bracket
535-5290-00 Ball kickup switch bracket
535-5110-00 brace
266-5009-00 spring
Select manufacturer to view game compatibility
Compression spring used on pop bumper assemblies and others.
Sub-miniature SNAP-ACTION switch with actuator and diode. Replaced by 180-5063-01
Diode - 1000V 1A DO-41
Dowel pin 3/32 x 7/16 inch
Dowel pin 1/8 x 1.5 inch
Data East cap spring VUK (vertical up kicker) Reference: 266-5025-00
Compression ring - VUK assembly
This is the small phillips panhead screw used to secure most playfield mic...
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...
xxx
Coil support bracket.
Vertical up kicker (VUK) bracket.
Super VUK guide bracket
For use in various assemblies in SAM, SPIKE 1, 2, and 3 Systems.
Plastic cap for vertical up kicker. Reference: 545-5227-00 565-00...
Equivalent to 090-5001-ND.
Super VUK (vertical up kicker) for Data East.
