Machine screw with 6-32 thread and 1/2 inch long with phillips pan head
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

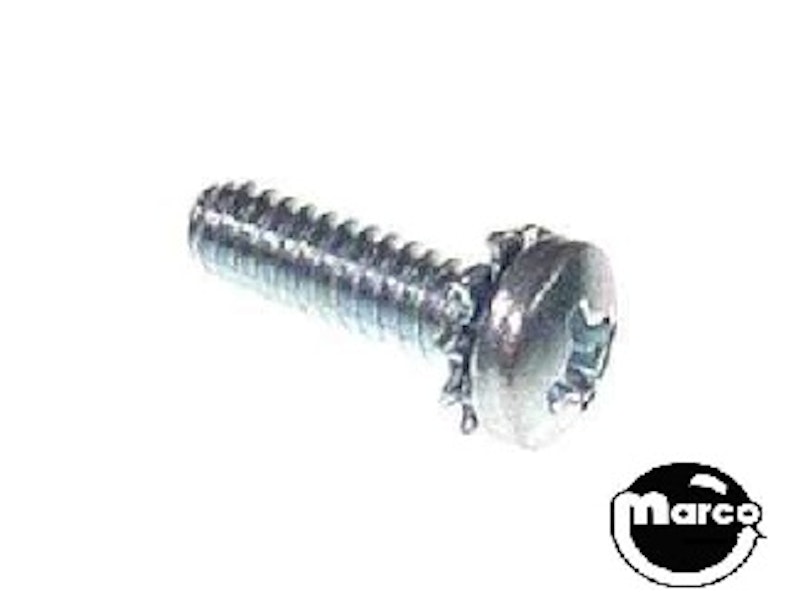

6-32 x 1/2" phillips pan head machine screw with integrated external tooth lockwasher
SEMS is a fastener industry term that refers to a screw or bolt which has a captive washer.
Reference:
4008-01003-08
232-5202-00
SC00100-04
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part #4006-01030-12 indicates a #6 stud diameter (.138") fastener.
The middle 5 digits describe the fastener head style or other features.
Basic diameters and threads of Standard SAE (Society of American Engineers) numeric system small machine screws are shown below.
The diameters of machine screws are indicated with the number of threads per inch. Here is a list of common sizes in inches:
2-56: 0.0860" or 43/500" diameter; 56 threads per inch
4-40: 0.1120" or 14/125" diameter; 40 threads per inch
5-40: 0.1250" or 1/8" diameter; 40 threads per inch
6-32: 0.1380" or 69/500" diameter; 32 threads per inch
8-32: 0.1640" or 41/250" diameter; 32 threads per inch
10-32: 0.1900" or 19/100" diameter; 32 threads per inch
10-24: 0.1900" or 19/100" diameter; 24 threads per inch
12-24: 0.2160" or 27/125" diameter; 24 threads per inch
