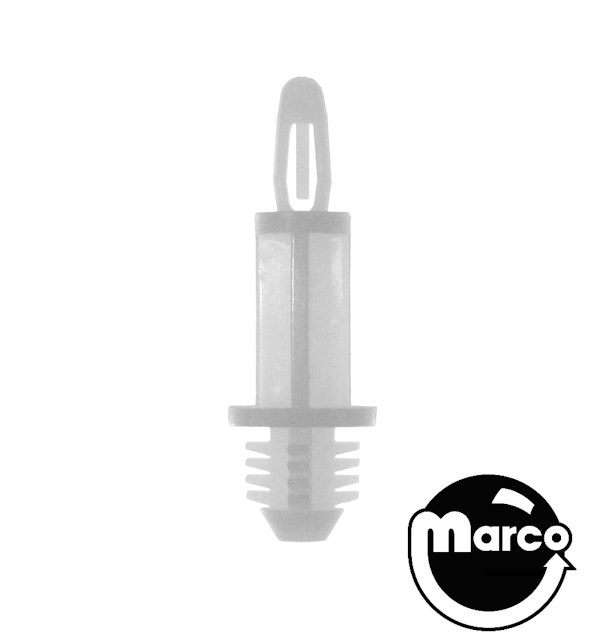

Standoff - DMD display mount 5/8 inch

#20-9504-10

Plastic 5/8 inch tall blind hole locking (BHL) circuit board stand-off for mounting dot matrix displays in Williams/Bally pinball machines.

Measured from releasable locking head and 'fir tree' base bottom.

  • Blind hole dual lock circuit board support, nylon 6/6, natural color

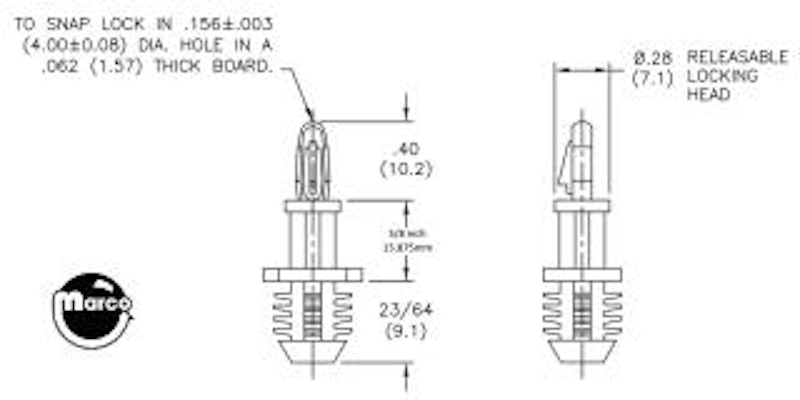

  • 5/8 inch standoff height, 1.385" total length, .28" Width, .44"x.313" base support on panel
  • Top hole: snap-lock, .156" diameter Hole, .062" panel thickness, .40" tip length
  • Bottom hole: press-fit, .312" diameter hole, panel thickness 1/4" minimum, .36" protrusion below pan

    Reference:

  • 20-9504-10

  • 0.02 oz

    $0.99

    In Stock
