CPU Board Zaccaria
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

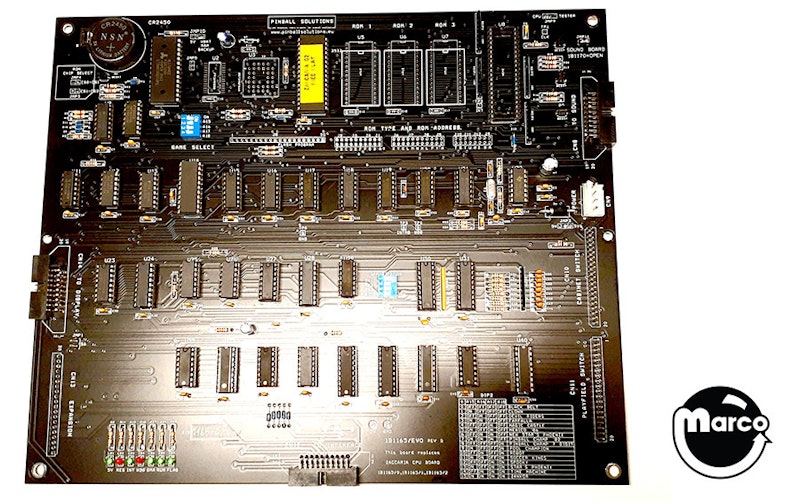

New 1B1165/evo CPU (Central Processing Unit) board assembly for Zaccaria G2 System pinball machines.
Includes new, innovative features not found on the original Zaccaria boards:
Modern, easily available components
Replaces obsolete 3081 IC with new technology components
Embedded flash ROM with FREE PLAY game roms
One board operates on all G2 Zaccaria pinball machines without replacing the eproms
Easily select the game ROM using a dip switch
Compatible also with the old eproms
Socketed ICs for easy diagnostics and repair
Status LEDs for quick diagnostic
Battery support for button cell CR2450
Option installation of non-volatile type Cypress FM16W08 NVRAM
Original position connection headers for compatibility with original cabling
Plug & Play installation - remove the old board, position and connect the new 1B1165/evo
Reference:
1B1165
1B1165/0
1B1165/1
1B1165/2
Select manufacturer to view game compatibility
CPU board Zaccaria G1
Flasher board Zaccaria EM
Sound board Zaccaria EM
USE CA3081-TAR
Standard carbon steel 1-1/16 inch diameter, 80 gram case hardened pinball
28 pin DIP blank.

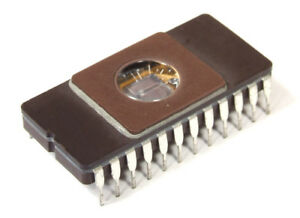

Refurbished 2532 or equivalent UV erasable EPROM in DIP-24
