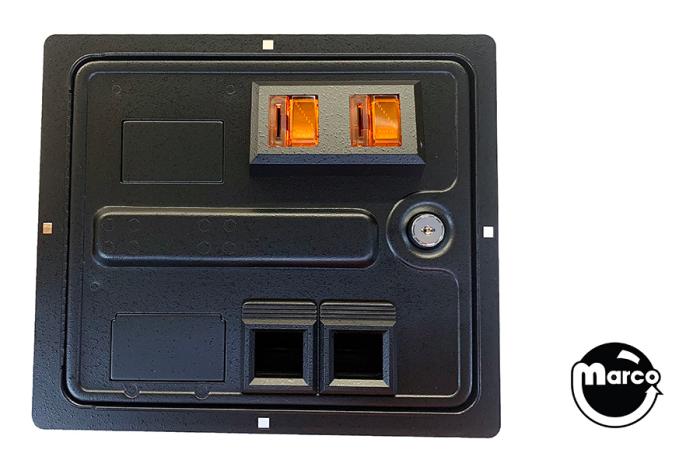

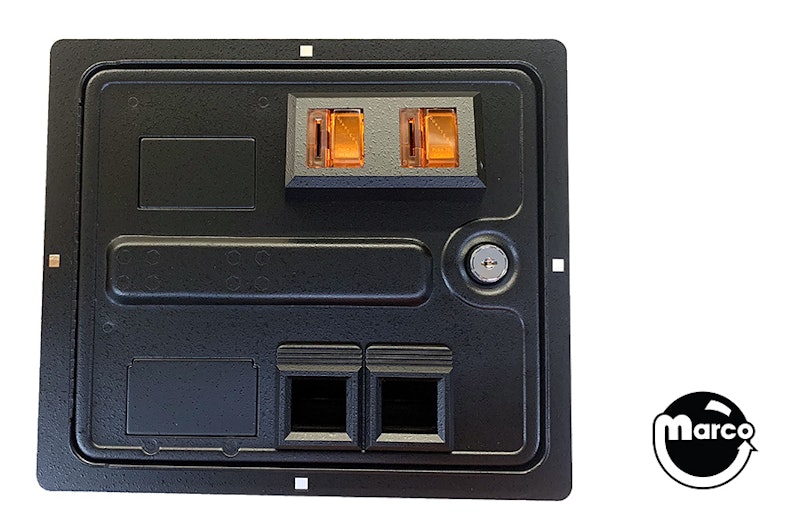

Coin door assembly Entropy 2 chute WPC harness

New Entropy brand Williams/Bally WPC system standard 2 chute Coin Door used on all domestic late model Williams / Bally pinball games.

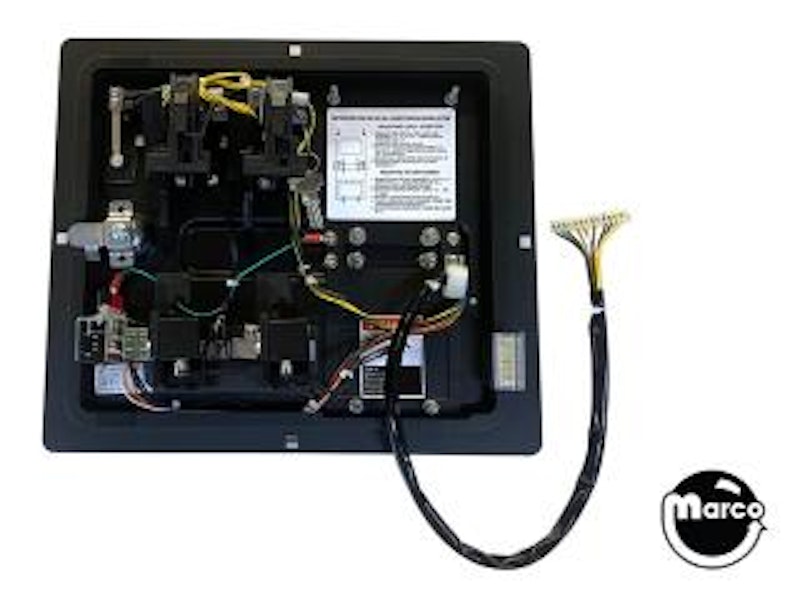

Includes 4 button Service Switch assembly, coin mechanism wiring harness, coin microswitch, and lock with 2 keys. Coin mechanism and bill acceptor wiring harness not included.

The harness has a Williams WPC compatible 0.156 spacing 13 position female connector.

If you would also like new hardware for your door, the following is what was used to attach the door to the cabinet:

• Qty 4 231-5003-00 Carriage bolt - 1/4-20 x 1 - 1/4" (4320-1123-20B)

• Qty 4 4420-01141-00 Nut - 1/4-20 serrated flanged nut

• Qty 4 4700-00041-00 Washer - .312 x .750 x .06.

  Reference:


  • 09-61000-X

  • 09-61000-1

  • 09-61000-2

  • 09-61000-3

  • 09-96017

  • 09-17002-26

  • 09-23002-1

  • 09-37000-1

  • 09-46000

  Instructions for mounting optional upstacker bill validators:

  This coin door will accommodate the following manufacturers' bill validators:

  • MEI model Series 2000 upstacker

  • ICT model A6, S6, PAT Series upstackerr

  • Pyramid model APEX 5000-U, XLC 5000-U series upstacker

  Instructions

  1. Remove 2 bottom hex nuts (E & F) from bottom studs and remove 2 white spacers (retain both for later use)

  2. Remove 2 hex nuts (C & D) from middle studs

  3. Remove the blanking plate from the door

  4. Place the 2 white spacers removed in step No.1 over the 2 long studs at the bottom of the door (E & F)

  5. Remove the 2 top hex nuts (A & B) from top long studs and keep the existing 2 white spacers on the 2 long studs (A & B)

  6. Place the upstacker bill validator over the 4 studs with spacers on them (A, B, E & F)

  7. Place ground wire coming from the bill validator unit on the ground stud

  8. Secure hex nuts (A, B, E & F) removed in steps No.1 and No.2
