Keypad Bally 6803 Systems

Replacement service / diagnostics / programming Keypad for Bally 6803 System pinball games (see list).

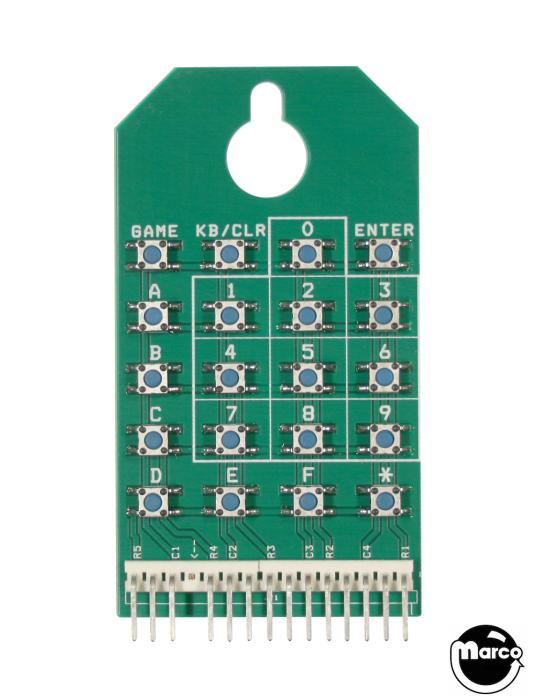

This board is a complete redesign of the Programming Keypad used in mid 1980's Bally games that use the 6803 MPU board.
The new design has a number of improvements:

• One piece board construction with built-in keyhole
• Large buttons with firm click and feel
• One piece connector



Reference:

• 0017-00009-0516
• Note:
  ATLANTIS, BLACKWATER 100, ESCAPE FROM THE LOST WORLD, and TRUCKSTOP may not use the keypad. Please refer to the game's manual to verify.
