WPC High Voltage rebuild kit A-20516
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

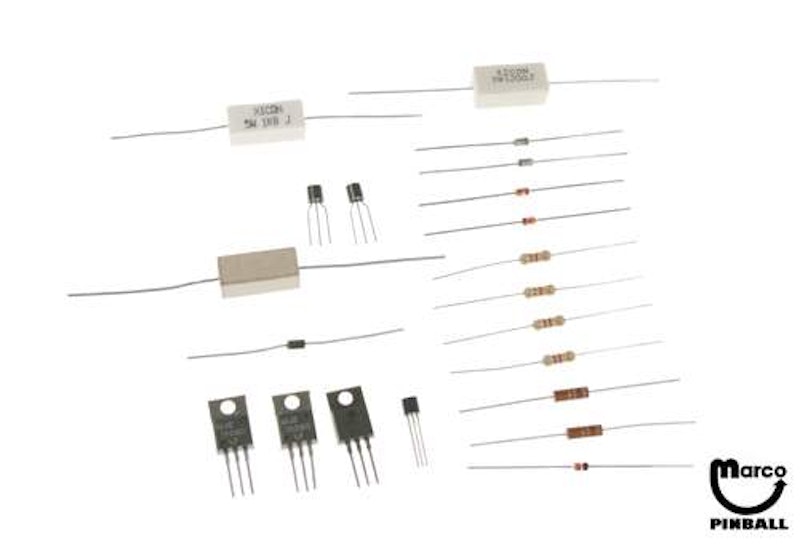

24 piece electronic components rebuild kit for the High Voltage section of Williams A-20516 WPC system A/V controller boards.
This critical update kit is designed to prevent burnt circuit board damage from original components. Take a moment to inspect the rear side of the A-20516 controller board and you will see a blackened area under the high voltage circuit area.
Installation requires circuit board soldering skills and about 20 minutes.
Kit includes:
1N4759A zener diode (1 piece) D2
1N4758A zener diode (2 pieces) D1, D18
1N4742A zener diode (2 pieces) D3, D5
1N4004 diode (1 piece) D4
2N5551 (MPSD02) transistor (2 pieces) Q2, Q3
2N5401 (MPSD52) transistor (2 pieces) Q4, Q5
MJE15030 transistor (2 pieces) Q1,Q7
MJE15031 transistor (1 pieces) Q6
120 ohm 1/2 watt resistor (2 pieces) R30, R31
47K ohm 1/2 watt resistor (4 pieces) R25, R26, R27, R29
56 ohm 1/4 watt resistor (1 piece) R24
4.7K ohm 5 watt radial resistor (1 piece) R43
1.8 Kohm 5 watt radial resistor (1 piece) R44
120 ohm 5 watt radial resistor (1 piece) R28
.001 mfd 50 volt disc capacitor (1 piece) C11
Reference:
A-20516 WPC-95 Audio Visual board
A-20516-500XX WPC-95 Audio Visual board
A-20516-900XX WPC-95 Audio Visual board
5075-12826-00 zener diode 62v 1 watt
5070-09054-00 diode 1N4004
5075-12824-00 zener diode 12v 1 watt
5075-12823-00 zener diode 56v 1 watt
5164-12154-00 transistor MJE15030
5164-12155-00 transistor MJE15031
5194-09055-00 transistor MPSD52
5164-09056-00 transistor MSPD02
5043-09845-00 capacitor .001mfd 50v
5010-10171-00 resistor 56 ohm 1/4 watt
Select manufacturer to view game compatibility
Diode - 400 volts 1 amp XO-254
Diode - Zener 12v 1 watt
Zener diode 56 volt 1 amp Reference: 5075-12823-00
Zener diode 62 volt 1 watt Reference: 5075-12826-00
Transistor - PNP pre driver used on many pinball machine circuit boards.
Transistor NPN 160V 0.6A 3-Pin TO-92 XO-313

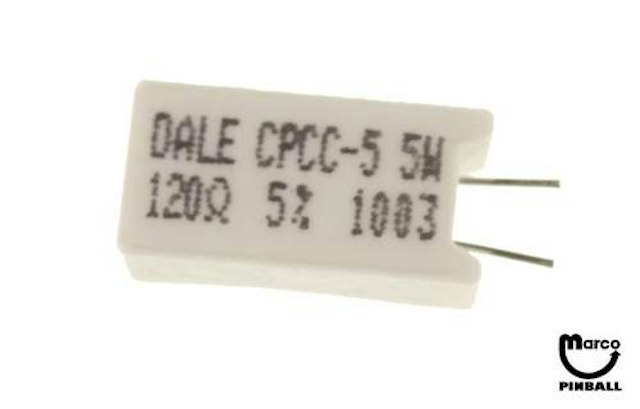

Resistor 120 ohm 5w 10% vertical mount radial leads

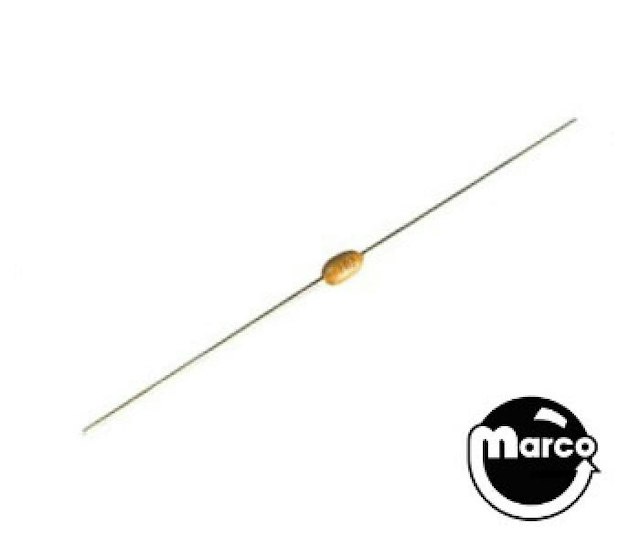

Capacitor 1000 pF 50 axial
