Flipper Rebuild Kit Williams 1961-1967

#WFLKIT6167


Flipper Rebuild Kit Williams 1961-1967

Availability

In Stock

Price

$89.99

Order

⚠ CALIFORNIA WARNING: This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product details

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.

Kit compatible with Williams 1961-1967 pinball machines contains all mechanical components for left and right side flipper assemblies on games from SKILL BALL 10/1961 to SHANGRI-LA 3/1967.

Includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.

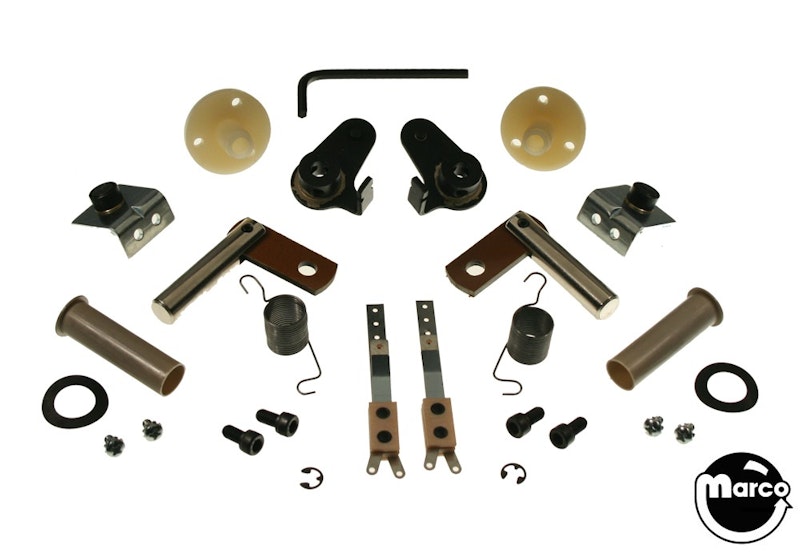

Parts included in this kit:

(2) SW-10A-8 - Switch
(1) A-3329 - Spring
(1) A-3328 - Spring
(2) 20-8712-25 - E-clip for 1/4 inch shaft
(2) 1A-2847 - Link
(2) 02-2364 - Plunger 2.0 inch ball eject & kickers 2A-2364 A-272
(2) 20-8716-5 - Roll pin 1/8 x 7/16 inch 20A-8716-5 P-1637-59
(2) A-4708 - Coil stop
(2) 03-6014 - Flipper bushing Williams 3A-6014
(2) 03-7066 - Coil sleeve
(1) A-4962-L - Flipper crank Williams left
(1) A-4962-R - Flipper crank Williams right
(4) 4006-01003-04 - Machine Screw 6-32 x 1/4" p-ph-sems

Reference:

WFLKIT6167

Weight: 6.3 oz

Product compatibility

Williams

Related Items

-Plunger 2.0 inch ball eject & kickers 2A-2364 A-272

Plunger 2.0 inch ball eject & kickers 2A-2364 A-272

Plunger 2.0 inch ball eject & kickers A-272 2A-2364

-Flipper bushing - Williams 3A-6014

Flipper bushing - Williams 3A-6014

Williams Flipper Bushing for electromechanical and early solid state flipp...

-Coil sleeve - 1/2 x 1-3/4 inch 3A-7066 545-5411-00 545-5031-00

Coil sleeve - 1/2 x 1-3/4 inch 3A-7066 545-5411-00 545-5031-00

Coil sleeve (plastic tubing) is the most commonly used size on all machines.

-Link - flipper Williams EM 1960's

Link - flipper Williams EM 1960's

Link - flipper Williams EM 1960's

-Bracket - flipper L stop Williams

Bracket - flipper L stop Williams

Bracket - flipper L stop Williams

-Bracket - flipper coil Williams

Bracket - flipper coil Williams

Bracket - flipper coil Williams

-E-clip for 1/4 in shaft 20A-8712-25

E-clip for 1/4 in shaft 20A-8712-25

E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00

-Roll pin 1/8" x 7/16" 20A-8716-5

Roll pin 1/8" x 7/16" 20A-8716-5

1/8" diameter x 7/16" length slotted spring roll pin. Reference:...

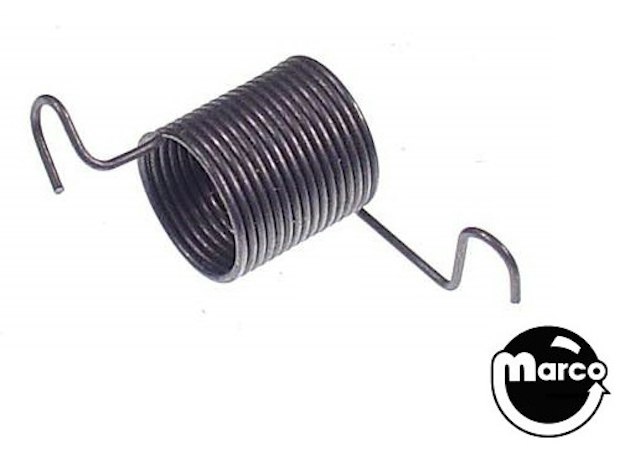

-Spring - torsion flipper return left

Spring - torsion flipper return left

Left side flipper assembly torsion return spring.

-Spring - torsion flipper return right

Spring - torsion flipper return right

Right side flipper assembly torsion return spring. Reference: A-3329

-Coil stop - flipper Williams EM

Coil stop - flipper Williams EM

Coil stop - flipper Williams EM

-Flipper crank Williams left

Flipper crank Williams left

Williams flipper crank assembly used on 1970-1980 vintage pinball machines.

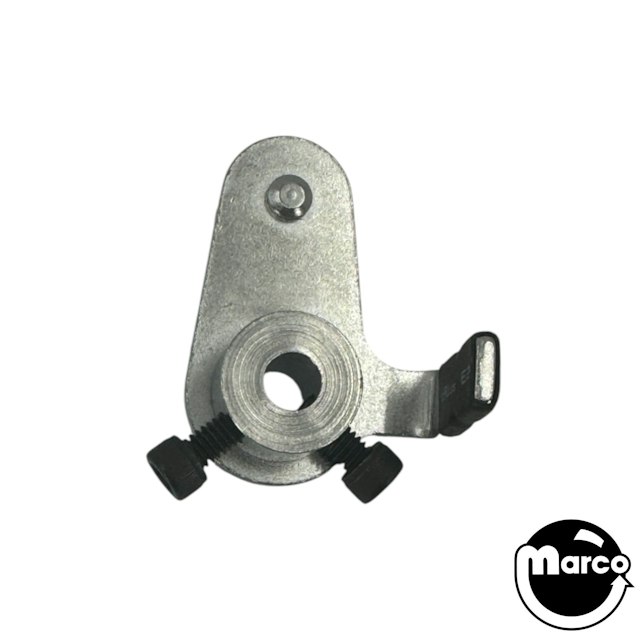

-Flipper crank Williams right

Flipper crank Williams right

Williams flipper crank assembly used on 1969-1979 vintage pinball machines.

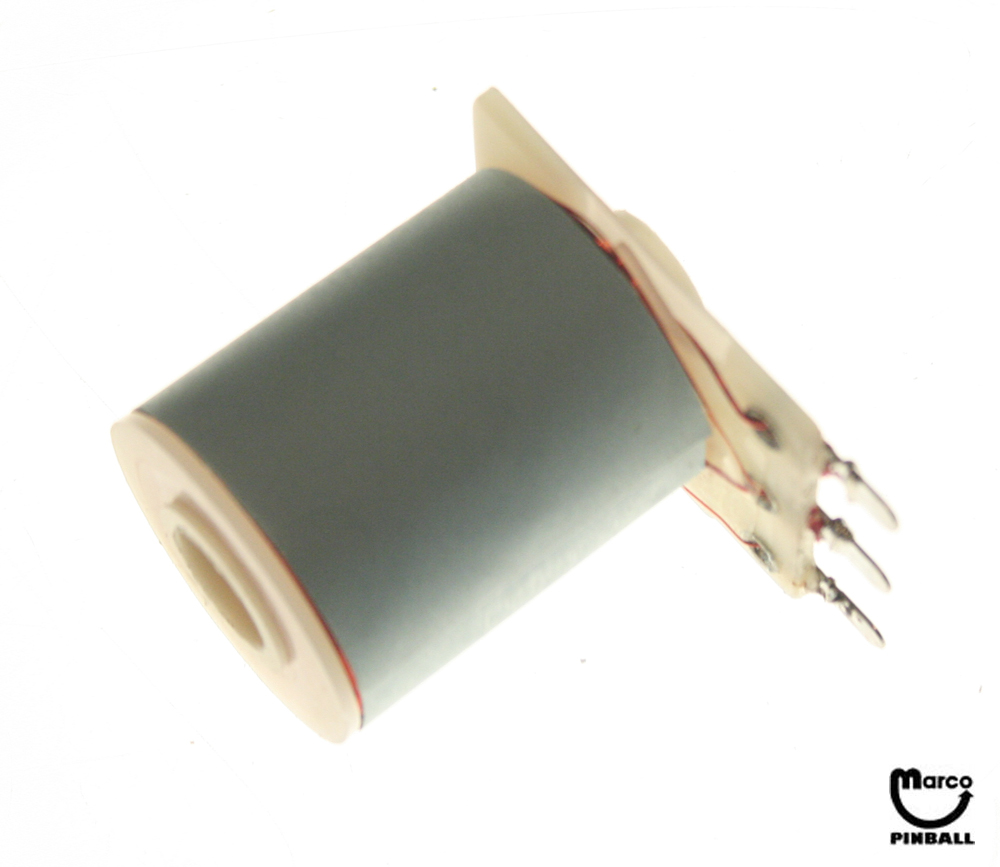

-Coil - flipper

#FL-25-930_31-60

3 terminal, dual winding flipper coil. FL-25-930/31-600 FL-25-31 All coils include new sleeves (c...

An error has occurred when reading existing sub-variable "BuynowInStock"; see cause exception! The type of the containing value was: extended_hash+method+string (org.apache.ofbiz.base.util.collections.ResourceBundleMapWrapper wrapped into f.e.b.MapModel) ---- FTL stack trace ("~" means nesting-related): - Failed at: ${uiLabelMap.BuynowInStock} [in template "component://msi/webapp/msi/catalog/ProductSummary_Resp.ftl" at line 35, column 17] ----

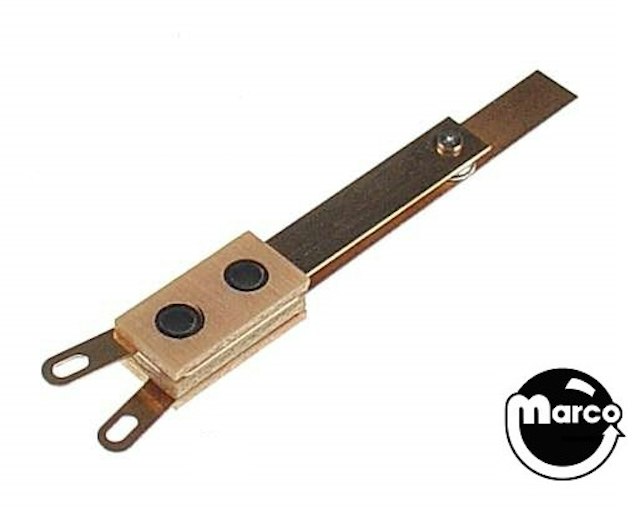

-Switch - flipper End of Stroke long
