STAR TREK 25th (DE) Titan™ Silicone Ring Kit BLUE
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
39 piece blue Titan™ competition silicone ring kit for Data East STAR TREK 25th pinball machine.
Includes blue Titan™ silicone o-rings and post rubbers, blue Titan™ silicone flipper bands and playfield placement diagram.
Reference:
TK1715-C
TK1715-B
These next generation rings are made from specially formulated silicone that provides a durable, easy to clean, vibrant replacement for standard pinball rubber. Titan™ Competition rings are resistant to UV light and less susceptible to drying and cracking, giving them a much longer lifespan than traditional rubber.
Important Notes:
When installing flipper rubber always "unload" the tip. This means after the rubber is on the flipper bat, pinch the rubber and push it towards the tip of the flipper bat to slack the tip of the rubber as much as possible. Stretch it towards the tip until you see a visible gap between the tip of the flipper bat and the rubber. It will also help to rotate all of the rings once a month or so depending on the playing time.
The same method can be applied to slingshot rubber as well. Just pre-stretch the ring a little bit, then put the rubber on the sling posts and then pull 2 different sides at a time, repeatedly. The object would be to make the tension across the three posts as even as possible. Also, check the post groove for sharp corners. Star posts and metal posts can have sharp edges on the grooves that cut the “skin” of the silicone ring, leading to early failure.
Select manufacturer to view game compatibility
Titan™ Silicone ring - Blue 3/16 inch ID
Titan™ Silicone ring - Blue 5/16 inch ID
Titan™ Silicone ring - Blue 1 inch ID
Blue silicone o-ring with 1-1/4 inches (31.8 mm) inner diameter.
Blue pinball silicone O-ring measures 1-1/2 inch (38 mm) Inner Diameter and 2 inch outer diameter
Blue silicone O ring with a 2-1/2 inch (63.5mm) inner diameter.

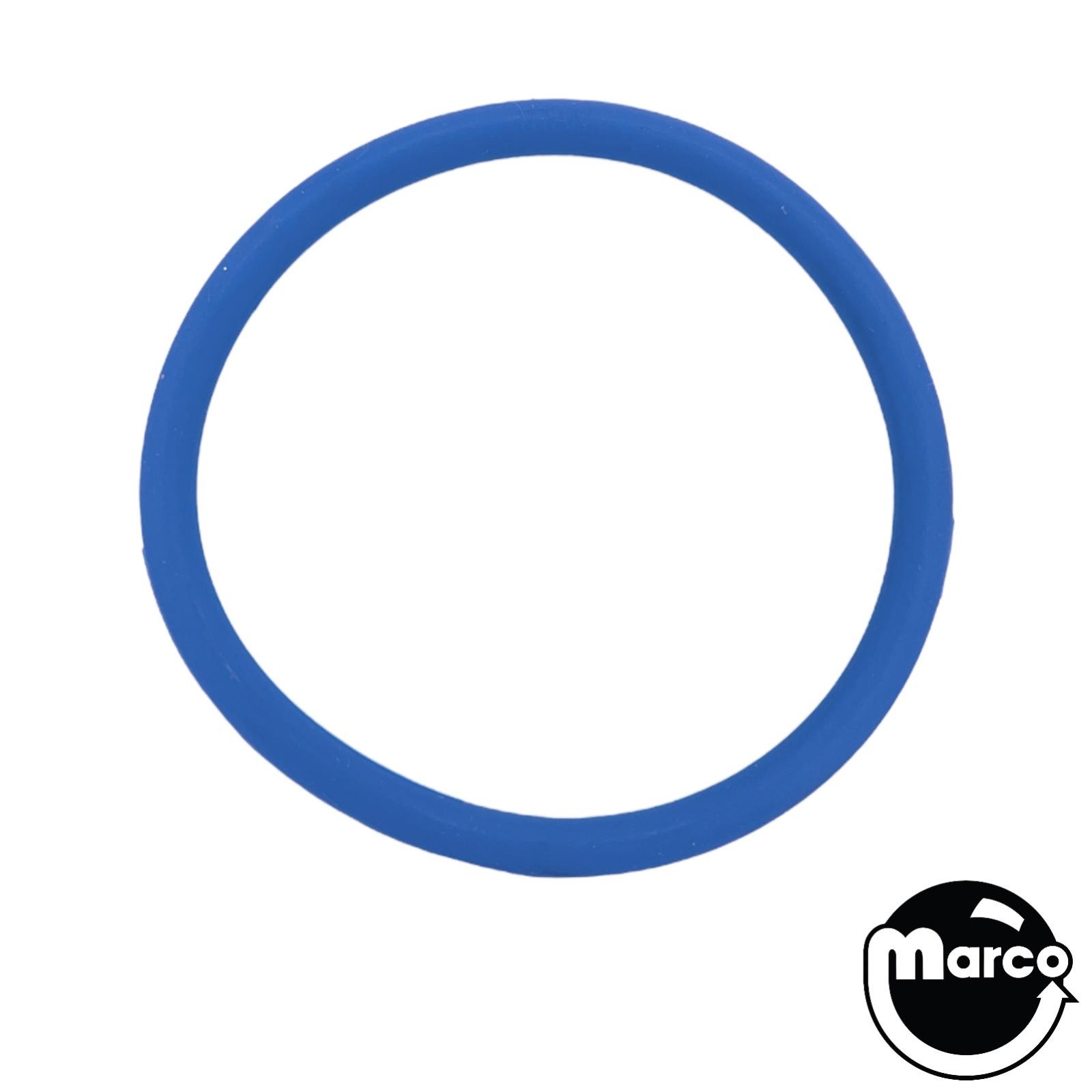

Blue silicone O-ring with 3 inch (80 mm) inner diameter.
1/2 tall x 3/8 inch Inner Diameter blue silicone bumper post sleeve

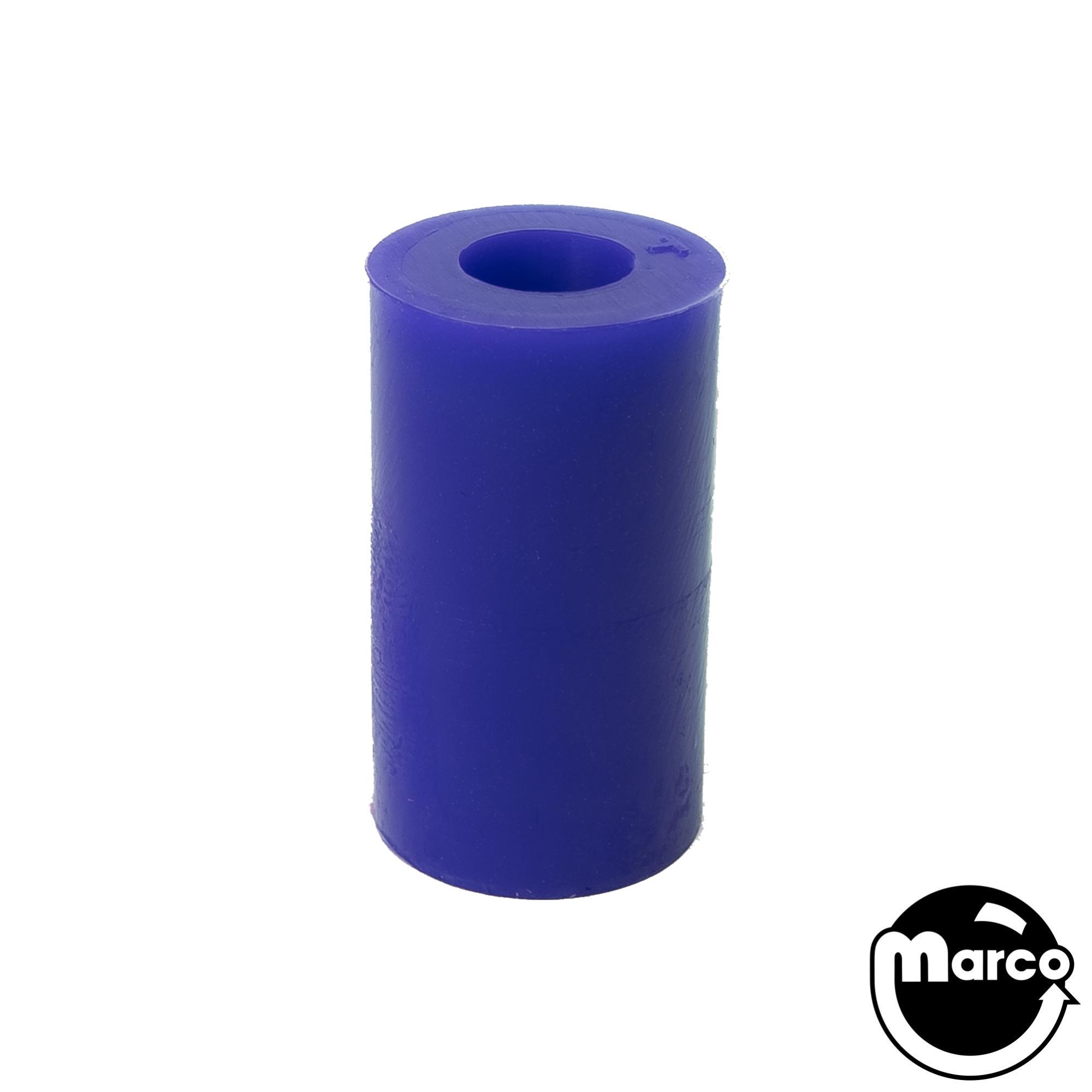

Blue silicone bumper post rubber sleeve is 1/4 Inner Diameter x 1/2 Outer Diameter x 7/8 inches high.
1/2 inch wide x 1-1/2 inch ID (inner diameter) standard blue silicone flipper band fits most flippers.
