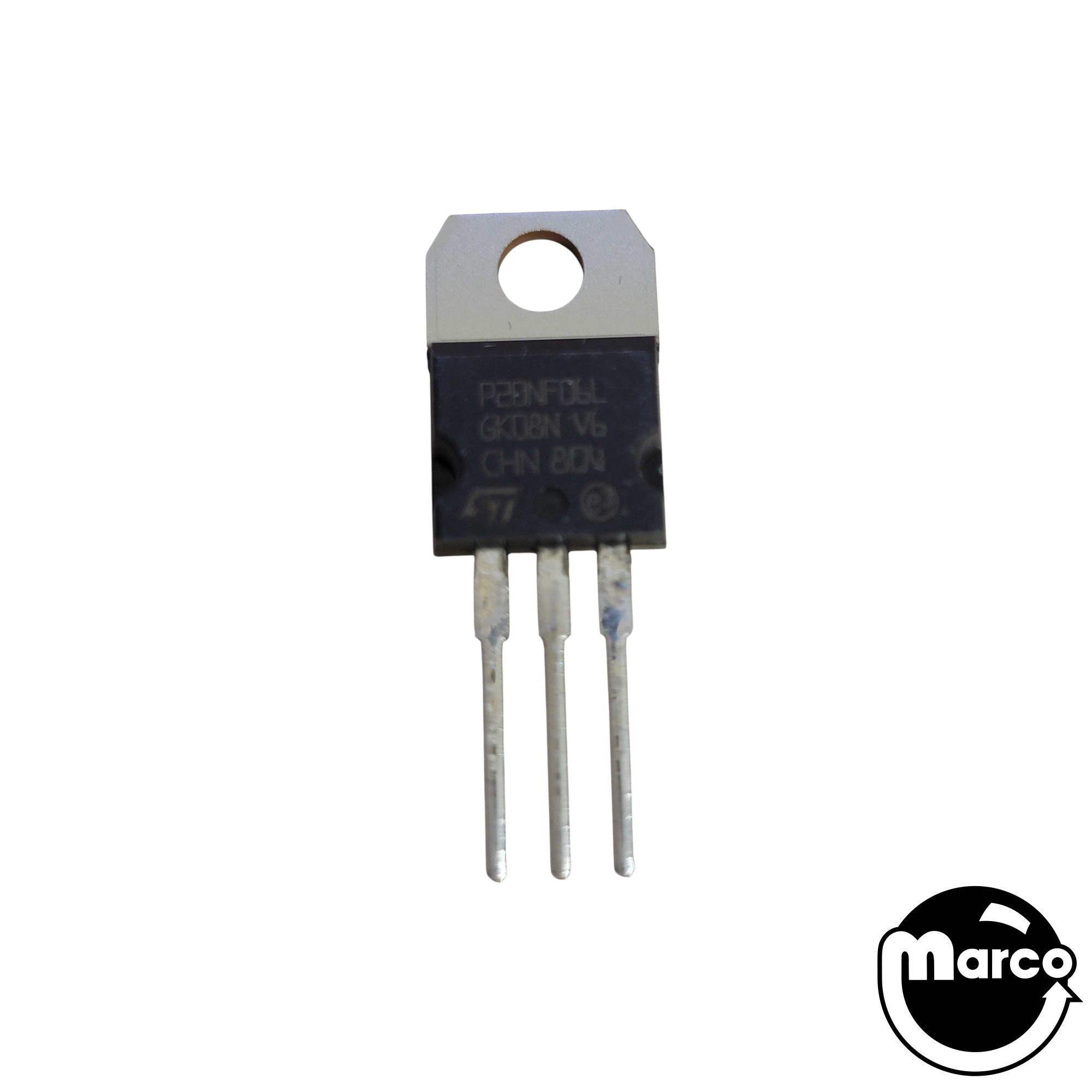

Transistor N Channel 100V 20A Mosfet TO-220

Name: Transistor N Channel 100V 20A Mosfet TO-220
SKU: STP20NF06L
Price: 2.49 USD
Availability: InStock

#STP20NF06LIn Stock

STP20NF06L Transistor 100V 20A Mosfet

$2.49

Quantity:

CALIFORNIA WARNING

This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

N-Channel enhanced low threshold power Mosfet transistor 100-Volt 20-Amp integrated circuit in TO-220 case.
Specifications: Type of STP20NF06L transistor: MOSFET Type of control channel: N-Channel Maximum power dissipation (Pd): 125W Maximum drain-source voltage (Uds): 100V Maximum drain-gate voltage (Udg): Maximum gate-source voltage (Ugs): 64nC @ 5V Maximum drain current (Id): 24A Maximum junction temperature (Tj): 150°C Rise Time of STP20NF06L transistor (tr): Drain-source Capacitance (Cd), pf: Maximum drain-source on-state resistance (Rds), Ohm: 77 mOhm @ 17A, 5V Case of STP20NF06L transistor: TO-220

Can be used to replace IRL540s in some cases, but does not have the same amperage rating. *NOTE: If your game requires a specific amperage rating for the transistor, use the recommended part in the manual.

Reference:

Data East / Sega / Stern 110-0106-00
Data East / Sega 110-0088-00

#STP20NF06L
