IC - 28 pin DIP .300 wide STK12C68-PF45 Non Volatile RAM
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

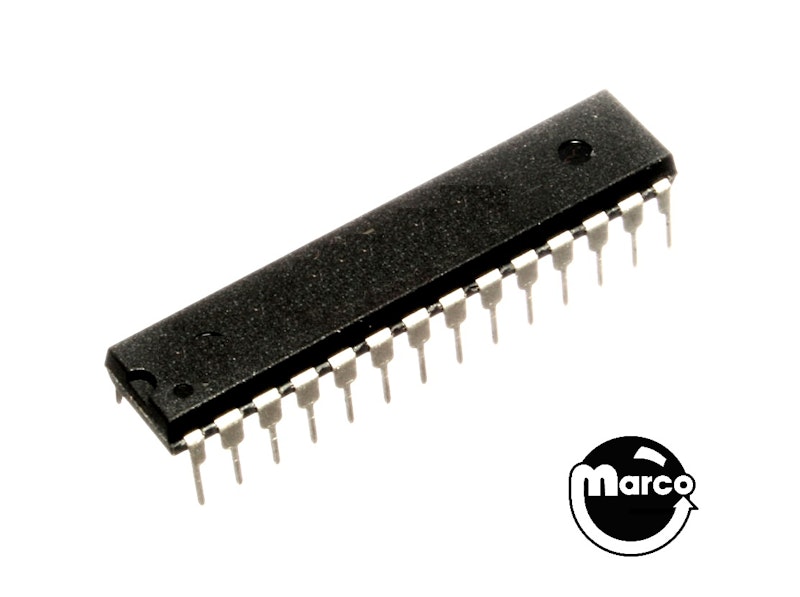

Integrated circuit 28 pin DIP .300 inch wide package STK12C68-PF45 Non Volatile RAM
The STK12C68-PF45 is an Autostore nvSRAM with a density of 64K organized as a 8K x 8. The device has a single 5 Volt power supply, a speed of 45 nanoseconds, comes in a 28 pin 300 mil lead free plastic DIP package and has commercial temperature specifications.
Reference:
STK12C68-W55
SYL12C68
STK12C68-W45I
IMPORTANT INSTALLATION NOTES
When used in the following systems, installation will require circuit board component level replacement tools and skills. If your current RAM is not socketed, first installing a 28 pin socket is strongly recommended.
Board modifications:
Sega or Stern -- the HSB pin number 26 needs to be removed.
Data East -- remove HSB pin number 26, and make a link between +5V and B+.
Williams -- some games use larger RAM circuits. To be able to use this NVRAM, add resistor 1.5k on R93, and remove O ohms resistor on W3.
Select manufacturer to view game compatibility
28 pin double wipe integrated circuit pcb socket. Replaces 5700-10176-00
IC Socket - 28 pins .3 inch wide
IC - 28 pin DIP .600 wide STK12C68 non volatile RAM
Solder - Pocket Dispenser 14 gram tube 60/40 tin/lead
Solder flux pen
6-1/2 inch Titanium Soldering Pick
Safety Glasses
