PINSCORE Display set (2) Bally 6803

#PS-6803-P

NEW! PINSCORE Display Systems!



Brilliant design makes brilliant displays. New PINSCORE LED (Light Emitting Diodes) displays for pinball machines are the best performing, most feature-packed and economical replacement systems for obsolete glass plasma digital displays.

These 14 digit Bally displays have been unavailable for many years until now.

This PINSCORE Model PS-6803-P Display System is a 2 display board set of 14 digit alphanumeric LEDs that fits the following Bally pinball machines that use the 6803 microprocessor system:


  • ATLANTIS (Bally)
  • BLACK BELT
  • BLACKWATER 100
  • CITY SLICKER
  • DUNGEONS & DRAGONS
  • ESCAPE FROM THE LOST WORLD
  • HARDBODY
  • HEAVY METAL MELTDOWN
  • MOTORDOME
  • PARTY ANIMAL
  • SPECIAL FORCE
  • STRANGE SCIENCE
  • TRUCK STOP




    Features:
  • Plug & Play installation - no soldering required
  • Interchangeable left & right side displays
  • Adjustable brightness
  • Low power consumption uses only 5 volt power and no high voltage
  • Beautiful black matte finish
  • Foam light shields prevent general illumination leakage glare
  • Crisp alpha and numeric digits illuminate in original font and color
  • 2 year warranty
  • Assembled in USA






    INSTALLATION INSTRUCTIONS



    INSTALLATION TIME: About 20 minutes

    TOOLS REQUIRED: 1/4” Nutdriver, Phillips screwdriver

    CONTENTS: This system contains:

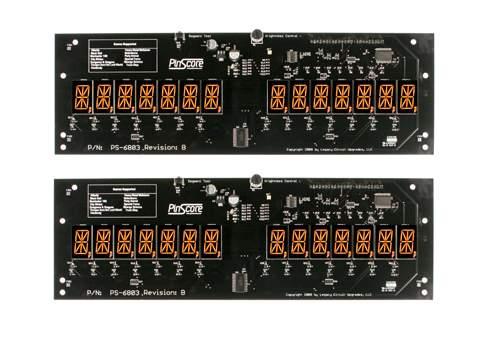

  • Quantity (2) PS-6803 PINSCORE Driver/Display Boards
  • Quantity (4) PS-LS-7 Foam light shields (pre-assembled)



    INSTALLATION:
  • 1. Unplug the AC power from your pinball machine. Remove game backglass. Unplug all display board connecting cables and remove the 2 original glass display circuit boards.
  • 2. Mount both new boards in the backbox. The boards are identical and interchangeable for left or right side mounting. If not already in place, attach the foam light shields on their respective LED displays.
  • 3. Connect the cables.
  • 4. Double-check all connections, plug in the machine, and turn the game on. The LED’s will light up. Pressing the DIAGNOSTIC pushbutton on the PS-6803-P boards will illuminate all segments of all displays. This indicates that all boards and cables in the PINSCORE System are operating correctly. Use the thumbwheel BRIGHTNESS control on the board to set your preferred illumination level.
  • 5. PLAY PINBALL! You’ll enjoy your PINSCORE Displays for years to come!



    Reference:
  • A084-91851-H000
  • M051-00364-H033

1.54 lb

$249.00

In Stock
