LED score displays for FUNHOUSE and BRIDE OF PINBOT (Williams).
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

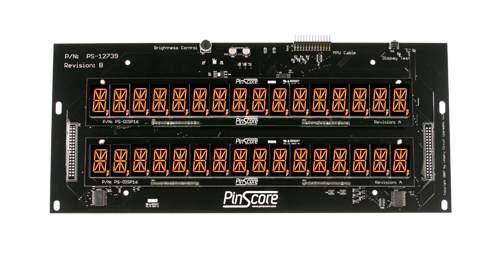

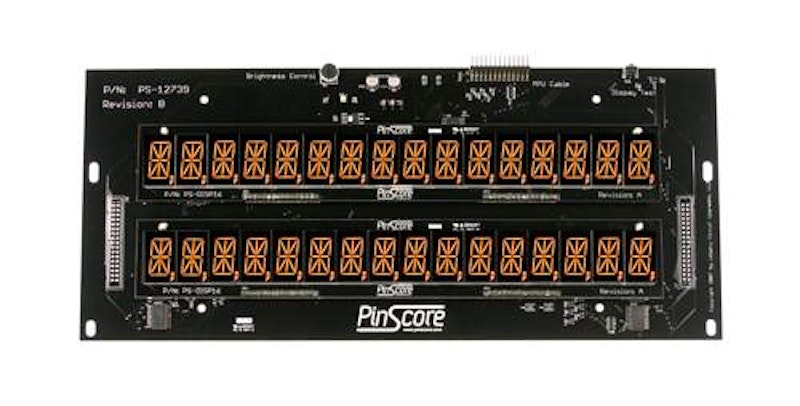

PINSCORE Display Systems!
Brilliant design makes brilliant displays. PINSCORE LED displays for pinball machines are the best performing, most feature-packed and economical replacement systems for obsolete glass plasma digital displays.
This PINSCORE System model PS-12739-P will work in the following Williams pinball machines:
THE MACHINE BRIDE OF PINBOT
FUNHOUSE
Features:
20 minute plug & play installation
Adjustable brightness
Diagnostic pushbutton
Beautiful black matte finish segments and boards
Foam light shields prevent glare from surrounding general illumination
Crisp alpha-numeric digits illuminate in original font & color
2 year warranty
Built in USA
RoHS compliant
INSTALLATION INSTRUCTIONS:
INSTALLATION TIME: About 20 minutes
TOOLS REQUIRED: Phillips screwdriver
Unplug the AC power from your pinball machine. Remove game backglass and open the backbox insert door. Remove the speaker/display panel and unplug all display boards. Remove the original display and driver boards.
Mount the new board. Install the foam light shields around the displays if not already in place. Hand-tighten the screws so you may align the displays with the backglass windows before permanently securing the boards. If further alignment is necessary, adjust the insert panel door hinges and latch in the backbox.
Connect the cables. The ribbon cable goes to the connector labeled MPU Cable. The power connectors, J100 and J101, are keyed to prevent incorrect alignment. Ribbon cables are not keyed and it is possible to mis-align the connectors. Observe correct polarity on all ribbon cables - the RED striped wires on all ribbon cables go to PIN #1 (also labeled as Red) on the board.
Double-check all connections, plug in the machine, and turn the game on. There are three indicator LED’s to the left of the Brightness Control labeled D1, D2,D3. D1 will flash momentarily upon power-up and D2 and D3 will stay lit indicating that the power supply is working correctly. The PS-DISP16 alphanumeric LED’s will light up. Pressing the diagnostic pushbutton labeled SW1/Display Test on the PS-12739 board will illuminate all segments of all displays. This indicates that all components of the PinScore System are operating correctly. The thumbwheel labeled Brightness Control allows you to set your preferred illumination level.
Reference:
PS-12739-P
UDN7180A
A-12739-1
A-12793
5760-12448-00
5670-12308-00
5764-12432-00
Select manufacturer to view game compatibility
Used in WPC pinball machines.
51 piece blue Titan™ competition silicone ring kit for Williams FUNHOUSE pinball machine.

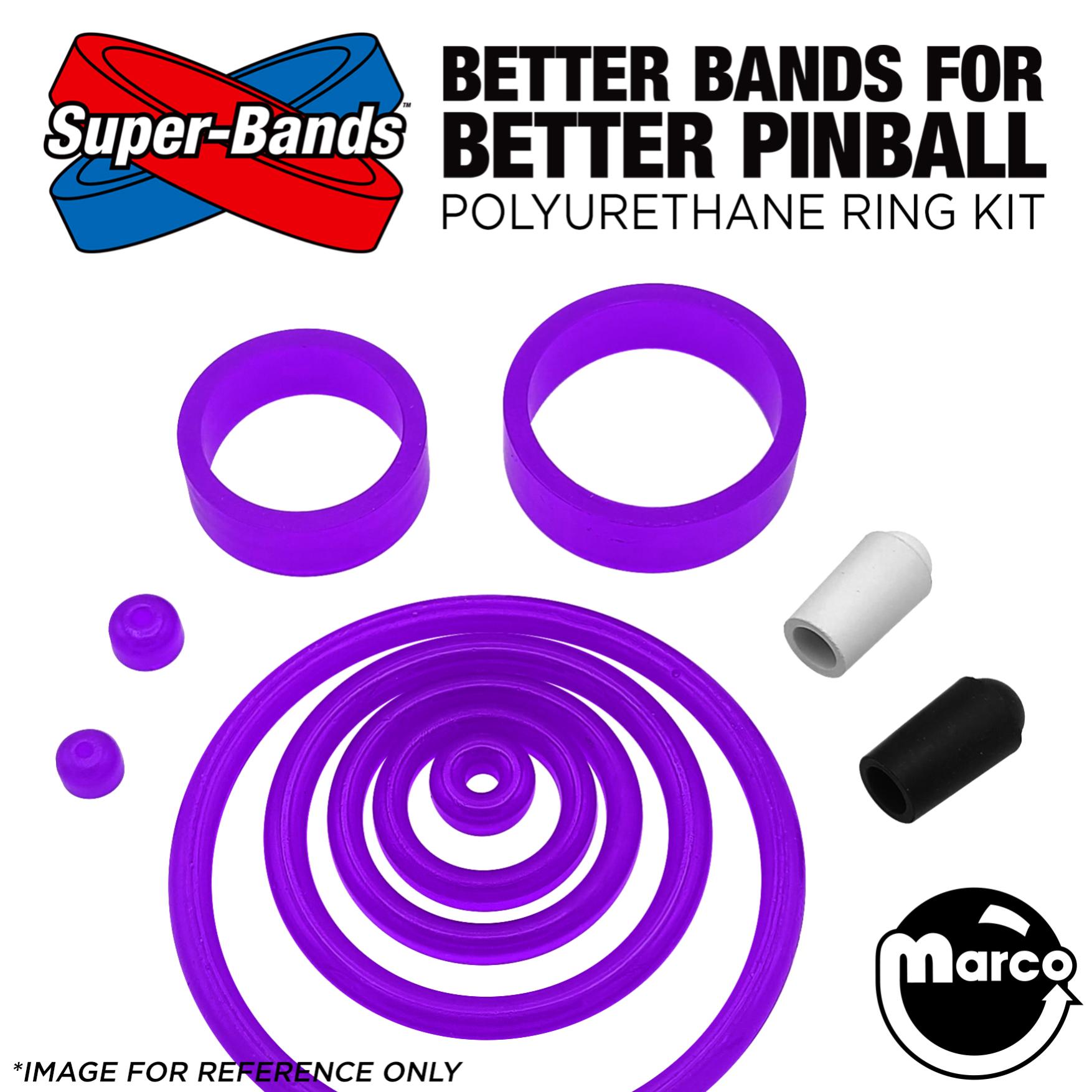

50 piece purple polyurethane ring kit for Williams THE MACHINE: BRIDE OF PINBOT pinball machine includes...
