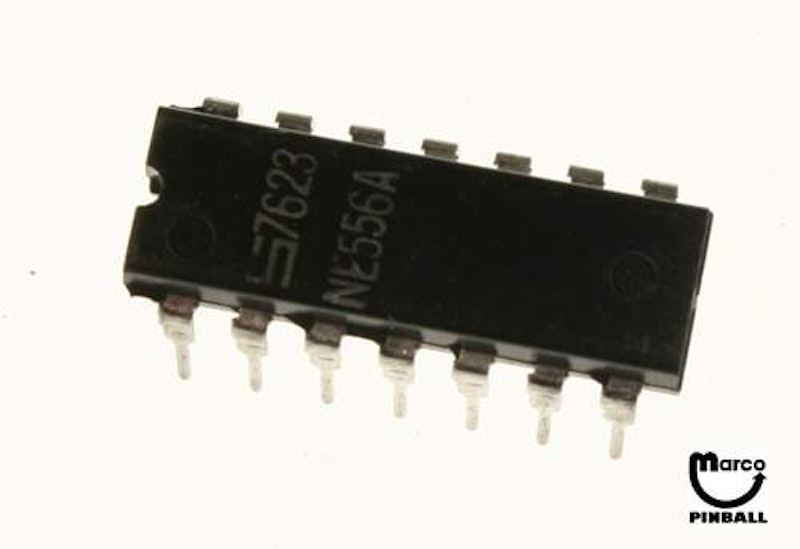

IC -14 pin DIP Dual Timer

NE556 series 16V 500KHz through-hole general purpose dual bipolar timer in a DIP 14 pin package.

Package/Case: 14-DIP

• Direct replacement for SE556/NE556

• Timing from microseconds through hours

• Operates in both astable and monostable modes

• Replaces two 555 timers

• Adjustable duty cycle

• Output can source or sink 200mA

• Output and supply TTL compatible

• Temperature stability better than 0.005% per ˚C

• Normally on and normally off output

Reference:

• NE556

• NE556N

• TS556IN

• SE556

• NE556

• LM556

• Replaces DM86L93N

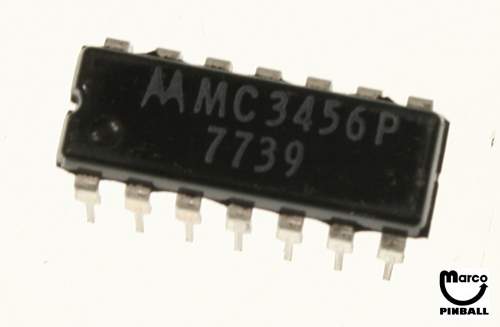

• Suitable substitute for MC3456

• Taito 15-50556-001
