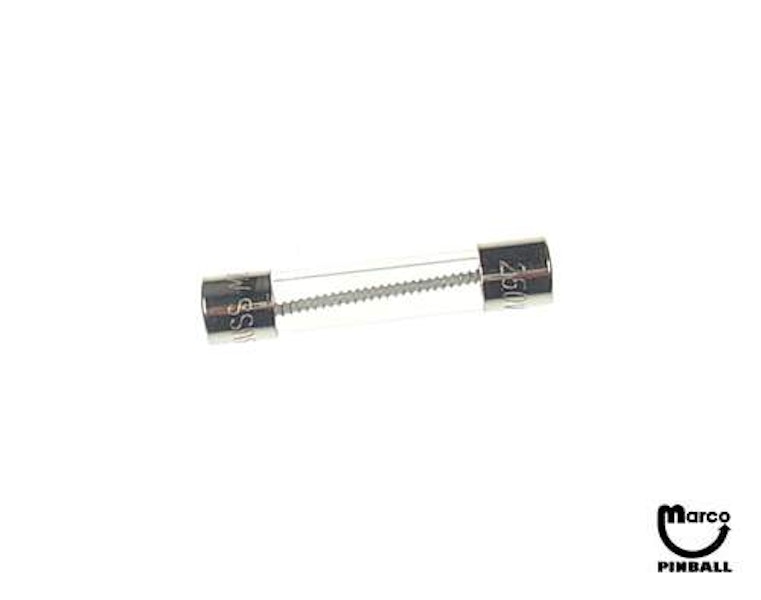

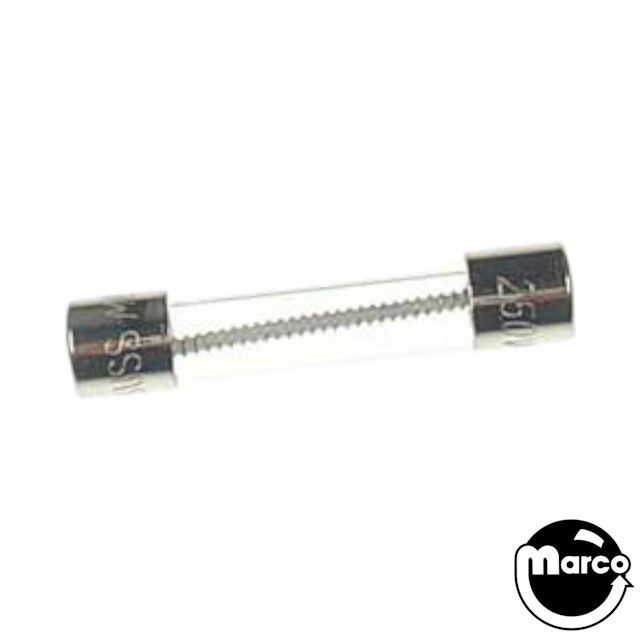

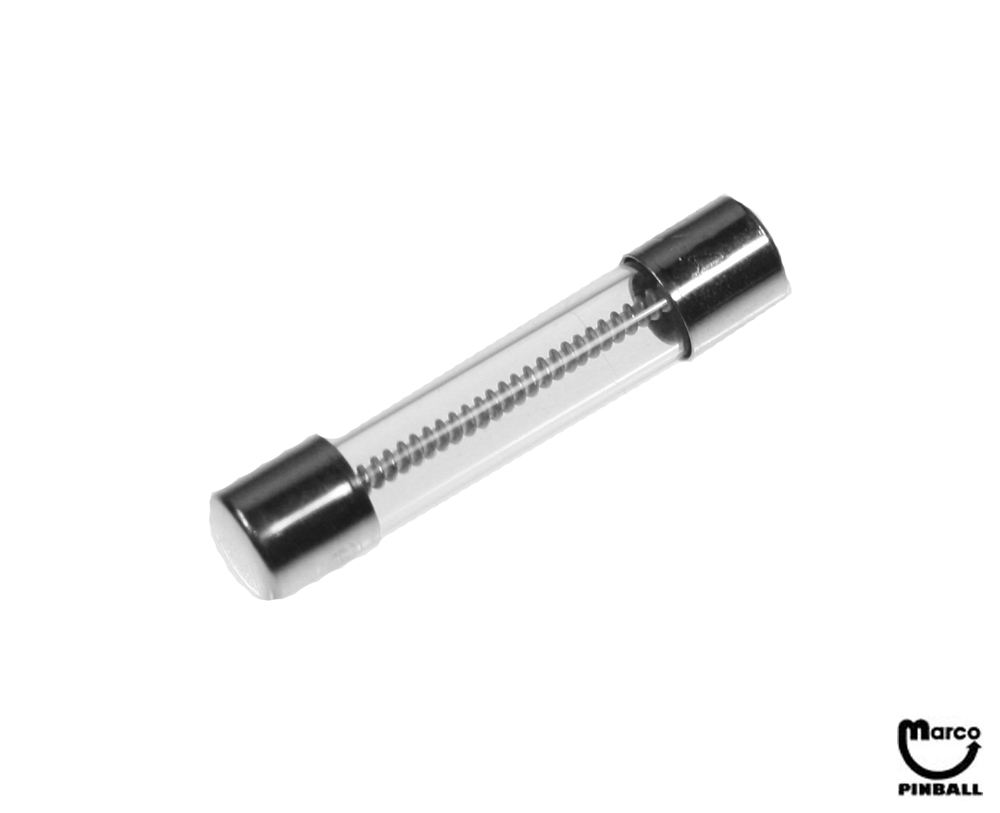

FUSE - SLOW BLOW 4 amp 250 V (6.3x32mm) - Box of 5
All slow blow (standard type) fuses have the following electrical characteristics:
| AMP RATING | BLOW TIME |
|---|---|
| 210% | 200 sec. min./10 sec. max. |
| 400% | 40 ms. min./3 sec. max. |
| 1000% | 10 ms. min./300 ms. max. |
The voltage rating on fuses is the maximum voltage at which a fuse is designed to operate. Exceeding the voltage rating of a fuse impairs its ability to clear an overload or short circuit safely. A fuse may be used at any voltage below the fuse voltage rating; a 250V fuse may be used in 125V circuits. 250 volt fuses exceed all pinball machine operating requirements.
Reference:
- MDL-4
- Williams 5731-06314-00
- 5A-6314
- 200-5000-06
- EL-33
0.25
oz
