Standoff - circuit board nylon 5/32 inch holes

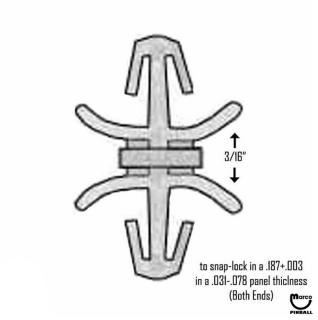

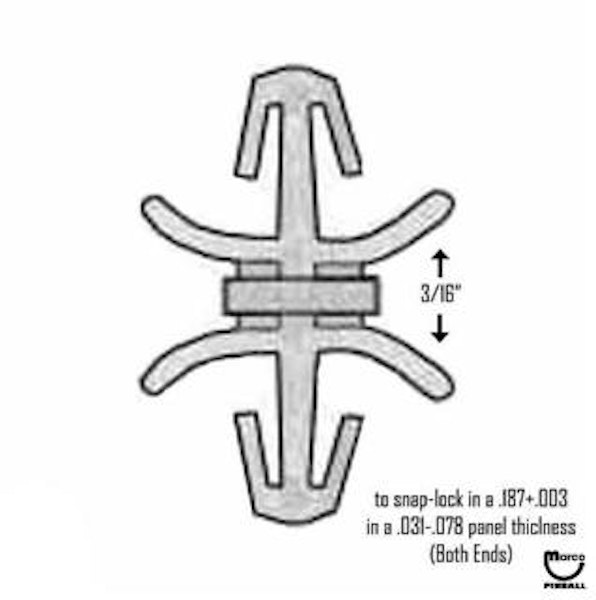

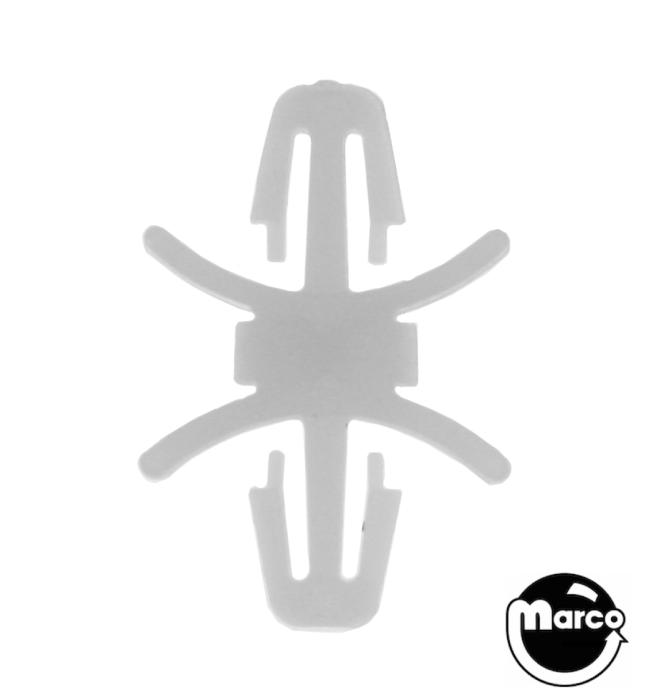

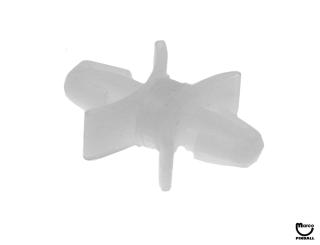

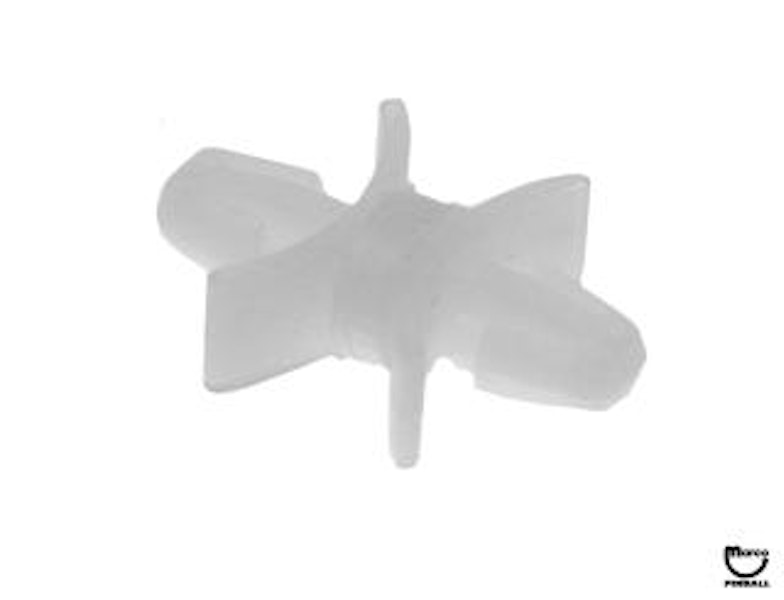

Arrowhead, snap-lock, winged circuit board stand-off. Dual locking nylon.

Dimensions:

• length: 0.843" (21.41mm)

• between board height: 0.19" (4.8mm) 3/16"

• support hole diameter: 0.156" (4.75mm) 3/16"

• support panel thickness: 0.031 ~ 0.078" (0.79 ~ 1.98mm)

• mounting hole diameter: 0.156" (4.75mm) 3/16"

• mounting panel thickness: 0.031 ~ 0.078" (0.79 ~ 1.98mm)

• Reference:

  • DLCBS-3-19
