IC - 14 pin DIP audio amp
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

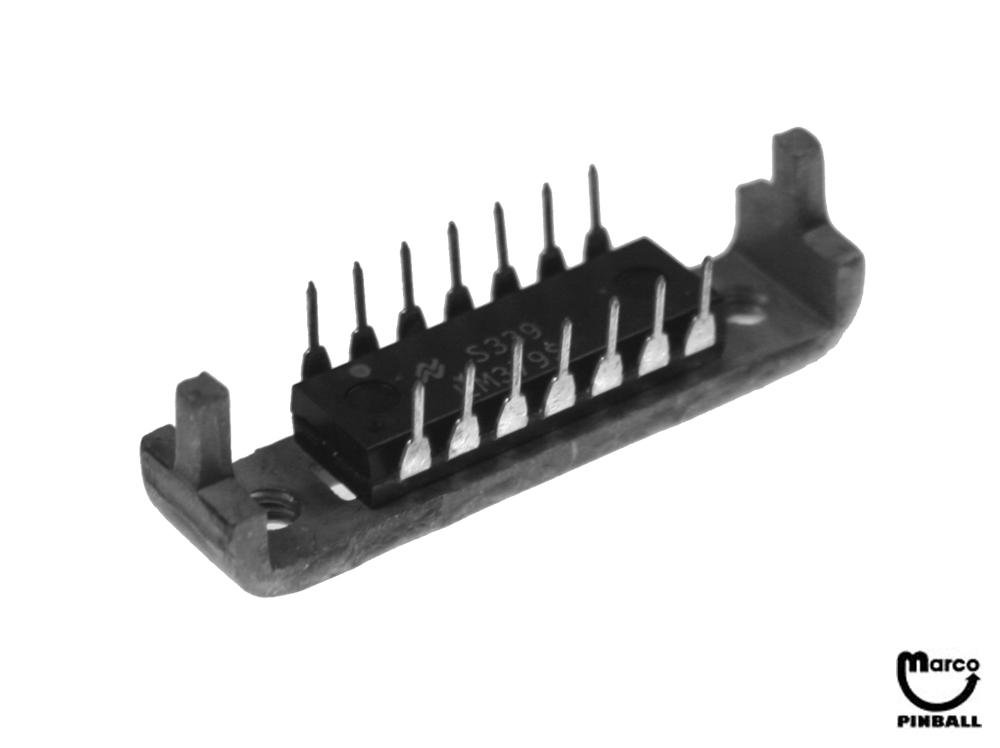

Integrated Circuit 14 pin audio amp with attached heat sink in a TO-263 package.
Used on Gottlieb® System 80 pinball machine sound boards and Gottlieb video games such as Qbert, Qberts Qubes, Three Stooges, Krull, Mad Planets, Reactor.
Specifications:
Output Power Min. : 6.0
@R(load) (Ohms) : 8.0
Upper 3dB Frequency (Hz) : 30k
AV (dB) Min. : 66
Input Resistance Min. (Ohms) : 3.0M
THD Max. (%) : 200m
Quies. Power (W) : 1.8
Nom. Supply (V) : 28
Minimum Operating Temp (шC) : 0
Maximum Operating Temp (шC) : 70
Package Style : DIP
Mounting Style : T
No. Pins : 14
Reference:
LM379S
XO-395
XO395
Select manufacturer to view game compatibility

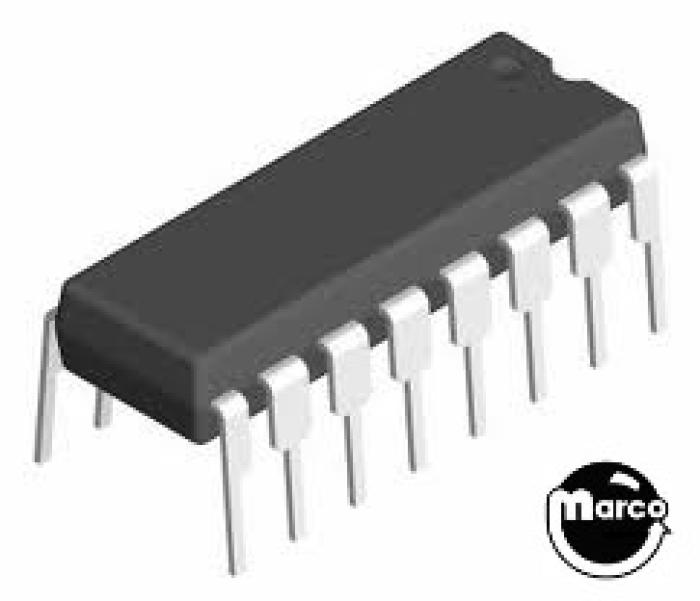

USE CA3081-TAR
IC - 28 pin DIP TMS5200NL sound generator E-620-167
IC - 14 pin DIP 55536 CVSD 5370-09691-00

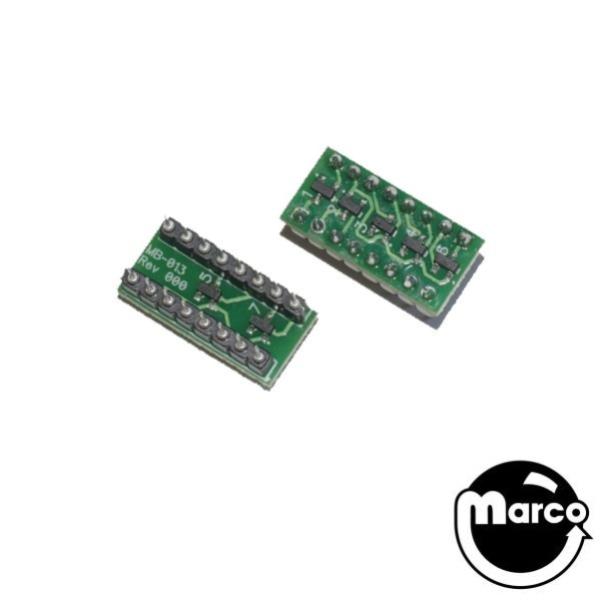

Replacement IC board, sized to fit in place of the obsolete, and increasingly hard to find, CA3081 transistor array...
