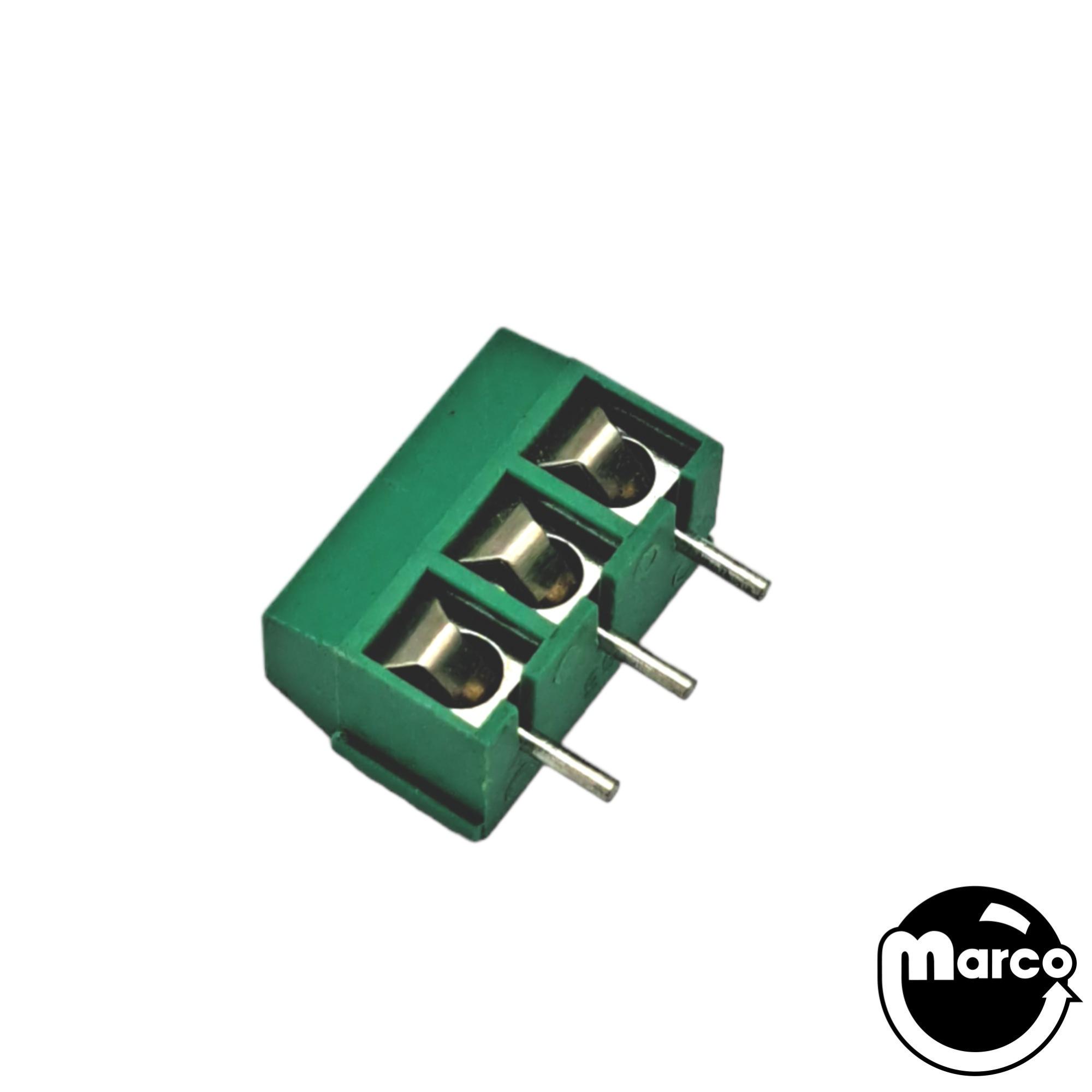

3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
KF301 is a 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector used to connect wires to a PCB. The connector has a screw in each pin to fasten the wire. Used on various Swemmer pinball boards.
Specifications:
Style: Through hole
Number of Positions: 3
Pitch: 5.08mm
Row Spacing: 2.5mm
Termination: Screw
Wire Gauges: 16 AWG - 24 AWG
Voltage: 220V
Max Current: 16A
Reference:
KF301
Weight: 0.5 oz
