20 piece rebuild kit of electronic components for Gottlieb System 3.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

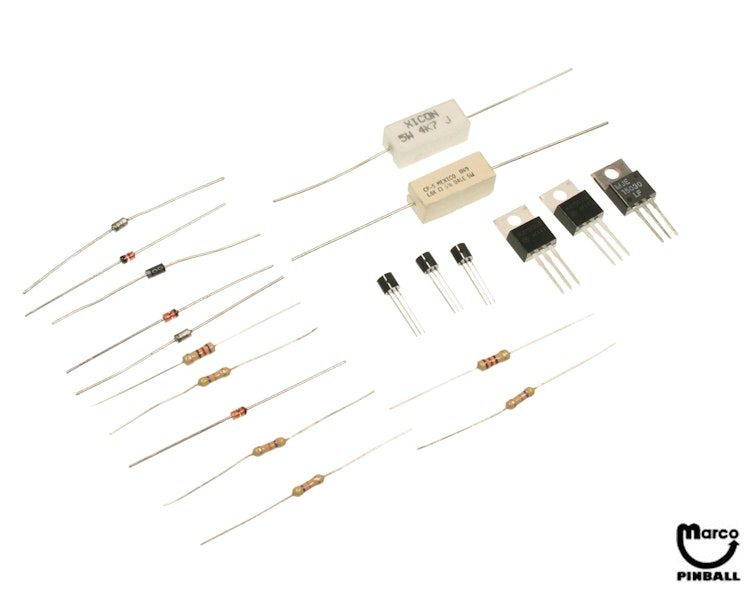

20 piece rebuild kit of electronic components for a "shotgun" repair of Gottlieb System 3 pinball machine Dot Matrix Controller boards.
Kit includes:
1N4759A - Diode - Zener 62v 1 watt x1
1N4758A - Diode - Zener 56v 1 watt x2
2N5551 - Transistor NPN 160v 0.6a x2
1N4004 - Diode - 400 volts 1 amp x1
1N4002 - Diode - 100 volts 1 amp x1
1N4742A - Diode - Zener 12v 1 watt x2
MJE15030 - Transistor NPN 150v 8a x2
MJE15031 - Transistor 8A 150v 50w x1
2N5401 - Transistor PNP 150v 600ma x2
2N6028 - Transistor 40v 300mw programmable x2
R05W47K - Resistor - 47K ohm 1/2 watt x4
R05W120 - Resistor - 120 ohms 1/2 watt x2
R5W4.7K - Resistor 4.7K ohm 5 watt x1
R5W1.8K - Resistor - 1.8K ohm 5 watt x`
Reference:
GTB-SEMI-DMC3
Select manufacturer to view game compatibility
Zener diode 56 volt 1 amp Reference: 5075-12823-00
Transistor NPN 160V 0.6A 3-Pin TO-92 XO-313
Diode - 400 volts 1 amp XO-254

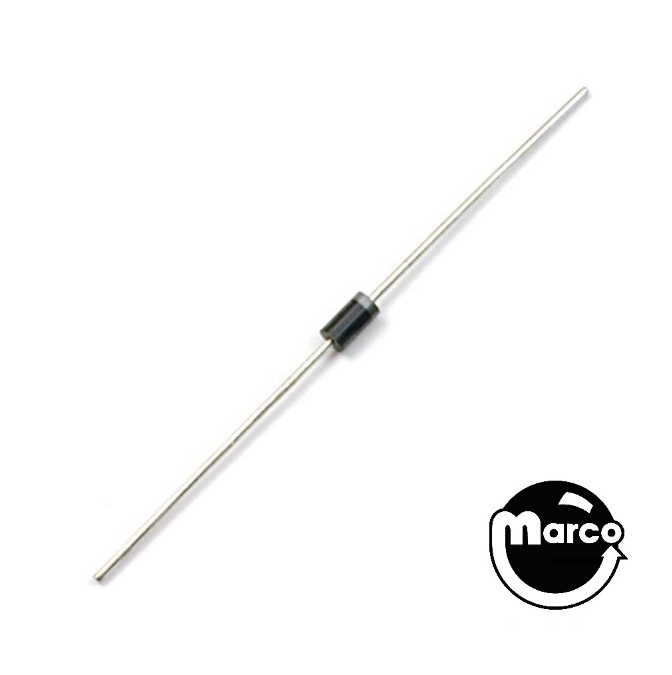

Diode - Zener 12v 1 watt
NPN complementary silicon plastic power transistor in a TO-220AB case. XO-1143

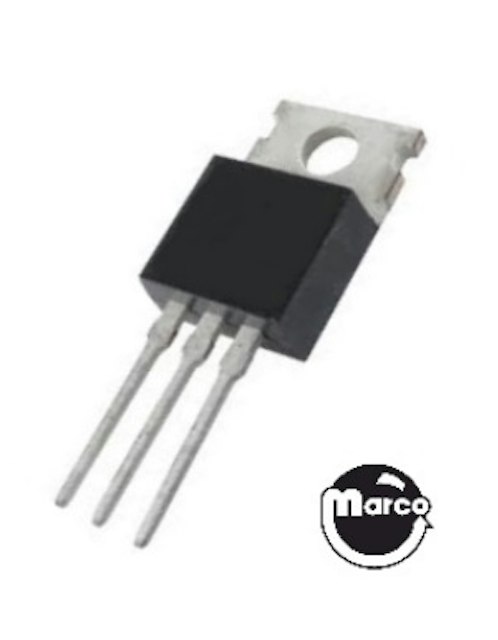

Transistor PWR PNP 8A 150V TO220AB case Reference: Williams 5194-1...

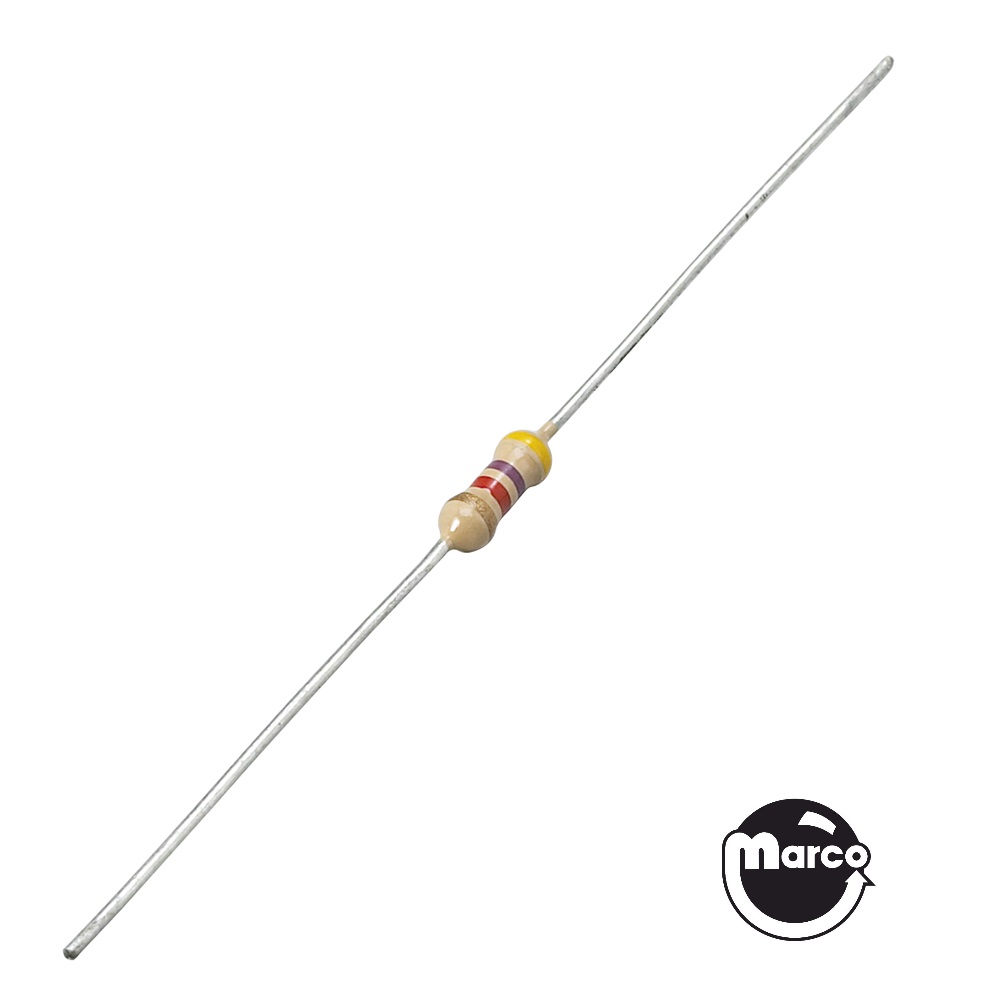

Resistor - 47,000 ohm 1/2 watt
Resistor - 120 ohms 1/2 watt 5010-12841-00

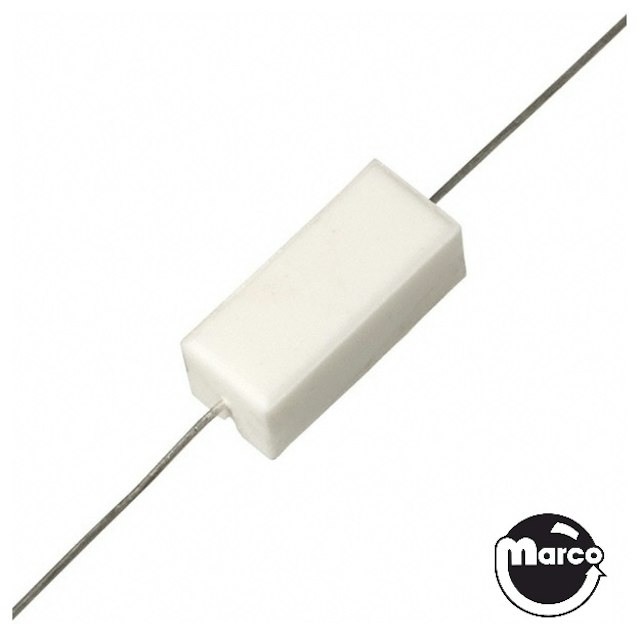

Resistor - 1800 ohms 5 watt 5012-12830-00

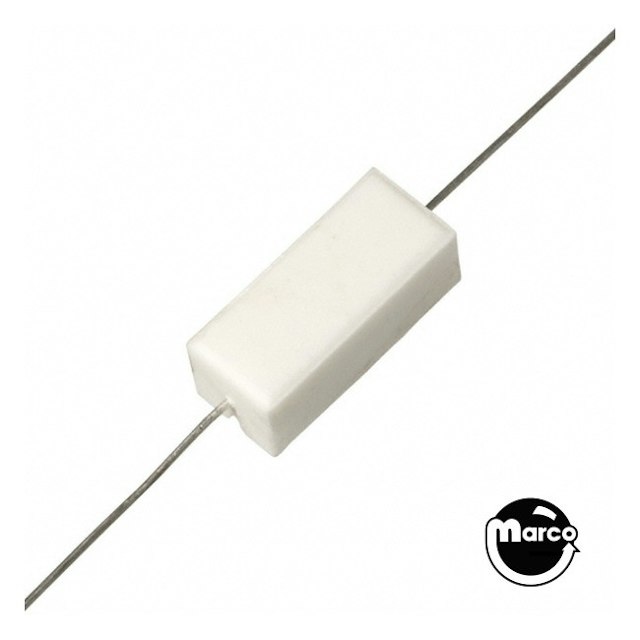

Resistor - 4.7K ohm 5 watt. Reference: R5W4.7K

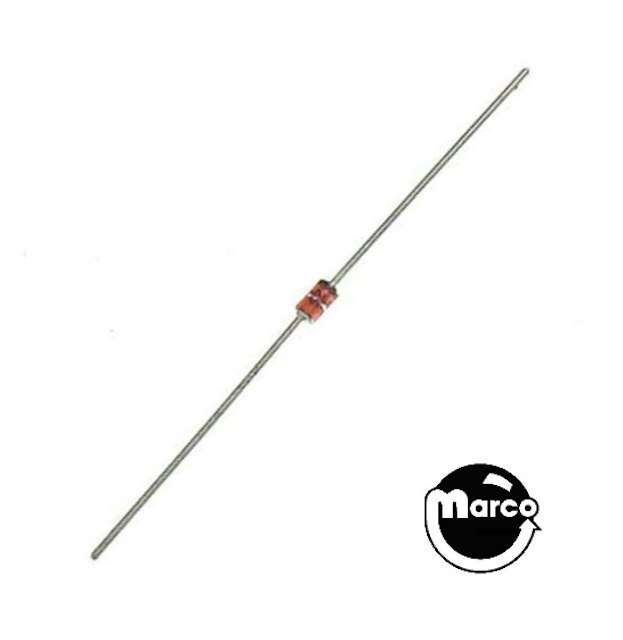

Zener diode 62 volt 1 watt Reference: 5075-12826-00
